Application
The Quick Start Guide is to be used as a reference only. Installation is to be performed by qualified heating and air conditioning professionals in accordance
with the Installation Manual provided with the dehumidifier.

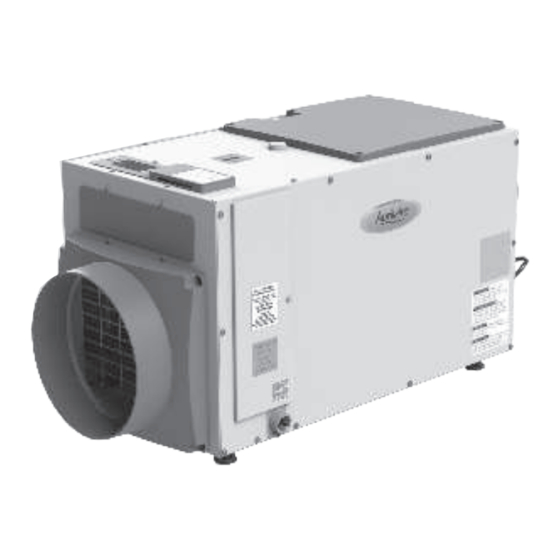

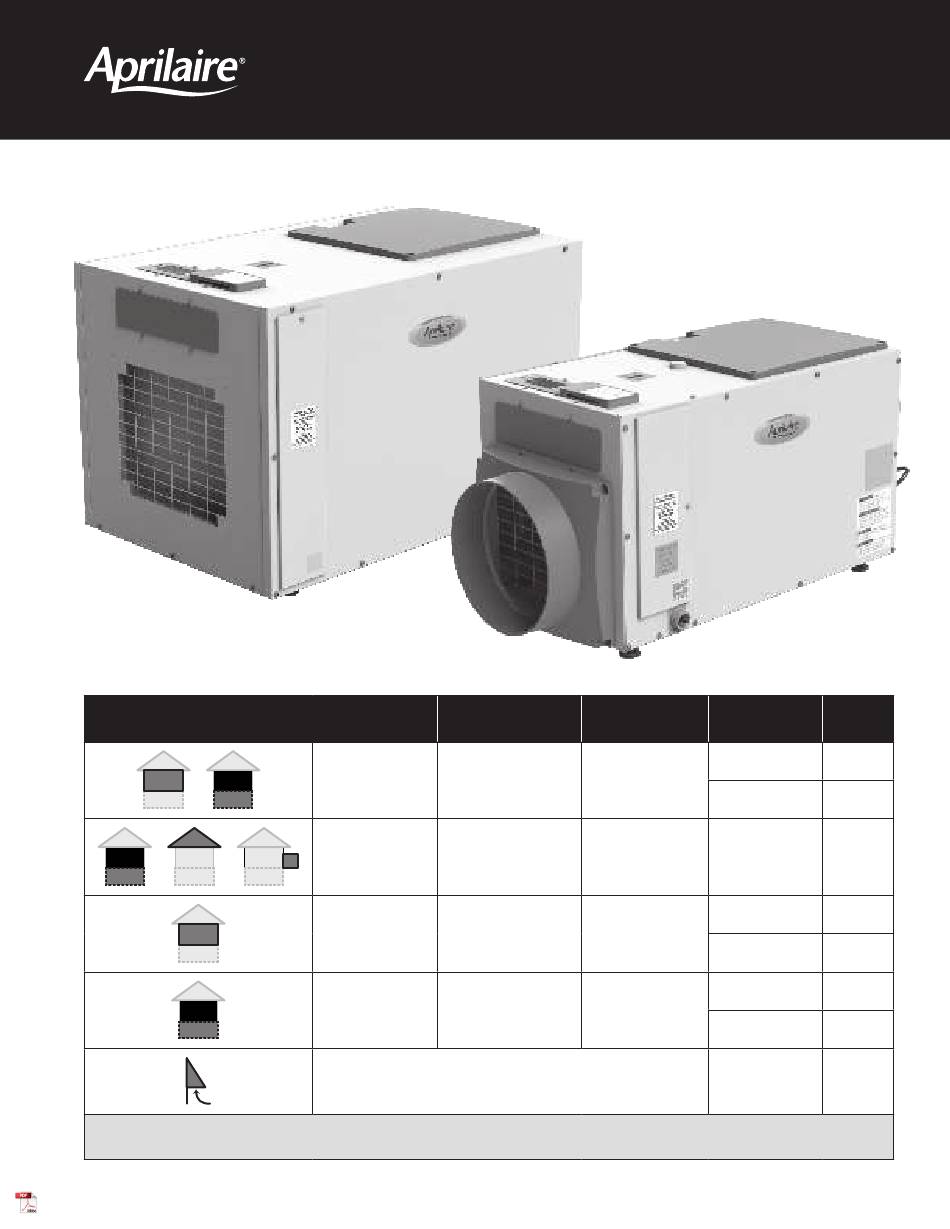

Model E080/E100/E130 Dehumidifier
Quick Start Guide
Primary Zone
to Dehumidify
Whole House or
Single Zone
Remote Control
Crawlspace, Sealed Attic,
(Single Zone)
Storage, Basement
Two Zone
(Not recommended in HVAC
zoning applications)
Two Zone
(Not recommended in HVAC
zoning applications)
Using the Ventilation Feature
Secondary Zone
to Dehumidify
N/A
Basement
N/A
Whole house
Basement
Basement
Whole house
Sheet
Control Type
Number
Internal
1
External
2
Remote – Model 76
3
in the living space
Internal
4
External in Primary
5
Internal
4
External in Primary
5
6
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aprilaire E080
Summary of Contents for Aprilaire E080
- Page 1 Model E080/E100/E130 Dehumidifier Quick Start Guide Primary Zone Secondary Zone Sheet Application to Dehumidify to Dehumidify Control Type Number Internal Whole House or Single Zone Basement External Remote Control Crawlspace, Sealed Attic, Remote – Model 76 (Single Zone) Storage, Basement in the living space ...
-
Page 2: Parts Needed
SHEET 1 – SINGLE ZONE USING INTERNAL CONTROL PARTS NEEDED (ADDITIONAL PARTS MAY BE REQUIRED) FIGURE 1 – DEHUMIDIFIER DUCTED TO HVAC SYSTEM • Model E080/E100/E130 • Insulated duct MAIN RETURN TO MAIN RETURN – RECOMMENDED • Duct fittings & hardware... -
Page 3: External Control
Control, Model 8620 Thermostat or Model 8910 Home Comfort Control) must have a normally open (NO – all Aprilaire controls are normally open type) or normally closed (NC) dry contact output, and must be installed in the space that is going to be dehumidified. Select the type of control using the NO/NC dip switch on the dehumidifier control. - Page 4 SHEET 3 – REMOTE CONTROL USING MODEL 76 CONTROL PARTS NEEDED (ADDITIONAL PARTS MAY BE REQUIRED) FIGURE 1 – DEHUMIDIFIER DUCTED DIRECTLY • Model E080/E100/E130 DEDICATED RETURN TO DEDICATED SUPPLY • Model 76 Dehumidifier Control • Insulated duct • Thermostat wire •...
- Page 5 Note: Dehumidifier zoning is not recommended in zoned HVAC applications. PARTS NEEDED (ADDITIONAL PARTS MAY BE REQUIRED) • Model E080/E100/E130 • 20A outlet (E130 only) • 5442 Damper Kit (includes: 2 – 10" dia N.O. dampers, 2 – 10" dia N.C. dampers and one •...
- Page 6 Note: Dehumidifier zoning is not recommended in zoned HVAC applications. PARTS NEEDED (ADDITIONAL PARTS MAY BE REQUIRED) • Model E080/E100/E130 • Duct fittings & hardware • 5442 Damper Kit (includes: 2 - 10" dia N.O. dampers, 2 -10" dia N.C. dampers and one •...
- Page 7 SHEET 6 – USING THE VENTILATION FEATURE OF THE DEHUMIDIFIER PARTS NEEDED (ADDITIONAL VENTILATION WIRING FIGURE 1 – VENTILATION DUCT LOCATION PARTS MAY BE REQUIRED) EXISTING WIRE FLOAT • Model 6506 damper SWITCH DH DH NEW WIRE • Model 8052 Outdoor SENSOR ODT SENSOR Temperature Sensor (optional)
- Page 8 AprilairePartners.com P.O. Box 1467 Madison, WI 53701-1467 800.334.6011 F: 608.257.4357 Printed in USA ©2020 Aprilaire – Division of Research Products Corporation 10015107 B2209060A 11.20...
