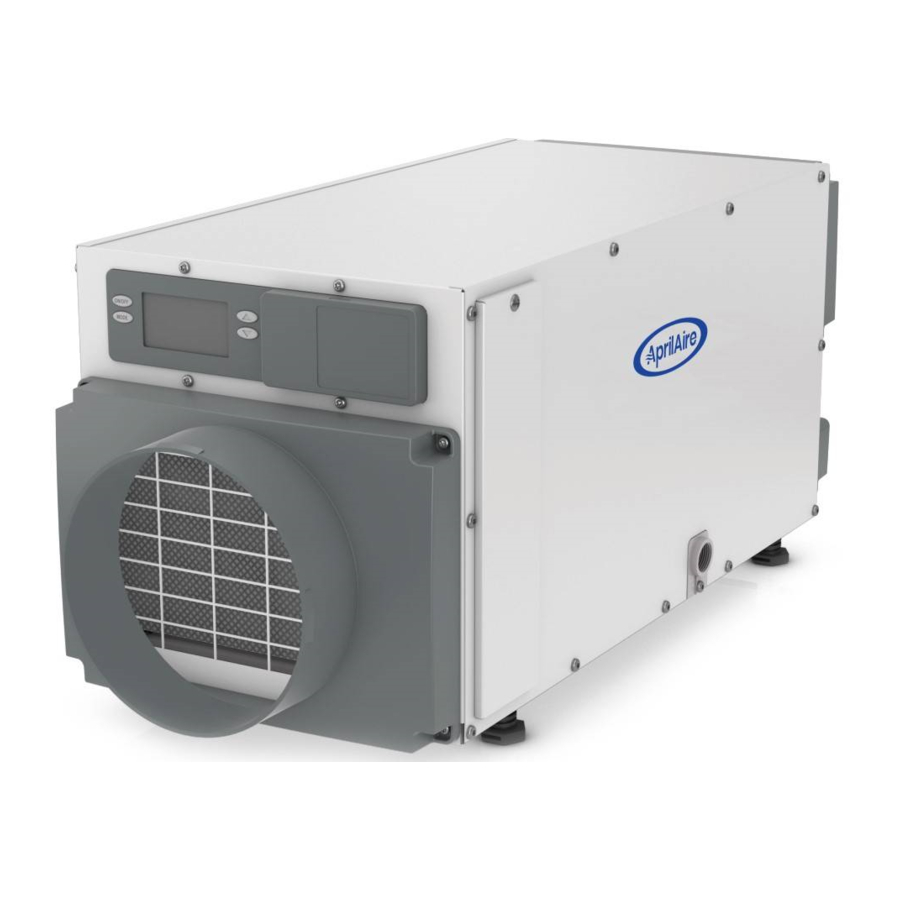

Aprilaire E070 - Dehumidifier Manual

CRAWL SPACE DEHUMIDIFICATION

The AprilAire Dehumidifier controls the humidity level in your crawl space. A powerful blower inside the dehumidifier draws air into the cabinet where it is filtered before having moisture removed. A sealed refrigeration system removes moisture by moving the air through a series of tubes and fins that are kept colder than the dew point of the incoming air. The dew point is the temperature at which moisture in the air will condense, much like what occurs on the outside of a cold glass on a hot summer day. The condensed moisture drips into the dehumidifier drain pan to a drain tube routed to the nearest floor drain or condensate pump. After the moisture is removed, the air moves through a second coil where it is reheated before being sent back into the crawl space. The air leaving the dehumidifier will be warmer and drier than the air entering the dehumidifier. You can reduce the amount of humidity that enters the home by closing windows, doors and fireplace flues when outdoor humidity is high, and by drying clothes outside. Direct exhaust from kitchen vents and bath fans is the best means of controlling humidity due to cooking and showers/baths. The dehumidifier is not designed to prevent window condensation in winter. Use ventilation to lower indoor humidity levels in the winter.

SPECIFICATIONS

NOTE: Rated capacity and current draw measured at 80°F/60% RH inlet conditions at 00 external static pressure

OPERATING THE DEHUMIDIFIER

1. If equipped, use the ON/OFF power switch, located by the power cord, to apply power to the dehumidifier.
   NOTE: The unit can remain plugged in with an ON/OFF power switch on, unless the unit will not be used for an extended period Use the ON/OFF button on the user interface to turn the unit off for short durations When the unit is idle (neither the fan nor the compressor running) the unit will use less than 3W of power

   1. USER INTERFACE
   2. ON/OFF POWER SWITCH (SELECT MODELS)
   3. FILTER ACCESS DOOR RETAINING SCREW
   4. FILTER ACCESS DOOR
2. Use the ON/OFF button (see FIGURE 2) on the user interface to turn the dehumidifier ON. The first press of a button will turn on the display light, so if the display was dark, you might need to press it again Once ON, the display will show the current dehumidifier setting.

3. The dehumidifier blower will turn on, SETTING disappears from the display, and AIR SAMPLING appears (see FIGURE 3) This indicates that the dehumidifier is sampling the air to determine if dehumidification is needed and shows the measured humidity level
   If the control is already ON, lowering the setting will initiate air sampling

4. After sampling the air for 3 minutes, if the Relative Humidity (RH) is above the setting, the compressor turns on to dehumidify the space DEHUMIDIFYING appears when the compressor is turned on (see FIGURE 4)


ENERGY SAVINGS TIPS

1. Adjust the humidity setting to be as high as is comfortable to reduce dehumidifier run time. If it feels clammy or "smells musty," lower the humidity setting To save energy, turn the dehumidifier to OFF when you open your windows, just as you would with air conditioning
2. If vacating your home for an extended period in the summer, set the RH at 55% and set your thermostat as high as you are comfortable setting it to in the cooling mode. This will keep the humidity at a controlled level while minimizing the amount of cooling energy used

MAINTENANCE

CLEANING THE FILTER

1. After initial installation, the air filter and drain should be checked and cleaned every 6 months.
2. Press the ON/OFF button on the user interface to turn the unit OFF
3. Loosen the retaining screw on the filter access door (see FIGURE 1) from the drain side of the dehumidifier until it releases and then remove the filter door.
4. Slide the filter out of the dehumidifier.
5. Rinse the filter with water to remove dust and collected particles from the filter.
6. Shake off excess water from the filter.
7. Clean the drain as described in CLEANING THE DRAIN
8. Reinstall the filter. An arrow on the filter frame shows the direction of airflow and it should point into the dehumidifier.
9. Replace the filter access door and tighten the retaining screw
10. Press the ON/OFF button to turn the dehumidifier back ON.
    The CLEAN FILTER service reminder (see FIGURE 5) will display on the control every 6 months To clear the service message, press the and buttons simultaneously for 3 seconds.


CLEANING THE DRAIN

1. With the filter door on the drain side of the dehumidifier removed, clean the accessible portion of the drain pan using a mild detergent
2. If the drain has a capped tee or elbow to allow cleaner to be poured directly in the drain, remove the cap and pour approximately one cup of white vinegar into the tube (see FIGURE 6) If there is no visible access to the drain line from outside of the dehumidifier, pour approximately one cup of vinegar into the drain pan of the dehumidifier.

   1. CAP
   2. SMALL SECTION OF DRAIN TUBE
   3. 3/4" 3-WAY ELBOW OR TEE AND ELBOW
   4. CONDENSATE DRAIN LINE
3. If the dehumidifier has clear flexible drain tubing, look for excess buildup in the drain line that might prevent water flow, and replace as needed. Clear, smooth, flexible 3/4" Inside Diameter (ID) drain tubing is available in most hardware stores or Do-It-Yourself (DIY) retail stores

PREPARING THE UNIT FOR INSTALLATION

Cut the strap securing the compressor shipping support bracket and remove the strap and shipping bracket (see FIGURE 7)

1. PLASTIC STRAP
2. SCREWS
3. SHIPPING BRACKET
4. ON/OFF POWER SWITCH (SELECT MODELS)

1. Clip off and remove the plastic straps securing the compressor to the shipping bracket.
2. Remove the two screws securing the shipping bracket to the housing. Remove and discard the shipping bracket, and reinstall the two screws in the dehumidifier.

REPOSITIONING THE USER INTERFACE FOR THE APPLICATION
Locate the onboard user interface (see FIGURE 8) It may be rotated 180 degrees in either orientation (see FIGURE 9)

1. USER INTERFACE
2. FILTER ACCESS DOOR

ROTATING THE CONTROL

1. Remove the filter access door and filter.
2. Detach the onboard user interface by removing the four (4) screws around the user interface
   NOTE: Use one hand to support the bottom of the onboard user interface when removing
3. Keep the user interface in the unit and rotate the orientation 180 degrees
4. Re-secure the user interface with the same four screws

INSTALLING THE DUCT COLLARS

• Use the screws in the parts bag to attach the duct collars to the inlet and outlet of the dehumidifier (see FIGURE 10)

  1. INLET DUCT COLLAR
  2. OUTLET DUCT COLLAR
• Make sure there are no bends in the ductwork coming off the outlet for a minimum of 4". This will help ensure proper airflow through the unit

INSTALLING THE DEHUMIDIFIER

DEHUMIDIFIER LOCATION

• Electrical service access and drain cleaning will require the removal of the electrical service side panel (see FIGURE 11) Allow sufficient space for service on this side of the unit.

  1. ELECTRICAL SERVICE ACCESS THIS SIDE
  2. FILTER
  3. 8 FOOT POWER CORD
• Allow sufficient space for the filter to be removed and reinstalled
• If locating the unit where it is not readily accessible (such as a crawl space, an attic or even a basement for some individuals), consider controls such as the Model 76 Dehumidifier Control, which can be mounted in the living space and wired to the dehumidifier.
• For attic installations, suspending the dehumidifier is recommended to reduce noise transference
• Always install the dehumidifier in or above a condensate pan when locating in or above a finished space.

LEVELING AND RAISING THE DEHUMIDIFIER
The feet can be adjusted to level the unit and accommodate drain fittings and condensate pans as required (see FIGURE 12) The unit must be level from front to back and side to side to ensure proper drainage from the dehumidifier.

If installing a condensate pump (see FIGURE 13) to the side of the unit more elevation than can be provided by the adjustable feet may be needed. Risers (Part #5879) or hanging kits (Part #5822) are available to lift the dehumidifier higher off the floor.

1. FLOAT SWITCH WIRE
2. 3⁄4" MNPT X 3⁄4" BARB FITTING (INCLUDED)
3. 3⁄4" CLEAR PVC TUBING (INCLUDED)
4. CONDENSATE PUMP (PART #4856)
5. 8" DIAMETER INSULATED FLEX DUCT

INSTALLING A CONDENSATE PAN UNDER THE DEHUMIDIFIER
Always install the dehumidifier in or above a condensate pan when locating it above a finished space. Adhere to local codes regarding draining of the condensate pan If a condensate pump is needed, make sure it is in the condensate pan as well. Install a float switch in the condensate pan and/or use the overflow wires/terminals on the condensate pump to stop the dehumidifier should overflow occur. See WIRING TO A FLOAT SWITCH

INSTALLING THE DRAIN
USING HARD PIPE

• Install a 3/4" PVC slip x 3/4" MNPT PVC fitting to the dehumidifier and use 3/4" nominal PVC Schedule 40 pipe to run the condensate line to the nearest floor drain or to an outside location that slopes away from the building
• Always maintain a constant downward slope in drain piping. Ensure that drain tubing does not interfere with removal of the side panel or filter door.
• Do not use metal fittings and only hand-tighten threaded fittings. PTFE thread seal tape is recommended for threaded connections
• Install a tee or three-way elbow at the dehumidifier outlet with a small, capped vertical tube (do not cement cap in place) to allow for cleaner to be poured into the drain line (see FIGURE 6)
• PVC primer and cement is recommended for slip-fit connections (do not cement threaded connections)

USING FLEXIBLE TUBING

• Install the provided 3/4" NPT x 3/4" hose barb fitting and use 3/4" I.D. flexible drain tubing.Hand-tighten the fitting to the dehumidifier. PTFE thread seal tape is recommended for threaded connections
• Always maintain a constant downward slope from the dehumidifier to the nearest floor drain or condensate pump, and do not allow soft tubing to curl up, which may result in air lock.

INSTALLING THE CONDENSATE PUMP

• The AprilAire Model 4856 condensate pump is capable of lifting water up to 22 feet (see FIGURE 13)
• The dehumidifier can be elevated (while remaining level) to increase downward slope for proper draining
• Wire the float switch terminals to the normally closed contacts on the condensate pump (see FIGURE 16)

INSTALLING DUCTWORK

Add ductwork to the inlet and outlet of the dehumidifier to ensure dehumidified air is circulated throughout the crawl space and reduce the noise level of the dehumidifier. Point the inlet and outlet ducts in opposite directions to minimize recirculation of dehumidified air.

• Maximum recommended total duct length is 100 feet
• To avoid pulling in dirt and other particles, do not lay intake duct on the floor of the crawl space.

NOTE: Maximum allowable static pressure for this unit is 04" wc

WIRING

No additional wiring is needed unless:

• a separate, remote control such as a dehumidistat is to be used
• a float switch, either integral to a condensate pump or mounted to the condensate pan, is used

Use 18-22 AWG wire for any needed wiring Access the dehumidifier wiring terminals by pulling off the wiring access cover near the user interface display (see FIGURE 14) Snap the wiring access cover back into place after completing all wiring.

1. USER INTERFACE
2. WIRING ACCESS COVER

WIRING TO REMOTE CONTROL
The Model 76, when used as a remote control, allows the user to see the humidity sensed by the dehumidifier and adjust the dehumidifier setting from a remote location. This is most often used when the dehumidifier serves a hard-to-reach location such as a crawl space or basement Wire the remote control as shown in FIGURE 15
If using the AprilAire Model 76 as a remote control, wire to the {+ - A B} terminals Refer to the installation instructions for the control being used for wiring details
NOTE: Air cycling is not an option when using a Model 76 as a remote control

WIRING TO A FLOAT SWITCH
Use only if the installation includes a float switch or a condensate pump. The dehumidifier leaves the factory with a jumper wire installed in the float switch terminals. Remove the jumper and wire the float switch terminals to the float switch or condensate pump overflow switch as shown in FIGURE 16

AIR CYCLING
The dehumidifier has an optional ventilation feature that can be used to circulate air through the dehumidifier, to promote uniform humidity levels throughout the space When this feature is enabled, the dehumidifier fan can be set to run from 0 minutes (no air cycling) to 60 minutes (continuous) per hour
NOTE: The on-board control must be used when Air Cycling

INSTALLER SET-UP

If using a Model 76 Remote Control, using the Air Cycling feature, or Applying an RH Offset, proceed to Step 1 below If not using these features, proceed to STARTING UP THE UNIT

1. Plug unit in and turn the power switch ON (if equipped)
2. The onboard control screen should display OFF If not OFF, press the ON/OFF button to turn the unit OFF
   NOTE: If the display backlight is not on, the first button press (any button) will only turn on the backlight. Press the button a second time to achieve function

3. Hold the MODE button on the onboard control for 3 seconds to enter the Installer Set-Up menu
4. Press MODE to navigate through the screens to set up the dehumidifier for the installed application. Press the or button to select items To exit installer set-up, navigate through all options using the MODE button Navigate through the following screens to set up the dehumidifier for the installed application
5. After the Installer Set-Up options have been completed,
   DONE will blink for 3 seconds and the control will return to the OFF screen

6. Not all system set-up options will be covered in these instructions The default settings are recommended for those options in most applications

SETTING UP REMOTE CONTROL – CRAWL SPACE/ SEALED ATTIC
If wiring to a Model 76 for remote control press the or button to select ENABLED. Then press the or MODE button to advance screen.

SETTING UP VENTILATION / AIR CYCLING

1. If using the dehumidifier for air cycling press the or button to select ENABLED. Then press the MODE button to advance screen.


2. Press MODE at the VENT TIMED screen to go to ventilation time selection screen
3. Press the or button to adjust the ventilation time per hour from 0 to 60 minutes

APPLYING AN RH OFFSET
An offset can be applied to the onboard humidity reading to avoid discrepancies with other humidity-measuring devices in the home Use the or button to select an offset from -5% to 5% Press the MODE button to exit the Installer Set-Up screens DONE will be displayed on the screen and Installer Set-Up is complete

STARTING UP THE UNIT AND SEQUENCE OF OPERATION

Ensure unit is plugged in and, if equipped, use the ON/OFF power switch near the power cord to apply power to the dehumidifier.

USING THE DEHUMIDIFIER CONTROL ONLY

1. Press the ON/OFF button to turn the dehumidifier control ON. The display will show the current humidity setting, and the dehumidifier blower will turn on to start sampling.
   The setting will be replaced by the measured humidity and AIR SAMPLING appears on the display
2. Use the or button to adjust the humidity setting as desired The recommended initial setting is between 55% and 59% RH
3. After three (3) minutes of sampling, the measured humidity will be compared to the setting:
   1. If the humidity is above the setting, the dehumidifier compressor turns on and AIR SAMPLING will be replaced by DEHUMIDIFYING The compressor remains on until the measured humidity falls 3% RH below the setting
   2. If the measured humidity is below the setting, the blowers turn off and the display returns to showing the RH setting
4. The dehumidifier will sample again every 60 minutes, or at any time if the humidity setting is lowered

USING A MODEL 76 AS A REMOTE CONTROL

1. Press the ON/OFF button to turn the dehumidifier control ON The display will show REMOTE to indicate that a remote control is to be used to control the dehumidifier.
2. At the Model 76, press the ON button; the Model 76 will display the RH measured at the dehumidifier, and the dehumidifier blower will turn on to start sampling the air.
3. Use the or button on the Model 76 to adjust the dryness level as desired The dryness levels range from 1 to 7, with 1 being least dry and 7 being most dry; the recommended initial setting is 3
4. After three (3) minutes of sampling, the measured humidity will be compared to the setting:
   1. If the humidity is above the setting, the dehumidifier compressor turns on and ON flashes on the Model 76 display
   2. If the measured humidity is below the setting, the dehumidifier blower turns off.
5. The dehumidifier will sample again every 60 minutes, or at any time if the dryness level is increased

Symbol ISO 7010-W021 (2011-05)	Symbol ISO 7000-1659 (2004-01)	Symbol ISO 7000-1659 (2004-01)
flammable materials	Service indicator: read technical manual	Operator's manual: operating instructions

SERVICE
Approved auxiliary devices: Only approved auxiliary devices approved by the appliance manufacturer shall be installed in the ductwork.

• Fresh Air Ventilator, Stock # 8190FF

The following checks shall be applied to installations using FLAMMABLE REFRIGERANTS:

• The ventilation machinery and outlets are operating adequately and are not obstructed
• Marking on the equipment shall be visible and legible. Markings and signs that are illegible shall be corrected
• When opening the ventilated enclosure for repair of electrical components, be sure to check for refrigerant leaks with a certified flammable refrigerant leak detector

Repair Initial safety checks shall include:

• Servicing the electrical system on the unit should be carried out by a qualified and licensed electrician
• Disconnect power from the unit (unplug) before attempting service or repair
• The capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; that no live electrical components and wiring are exposed in case of a leak.
• There is continuity of earth bonding
• Sealed electrical components shall be replaced, not repaired
• Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use
• Intrinsically safe components must be replaced if tripped
• Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.
• Prior to beginning work on systems containing FLAMMABLE REFRIGERANTS, safety checks are necessary to ensure that the risk of ignition is minimized.
• Ensure that the area is in the open or that it is adequately ventilated before removal of the dehumidifier panels for servicing or conducting any hot work in the vicinity of the unit A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere
• The refrigeration system is considered factory sealed and puncturing the refrigerant tubing in any way is prohibited
• Repairing the refrigeration system shall not be performed in the field and must be done at the manufacturing facility by trained personnel
• Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges, or any other adverse environmental effects The check shall also consider the effects of aging or continual vibration from sources such as compressors or fans
• If a leak is suspected, all naked flames shall be removed/extinguished

The following leak detection methods are deemed acceptable for all refrigerant systems:

• Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used
• Electronic leak detectors may be used to detect refrigerant leaks but must be calibrated correctly for Flammable Refrigerants (Detection equipment shall be calibrated in a refrigerant-free area)
• Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used
• Leak detection equipment shall be set at a percentage of the Lower Flammability Limit (LFL) of the refrigerant and shall be calibrated to the refrigerant employed, and the appropriate percentage of gas (25% maximum) is confirmed.
• Leak detection fluids are also suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipework. Examples of leak detection fluids are:
  • bubble method,
  • fluorescent method agents.
• NOTE: The use of silicon sealant can inhibit the effectiveness of some types of leak detection equipment.

FOR ADDITIONAL ASSISTANCE:
Technical Support is available Monday through Friday (see TROUBLESHOOTING).

TROUBLESHOOTING

NOTICE
Troubleshooting and repairs shall be performed by a qualified HVAC service technician, and all safety procedures shall be followed.

Technical support is available Monday through Friday 7:00 am to 5:00 pm CST at 8003346011 Use the guides on the following pages to identify and correct system faults Contact Technical Support before replacing the unit or any components and for additional troubleshooting

TABLE 1: DIAGNOSTIC CODES

TABLE 2: TROUBLESHOOTING GUIDE

E070 SERVICE PARTS

• SHARP EDGES MAY CAUSE INJURY FROM CUTS. Use care when cutting plenum openings and handling ductwork. Always wear glasses/goggles and gloves when installing the unit.
• TWO-PERSON LIFT REQUIRED. Dropping may cause personal injury or equipment damage. Handle with care and follow installation instructions.
• This unit is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety.
• Be sure to supervise children to ensure that they do not play with the unit.
• Be sure to replace a damaged supply cord. It must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• Never operate electrical equipment in standing water.
• Do not stick your fingers or other objects through the safety grills.
• Do not sit or stand on the unit, or use the unit as a table or shelf.
• The unit is designed to be installed indoors only.
• Always place in well ventilated area to prevent the accumulation of refrigerant in the case of a refrigerant system leak or failure.

NOTICE
EQUIPMENT DAMAGE MAY OCCUR IF INSTALLATION INSTRUCTIONS ARE NOT FOLLOWED.

• Do not use in pool applications. Pool chemicals can damage the dehumidifier.
• Do not use solvents or cleaners on or near the display and circuit board. Chemicals can damage components.
• Wait 24 hours before running the unit if it was not shipped or stored in the upright position.
• Do not use dehumidification to prevent window condensation in the winter. To address window condensation, use ventilation to lower indoor humidity in the winter.
• Running the dehumidifier without the drain insert can lead to condensate leaks.

ELECTRICAL INTERFERENCE CAN CAUSE OUTDOOR TEMPERATURE SENSOR INACCURACY.

• Do not run Outdoor Temperature Sensor alongside wires carrying high voltage (120 VAC or higher).
• Do not run Outdoor Temperature Sensor wire lengths greater than 300 feet.
