Operation - Edsyn Atmoscope 1036 Instruction Manual

FA069
ATMOSCOPE
SMD Hot Air Tool
SPECIFICATIONS
• 120V, 70 W
• 6.5 oz. (184 g)
• Temperature range: 400
• Temperature regulation: ±6
• Voltage leakage from tip to ground less than 2 MV
• Tip to ground resistance less than 2 ohm
• Complies with MIL-S-45743E, DOD-STD-2000-1B, MIL-STD-2000
WS6536E and ESD SPEC, DOD-STD-1686, DOD-HDBK-263.
• UL listed

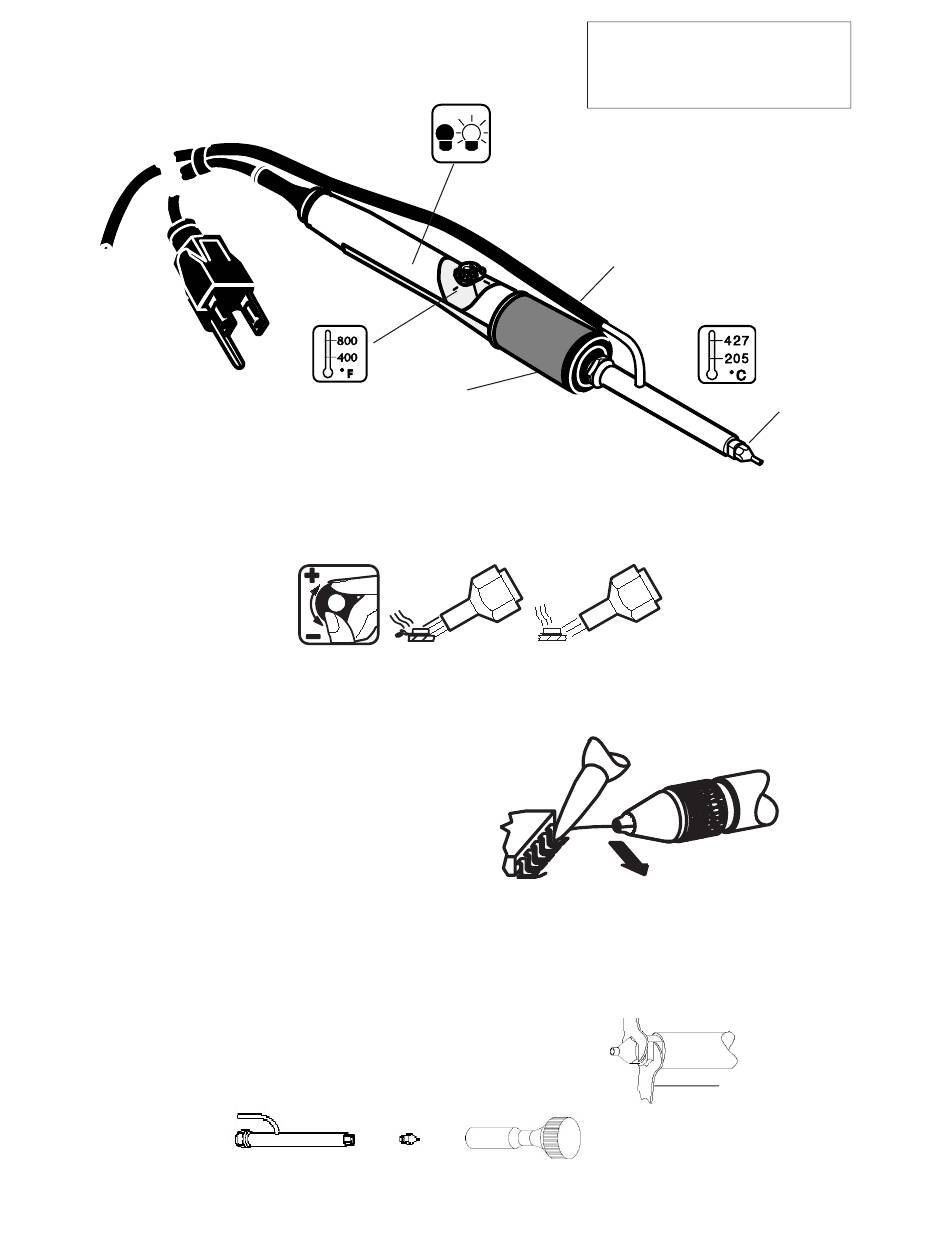

OPERATION

The 3 very important factors involved when working with the ATMOSCOPE SMD Hot Air Tool are amount
of air output, temperature setting and type of Tip used. The key to an effective soldering is to reflow the
solder without blowing the solder across the board and thus creating bridges.
1. Have the proper Tip installed.
2. Connect Hose to regulated air source.
3. Plugged-in Tool to a power source and set
desired temperature.
4. Turn on the air and adjust pressure .
5. Direct hot air towards the connection until
solder melts. Using "SMD helpers" will make
your job easier.
Efficiency is greatly dependent on choosing the proper tip to meet each
CHANGING TIPS
application.
1. Turn Tip counter-clockwise by using a WT618 Tip
Wrench. (set of 2, the other is to hold the RS321
Retaining Sleeve) or use a WT620.
2. Remove and replace with desired Tip.
RS321
All manuals and user guides at all-guides.com
®
Collar
F - 800 F (205 C - 425 C)
0 0 0 0
F (±3 C)
0 0
Hot Air Tip
OPERATING REQUIREMENTS:
•120V, 60 Hz
•Regulated air flow
CAUTION: HOT AIR WILL BURN !!!
Turn off air and place tool in Pod
when not in use
HS307 Hose
connect to regu-
lated air flow.
WT620
Hot Air Tip
Cut thru the connection with a
pull wire or shim blade while
hot air melts the solder.
WT618
