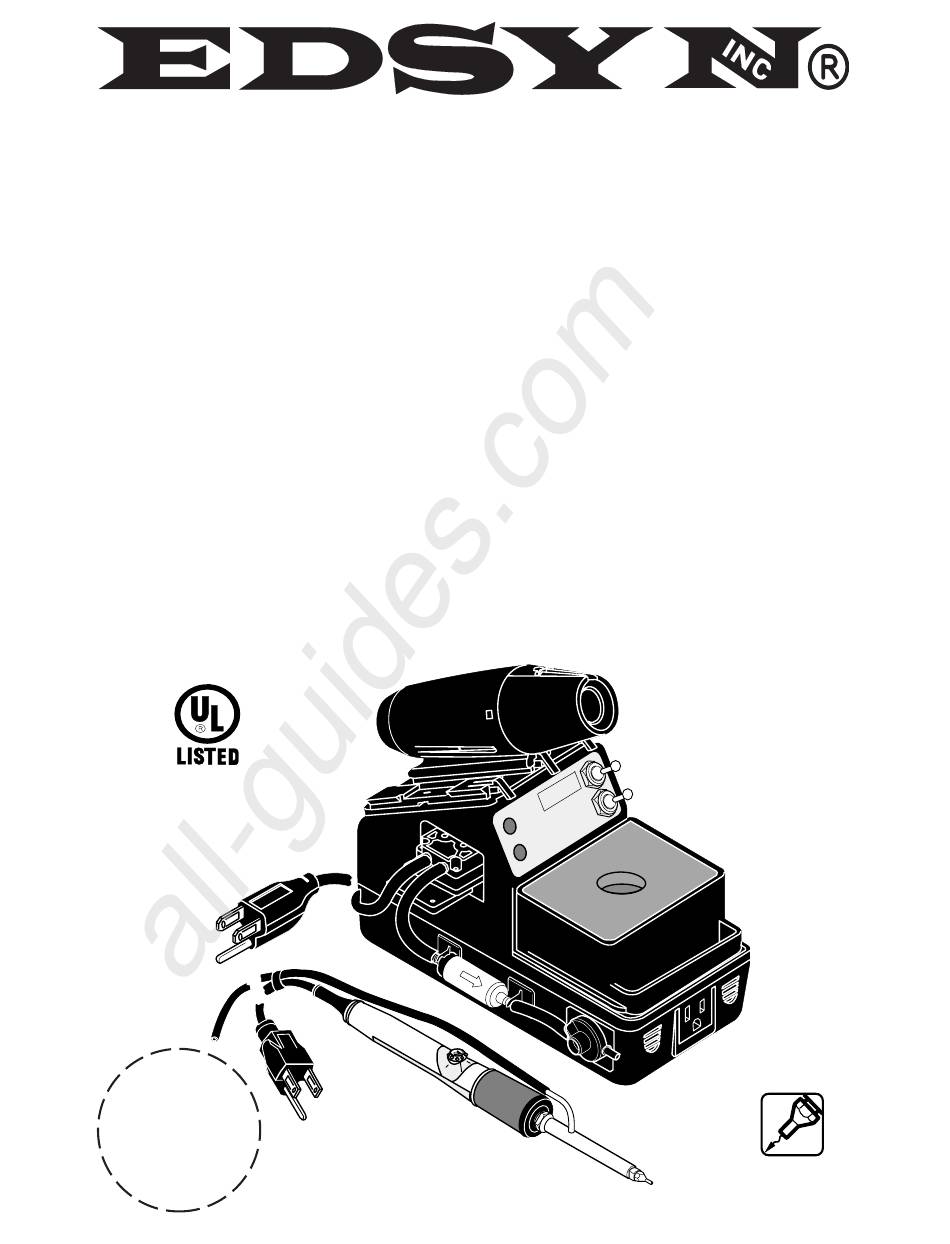

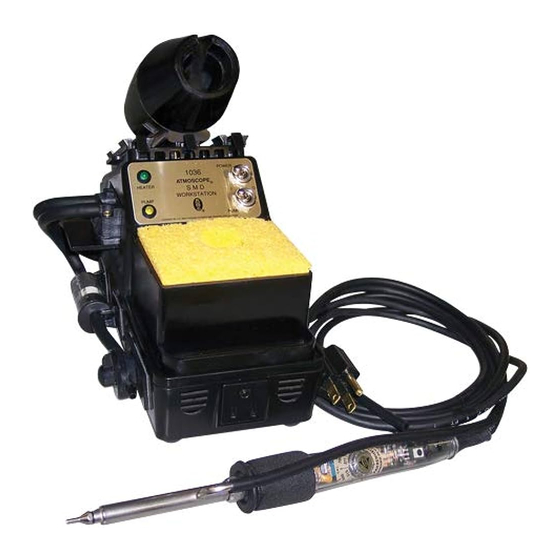

- Page 1 All manuals and user guides at all-guides.com 1036 ATMOSCOPE ® self-contained SMD HOT AIR WORK STATION • COMPLIES WITH MIL-S-45743E, MIL-STD-2000, DOD-STD- 2000-1B, WS6536E AND ESD SPEC, DOD-STD-1686, DOD- HDBK-263 MADE IN THE U.S.A. SMD Hot Air instruction manual...
-
Page 2: Specifications
All manuals and user guides at all-guides.com FEATURES PS542 ATMO- SCOPE Static Safe ® Power Supply A) Power Switch C) PD525 Pod B) Pump Switch F) Power Indicator Light H) Pump Indicator Light D) SH230 Sponge Holder E) AF110 Low Static Air Filter Fuse, 6.3A E) AF110 Low Static... - Page 3 All manuals and user guides at all-guides.com The 3 very important factors involved when working with the Hot Air Station are OPERATING amount of air output, temperature setting and type of Tip used. The key to an THE STATION effective soldering is to reflow the solder without blowing the solder across the board and thus creating bridges.
-
Page 4: Operation
All manuals and user guides at all-guides.com FA069 OPERATING REQUIREMENTS: ATMOSCOPE •120V, 60 Hz ® SMD Hot Air Tool •Regulated air flow CAUTION: HOT AIR WILL BURN !!! Turn off air and place tool in Pod when not in use HS307 Hose connect to regu- lated air flow. - Page 5 REWORKING SMDs view and should only serve as guidelines. It's effectiveness will depend on practice. INSTRUCTIONAL VIDEOS AVAILABLE ON 30 DAY LOAN. CALL EDSYN. METHOD 1 (RECOMMENDED FOR GULLWINGS, LEADLESS CHIP CARRIERS and QUAD I.Cs.) 1. Install the proper Tip.
- Page 6 All manuals and user guides at all-guides.com See Catalog for SMD Helpers, Pull Wires and other tools used in aiding SMD removal and placing. SMD Hot Air Tips Part Hole Application Description Dia. Jet Tip .02 in. .38 in. for pin point LT427 1/64 in.
-
Page 7: Power Supply Troubleshooting
Clean Air passages along RS321 clogged tip. and Tip. e) Dirty CC355 Chamber e) Clean CC355. Coil. f) Damaged diaphram f) send to factory For Factory Repair, ship to: EDSYN INC.Customer Service Department 15958 Arminta Street, Van Nuys, CA 91406-1896... - Page 8 All manuals and user guides at all-guides.com FA069 ATMOSCOPE SMD HOT AIR TOOL ® SPARE PARTS LIST ITEM DESCRIPTION PART NO REQ'D HS307 Hose, Low Static Silicone (Sold Per Foot) 5 ft. SR102 120 V Hollow Heater Assembly for FA069 SR081 Vinyl Finger Grip RC349...
- Page 9 All manuals and user guides at all-guides.com...
- Page 10 All manuals and user guides at all-guides.com PS542 POWER SUPPLY SPARE PARTS LIST ITEM PART NO DESCRIPTION REQ'D PD525 Tool Pod for SMD Hot Air Tools SH230 Sponge Holder with LN230, RS199, RS243 RS199 Cleaning Sponge for SH230 RS243 Leveling Pad for SH230 LN230 Liner for SH230 SH230-1...
-
Page 11: Temperature Calibration
All manuals and user guides at all-guides.com TEMPERATURE CALIBRATION Items Needed 1. Use the DS299S to remove the temperature SRW01 DS299S • SRW01 control knob. Remove RS321 sleeve. Turn • DS299S temp. control (A) so arrow points to cord. • SRF30 2. - Page 12 ALL RIGHTS RESERVED. NO PART OF THIS MANUAL INCLUDING THE INDIVIDUAL ICONS MAY BE REPRODUCED OR UTILIZED IN ANY FORM OR BY ANY MEANS WITHOUT THE PERMISSION OF EDSYN, INC. THE NAMES LONER, SOLDAPULLT, ATMOSCOPE, AUTO-VAC, IDLE-REST, OCTAVAC AND KLATCH ARE REGISTERED TRADEMARKS OF EDSYN, INC.
