Edsyn Atmoscope 1036 Instruction Manual page 3

The 3 very important factors involved when working with the Hot Air Station are
OPERATING
amount of air output, temperature setting and type of Tip used. The key to an
THE STATION
effective soldering is to reflow the solder without blowing the solder across the
board and thus creating bridges.
CAUTION: DO NOT POINT TOOL AT ANYONE OR ANYWHERE.
1. Make sure the station is plugged into a 120V power outlet.
2. Turn on Power Switch .
3. Set Temperature Control Knob to around 600°F.
4. Allow Tool to heat up.(Blinking Neon Lamp means ready.)
5. Turn on Pump.

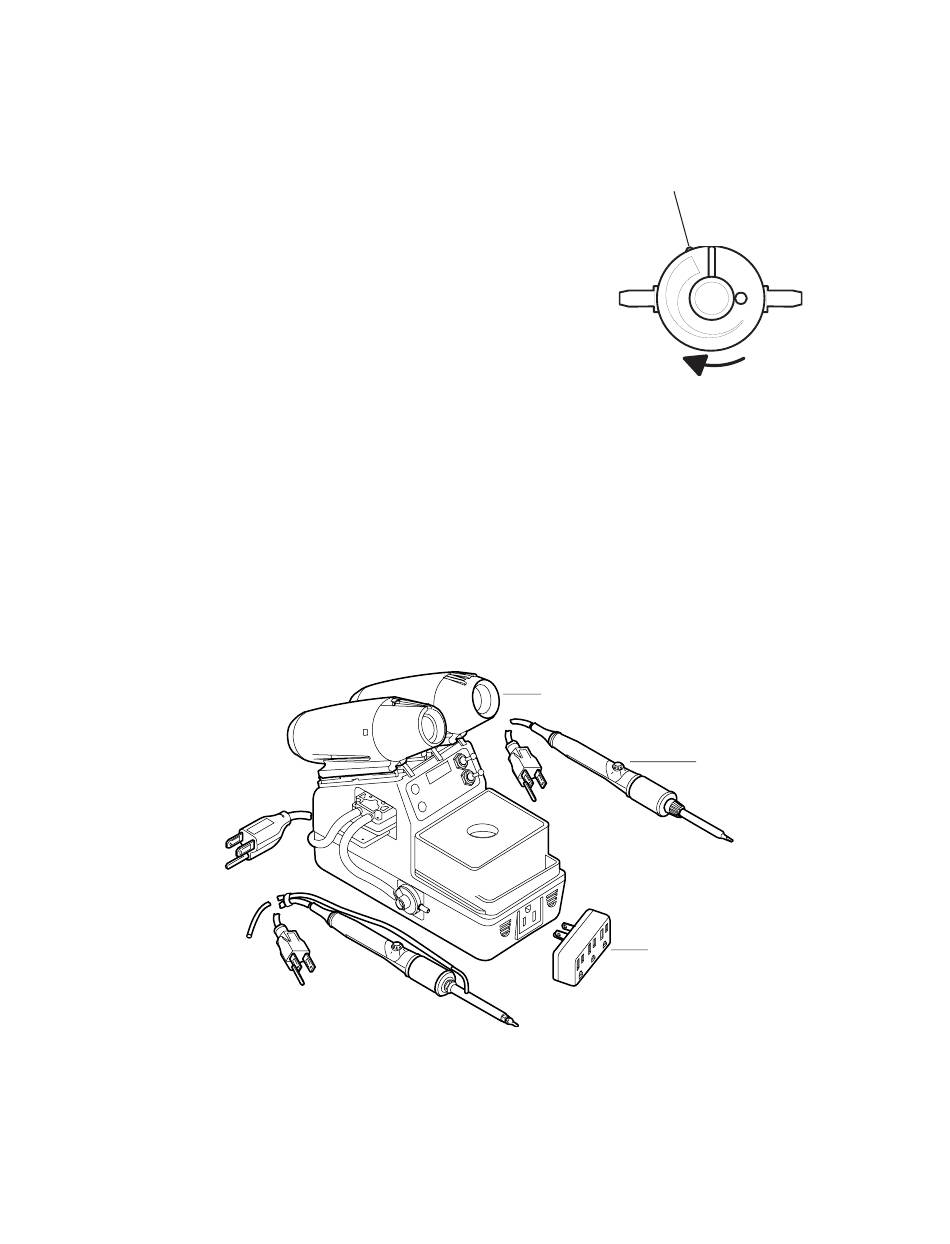

Set the Air Control Valve to a full counter clockwise position.
This will be our reference setting which is 100%. Turning it the
other way will mean less air output.
OPTIONS:
1036-3
ATMOSCOPE
SMD Workstation
A 1036 with: (1) CL1080*
(1) PD528
(1) PL237
* Temperature Controlled Soldering Instrument,
70W. 400°F - 800°F Temp. Range.
