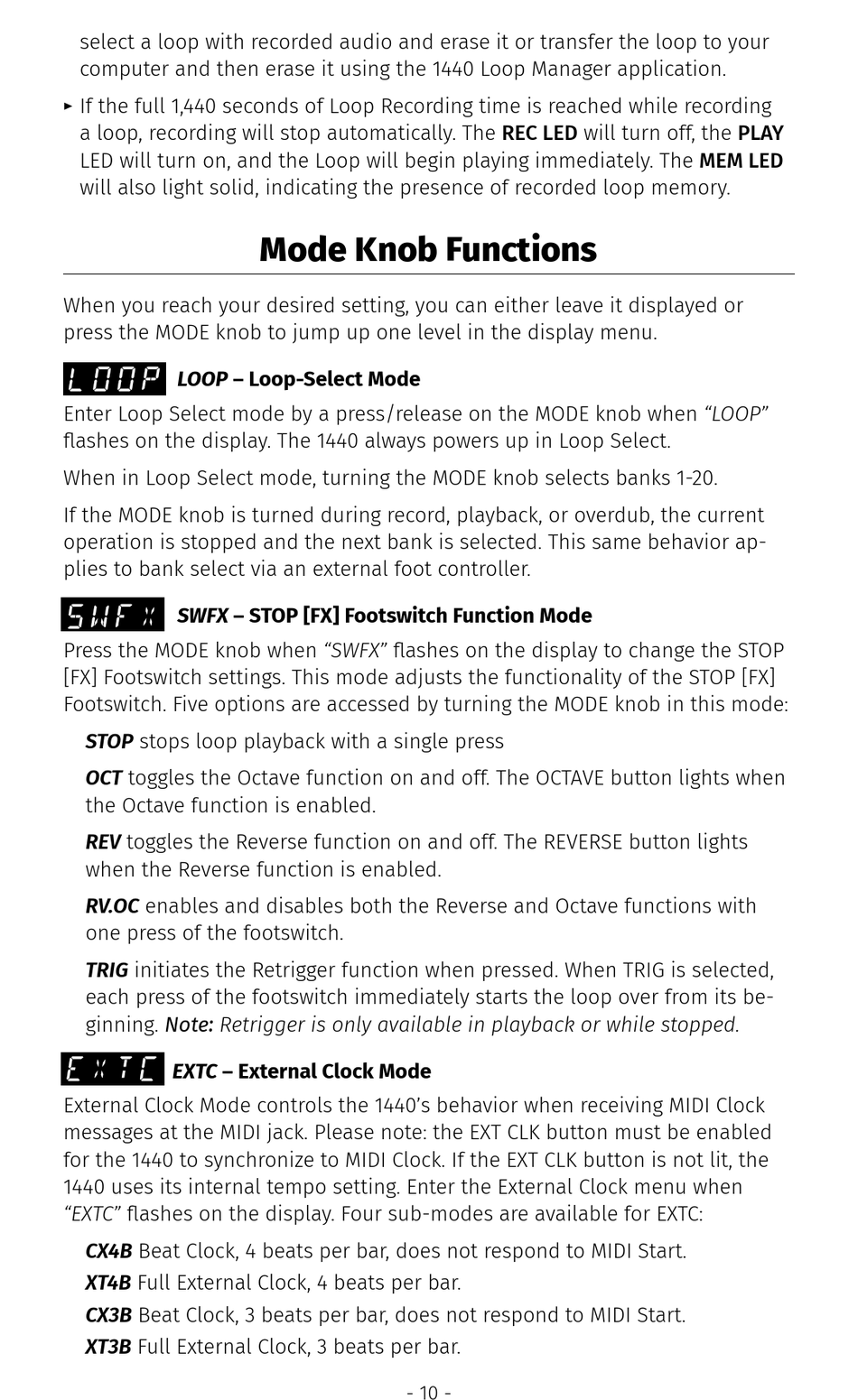

Mode Knob Functions; Loop Select; Stop [Fx] Footswitch Function; External Clock - Electro-Harmonix 1440 Quick Start Manual

select a loop with recorded audio and erase it or transfer the loop to your
computer and then erase it using the 1440 Loop Manager application.
t If the full 1,440 seconds of Loop Recording time is reached while recording
a loop, recording will stop automatically. The REC LED will turn off, the PLAY
LED will turn on, and the Loop will begin playing immediately. The MEM LED
will also light solid, indicating the presence of recorded loop memory.
When you reach your desired setting, you can either leave it displayed or
press the MODE knob to jump up one level in the display menu.
LOOP – Loop-Select Mode
Enter Loop Select mode by a press/release on the MODE knob when "LOOP"
flashes on the display. The 1440 always powers up in Loop Select.
When in Loop Select mode, turning the MODE knob selects banks 1-20.
If the MODE knob is turned during record, playback, or overdub, the current
operation is stopped and the next bank is selected. This same behavior ap-
plies to bank select via an external foot controller.
SWFX – STOP [FX] Footswitch Function Mode
Press the MODE knob when "SWFX" flashes on the display to change the STOP
[FX] Footswitch settings. This mode adjusts the functionality of the STOP [FX]
Footswitch. Five options are accessed by turning the MODE knob in this mode:
STOP stops loop playback with a single press
OCT toggles the Octave function on and off. The OCTAVE button lights when
the Octave function is enabled.
REV toggles the Reverse function on and off. The REVERSE button lights
when the Reverse function is enabled.
RV.OC enables and disables both the Reverse and Octave functions with
one press of the footswitch.
TRIG initiates the Retrigger function when pressed. When TRIG is selected,
each press of the footswitch immediately starts the loop over from its be-
ginning. Note: Retrigger is only available in playback or while stopped.
EXTC – External Clock Mode
External Clock Mode controls the 1440's behavior when receiving MIDI Clock
messages at the MIDI jack. Please note: the EXT CLK button must be enabled
for the 1440 to synchronize to MIDI Clock. If the EXT CLK button is not lit, the
1440 uses its internal tempo setting. Enter the External Clock menu when
"EXTC" flashes on the display. Four sub-modes are available for EXTC:
CX4B Beat Clock, 4 beats per bar, does not respond to MIDI Start.
XT4B Full External Clock, 4 beats per bar.
CX3B Beat Clock, 3 beats per bar, does not respond to MIDI Start.
XT3B Full External Clock, 3 beats per bar.

Mode Knob Functions
