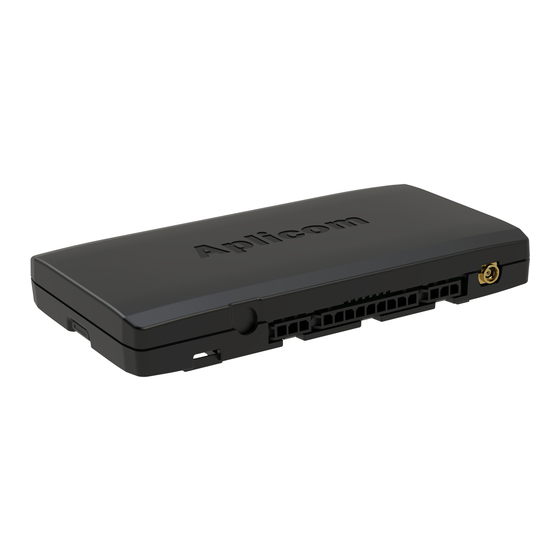

APLICOM A9 PRO QUICK Quick Installation Manual

Hide thumbs Also See for A9 PRO QUICK:

APLICOM A9 PRO QUICK

Package content

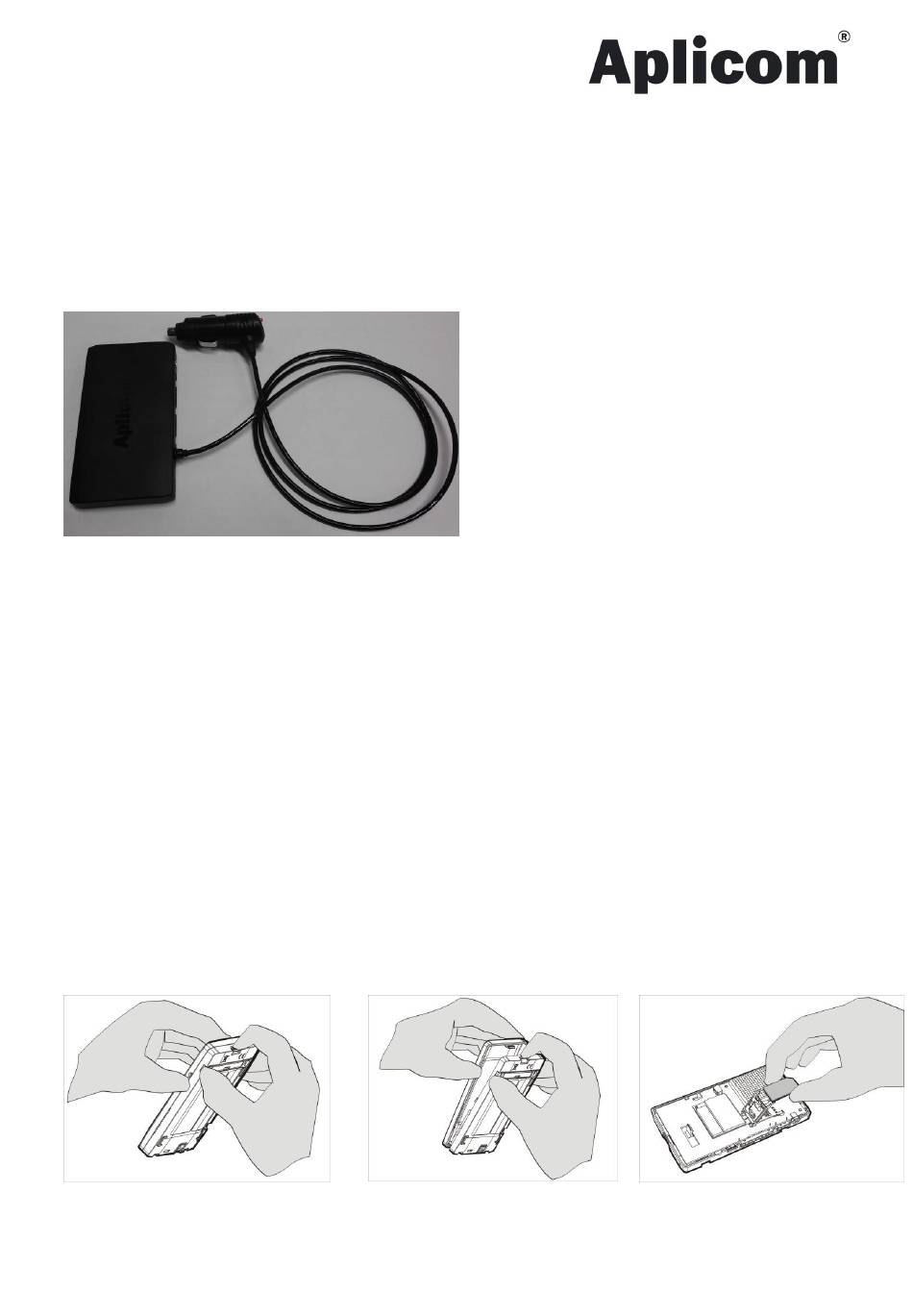

Figure 1.

The following steps must be made in right order to start the unit immediately for full operation.

1. Open the unit

2. Install SIM card

4. Close the unit

5. Connect cigarette connector to cigarette power outlet

6. Download your configuration to the unit by using A9 TRIX data cable D337055 or USB cable

D338100

7. Install the unit to carefully selected place

Insert the SIM card by opening the A9 PRO unit. Press locking lid on the other end of the device and at the

same time lift up cover on locking side. Finally remove entire cover carefully and insert the SIM. See figures

2, 3 and 4.

NOTE! The SIM card must be installed before the internal battery is connected.

Figure 2

K520008 A9 PRO QUICK quick Installation Guide

v. 1.0.0

Quick installation guide rev. 1.0.0

Figure 3

Includes

A9 PRO QUICK Unit (D108310) with Cigarette

lighter cable for A9 PRO QUICK.

SIM card is also needed. Order card from

teleoperator or from Aplicom.

Figure 4

Table of Contents

Do you have a question about the A9 PRO QUICK and is the answer not in the manual?

Page 1 APLICOM A9 PRO QUICK Quick installation guide rev. 1.0.0 Package content Includes A9 PRO QUICK Unit (D108310) with Cigarette lighter cable for A9 PRO QUICK. SIM card is also needed. Order card from teleoperator or from Aplicom. Figure 1. Preparation of the A9 PRO QUICK unit The following steps must be made in right order to start the unit immediately for full operation.
Page 2 NOTE! If you have a newer cable collar which sit tight on bottom part then the cable tie is not needed. Figure 6 Figure 5 Figure 7 Figure 8 Figure 9 Figure 10 SW conf / COM 3PAD For more information, see document D521000 A9 PRO Installation Guide. K520008 A9 PRO QUICK quick Installation Guide v. 1.0.0...
