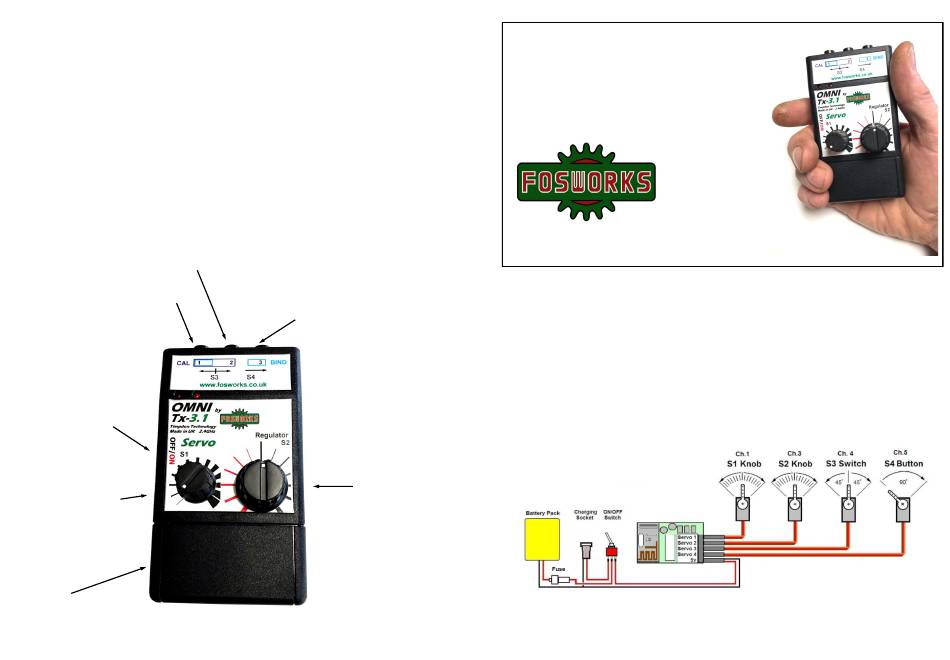

OMNI Tx-3.1
You no longer need that big transmitter anymore! The programmable OMNI Tx-3.1
Servo handheld transmitter will control your garden railway live steam locomotives
perfectly from the palm of your hand. An Omni Rx-3 or Rx23 receiver with be needed
to work with the OMNI Tx-3.1 transmitter.
2.4GHz gives perfect glitch free control for up to 800 metres range.
Four servos can be controlled from an OMNI Tx-3.1 Transmitter. Two infinitely varia-
ble and two with stop positions. Cruise control is possible by turning off the transmitter
while the train is running. Turn back on to instantly regain control.
Black Push Buttons 1. 2 . and 3
Buttons 1 and 2 control Servo 3.
Press 1 and the servo moves to the left.
Press again and it returns to centre.
Press button 2 for Right movement
and again for centre. Very good for
Operating Forwards and reverse
ON/OFF
Slide switch
Slide down for ON
S2
Servo 2
For the first
infinitely variable
servo movement
(Blower or
reverser)
2 x AAA
Battery box lid
If Alkaline batteries are used up to 200 hours of continuous use is possible.
Servo
2.4GHz Handheld Transmitter
Button 3 controls Servo 4 and BIND
Press button 3 and Servo 4 swings from left to
right. Release and the arm swings back. Excel-
lent for operating whistles and couplings etc.
Buttons 1,2 and 3 are also employed in re-
programming the transmitter
More Info
For more information
see overleaf
Servo 1 or
For the second
infinitely variable
servo movement
or forwards and
reverse with ESC
Centre Detent
OMNI Tx-3.1
Programmable 2.4GHz Transmitter
For Locos with ESC and
switcher units or servos
WWW.FOSWORKS.CO.UK
Tel 0(44)1254 814675
S1 and S2 infinitely variable. S3 three position,S4 two position
S1
ESC
(Regulator)
Rx-23 receiver circuit diagram for use with a four Servos.
Servo
P.O.Box 675,
Blackburn, Lancs.
BB1 9DL
UK
Programmable Four Servo Operation
Centre detent
on S1 regulator control
2.4GHz Technology by Timpdon
Requires an OMNI Rx-3 or Rx23 receiver.
Up to 800 metres range
Telemetry feedback on LED 2
Ideal for use with older installed systems
Rx-23
