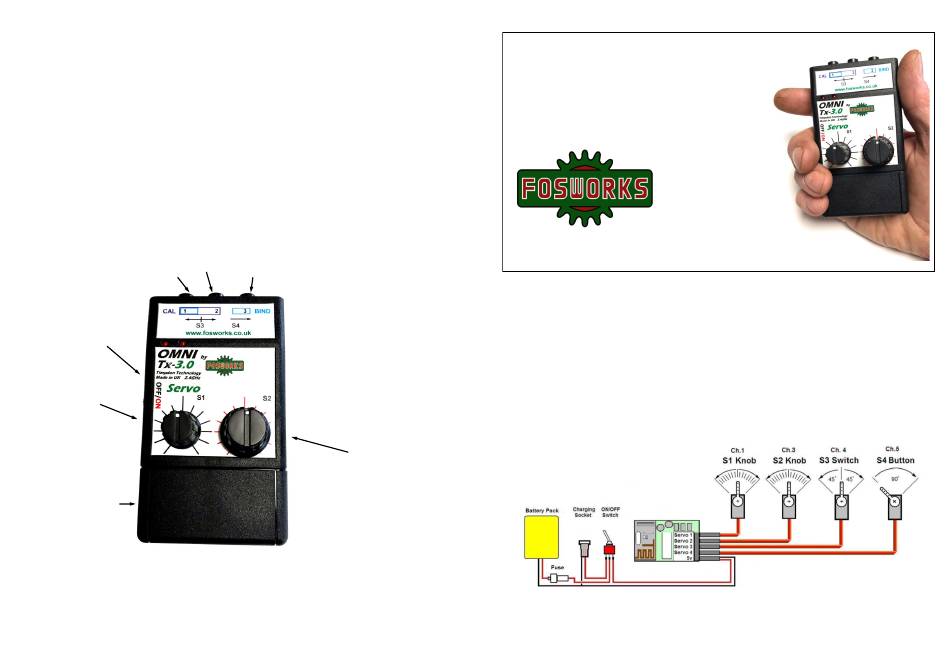

Omni Tx-3.0 Servo Quick Start Manual

OMNI Tx-3.0
You no longer need that big transmitter anymore! The programmable OMNI Tx-3.0 Servo
handheld transmitter will control your garden railway live steam locomotives perfectly from
the palm of your hand. An Omni Rx-3 or Rx23 receiver with be needed to work with the
OMNI Tx-3.0 transmitter.
2.4GHz gives perfect glitch free control for up to 800 metres range.
Four servos can be controlled from an OMNI Tx-3.0 Servo Transmitter. Two infinitely varia-
ble and two with stop positions. Cruise control is possible by turning off the transmitter
while the train is running. Turn back on to instantly regain control.
Black Push Buttons 1. 2 . and 3
Buttons 1 and 2 control Servo 3.
Press 1 and the servo moves to the left. Press
again and it returns to centre.
Press button 2 for Right movement and again
for centre. Ideal for simple reverser.
ON/OFF
Slide switch
Slide down for ON
S2
Servo 2
Gives
infinitely variable
servo movement
(Blower, gas valve or
reverser)
2 x AAA Battery box
If Alkaline batteries
are used up to 200
hours of continuous
use is possible.

Telemetry

- by default, telemetry (i.e. feedback from the receiver to the handset) is not acti-
vated for a longer battery life. If it is required, then it must be activated with the following proce-
dure: Turn Transmitter OFF, Hold down buttons 1,2, and 3. Turn on transmitter and keep hold-
ing down all three buttons until LED2 goes on. Release all buttons. It is now active and LED2
will illuminate whenever the telemetry input on the FRx23 is grounded. To de-activate, use the
same procedure. If the Rx fails to send to the handset, the LED will begin flashing 2 times per
second to indicate loss of feedback so the model should be checked to see if the battery is low
or some other fault has occurred.
Servo
2.4GHz Handheld Transmitter
Button 3 controls Servo 4 and BIND
Press button 3 and Servo 4 swings from left to
right. Release and the arm swings back. Excellent
for operating whistles and couplings etc.
Buttons 1,2 and 3 are also employed in re-
programming the transmitter
More Info
For more information
see overleaf
infinitely variable
servo movement
(Regulator, gas
OMNI Tx-3.0
Programmable 2.4GHz Transmitter
For Live Steam Locos
WWW.FOSWORKS.CO.UK
Tel 0(44)1254 814675
S1 and S2 infinitely variable. S3 three position,S4 two position
Telemetry feedback on LED 2, ideal for monitoring boiler wa-
S1
Servo 1
Gives
valve, etc.)
Rx-23 receiver circuit diagram for use with a four Servos.
Servo
Another
PETER SPOERER
PRODUCT MADE BY
P.O.BOX 675,
Blackburn, Lancs.
BB1 9DL
UK

Programmable Four Servo Operation

2.4GHz Technology by Timpdon
Requires an OMNI Rx-3 or Rx23 receiver.
Up to 800 metres range
ter level.
Rx-23
