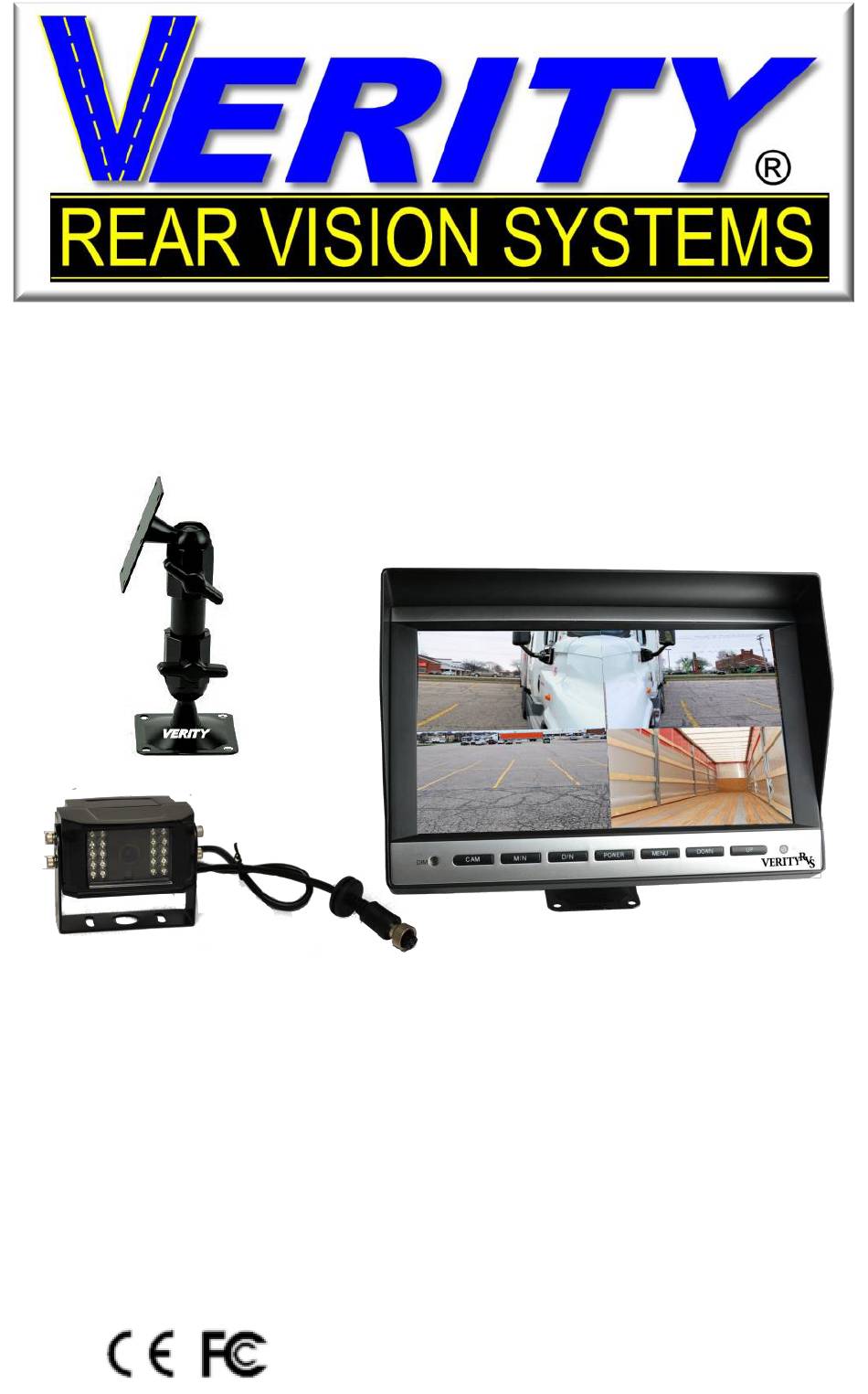

- Page 1 QUAD MONITOR SYSTEM Part # SM10J Just View It! ® Please read this manual completely before operating the SYSTEM A division of Component Solution Services, LLC. 56600 Twin Branch Dr., Mishawaka, IN 46545 www.verityrvs.com Verity Rear Vision Systems All rights reserved 2019...
- Page 2 Component Solution Services LLC., offers the Verity Rear Vision Systems® to meet any requirements and price point within the trucking, specialty vehicles, and RV industry. Verity Rear Vision Systems® is also home to the Supreme View® line of specialty format systems.
- Page 3 Read our manual before operating Think safety or installing. First Most likely, your system came preinstalled so the installation section would be for reference. Thank you for your purchase of our Verity Rear Vision Systems®. When installed and used properly, your SM10J is designed to deliver you years of trouble-free operation.
- Page 4 WARNING Do not place heavy objects on cables or cover them with carpet or mats. Do not place cables where they can be crushed in any manner. Our systems are designed as a driving aid. Watching videos, broadcasts, DVDs and/or any images other than intended driving assistance cameras is prohibited.
- Page 5 SYSTEM FEATURES MONITOR SPECIFICATIONS (part# MK10J) Built in Quad Multiplexer Long Life High Resolution: 800 × 480 Pixel (RGB) System: PAL/NTSC selectable Contrast: 400:1 Brightness: 450cd/m2 Power supply: DC 12V~24V with reverse polarity protection Operation temperatures: -30~70C Storage temperature: -40~80C 2 AV color coded inputs with color coded trigger wires, Auto blue screen if no signal on activated channel Features: HD sunshade, auto light sensor dimming for buttons...

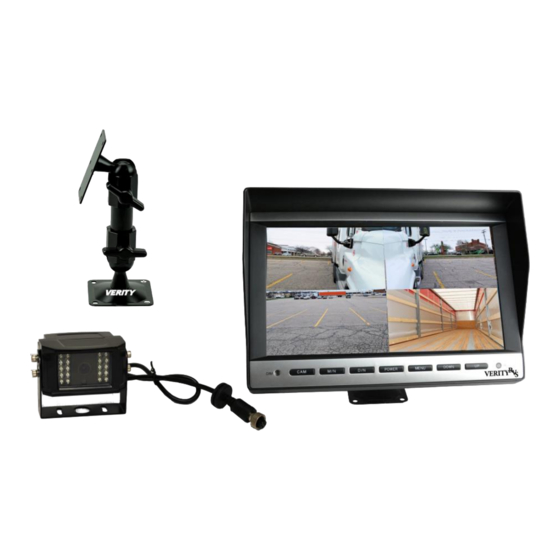

- Page 6 SYSTEM COMPONENTS I/F Remote 10-Inch HD Digital Panel Infrared Weatherproof Camera 65 foot Camera Cable 13-pin to Monitor Cable Built-in Mount Manual...
- Page 7 SYSTEM COMPONENTS This monitor can be mounted on the dash and can be mounted on both horizontal and vertical surfaces. Make sure the view is suitable to the driver to observe the images. Take care not to block any necessary viewing area when mounting.
- Page 8 MONITOR / REMOTE OPERATIONS DIM Auto Dimming Photo Cell CAM Switches between cameras M/N Mirrored / Normal View D/N Day / Night screen brightness (Works only when not in auto dim mode) POWER Power on/off button RED power off / GREEN powered MENU Activates operational menu Down Volume DOWN / switches down when in menu...
- Page 9 CONNECTION OPERATIONS Verity Rear Vision Systems Wire Connection Key 4-pin camera connectors & trigger wires Green -Camera 1 rear (Green 4-pin) Blue -Camera 2 optional (Blue 4-pin) Brown -Camera 3 rear (Brown 4-pin) White -Camera 4 rear (White 4-pin) Red wire to key-on hot (+) 10-32v. DC (fused) Black wire to GND.
-
Page 10: Times
MENU OPERATIONS Press Menu: 1 time: DIMMER AUTO Use DOWN / UP arrows to turn the auto dim on/off 2 times: CONTRAST llllllllllllllllllll------------- Use DOWN / UP arrows to adjust contrast 3 times: BRIGHTNESS llllllllllllllllllll------------- Use DOWN / UP arrows to adjust brightness 4 times: COLOR llllllllllllllllllll-------------... -
Page 11: Table Of Contents
6 times: CAM 2 NORMAL Use DOWN / UP arrows to adjust Camera 2 mirrored/normal view 7 times: CAM 3 NORMAL Use DOWN / UP arrows to adjust Camera 3 mirrored/normal view 8 times: CAM 4 NORMAL Use DOWN / UP arrows to adjust Camera 4 mirrored/normal view 9 times: ENGLISH... -
Page 12: Times
11 times: TRIGGER 1 ON Use DOWN / UP arrows to turn on Camera 1 trigger 12 times: TRIGGER 2 ON Use DOWN / UP arrows to turn on Camera 2 trigger 13 times: TRIGGER 3 ON Use DOWN / UP arrows to turn on Camera 3 trigger 14 times: TRIGGER 4 ON Use DOWN / UP arrows to turn on Camera 4 trigger... - Page 13 15 times: PARK Use DOWN / UP arrows to turn on park lines 16 times (if parking lines on): PARK Use DOWN / UP arrows to turn / adjust parking lines Vertically Movement...
- Page 14 MENU OPERATIONS 17 times (if parking lines on): PARK Use DOWN / UP arrows to turn / adjust parking lines width Movement in & out 18 times RESET This will reset factory defaults...
- Page 15 Verity Rear Vision Systems A division of COMPONENT SOLUTION SERVICES (CSS) LIMITED ONE (1) YEAR WARRANTY 1. CSS products’ warranties are not transferable. The warranties apply to the retail consumer for one (1) year and covers against defects in material and workmanship.
- Page 16 Note: if you are a fire/rescue customer in need of tech support after hours or on weekends, leave a message and a technician will return your call as soon as one becomes available. a division of Component Solution Services 56600 Twin Branch Drive Mishawaka, IN 46545 574-807-6002...
