- Page 1 MONITOR SYSTEM Part # SMQ7J Just View It! ® Please read this manual completely before operating the SYSTEM A division of Component Solution Services, LLC. 56600 Twin Branch Dr., Mishawaka, IN 46545 www.verityrvs.com Verity Rear Vision Systems All rights reserved 2019...
- Page 2 Now includes our ADD25F Heavy Duty Mount Just View It! ® www.VerityRVS.com Verity Rear Vision Systems...
- Page 3 Component Solution Services LLC., offers the Verity Rear Vision Systems® to meet any requirements and price point within the trucking, specialty vehicles, and RV industry. Verity Rear Vision Systems® is also home to the Supreme View® line of specialty format systems.
- Page 4 Read our manual before operating Think safety or installing. First Most likely, your system came preinstalled so the installation section would be for reference. Thank you for your purchase of our Verity Rear Vision Systems®. When installed and used properly, your SM07J is designed to deliver you years of trouble-free operation.
- Page 5 WARNING Do not place heavy objects on cables or cover them with carpet or mats. Do not place cables where they can be crushed in any manner. Our systems are designed as a driving aid. Watching videos, broadcasts, DVDs and/or any images other than intended driving assistance cameras is prohibited.
-
Page 6: System Features
SYSTEM FEATURES MONITOR SPECIFICATIONS MONITOR SPECIFICATIONS (part# MK07K) Screen size: 7-inch digital screen (16:9) Long Life High Resolution: 800 × 480 Pixel (RGB) System: PAL/NTSC selectable Contrast: 400:1 Brightness: 450cd/m2 Power supply: DC 12V~24V with reverse polarity protection Operation temperatures: -30~70C Storage temperature: -40~80C 2 AV color coded inputs with color coded trigger wires, auto blue screen if no signal on activated channel... -
Page 7: System Components

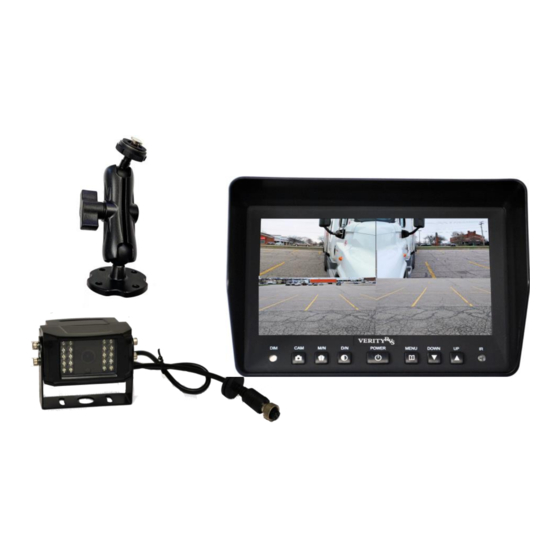

SYSTEM COMPONENTS I/F Remote 7-Inch HD QUAD LCD Infrared Weatherproof Camera 65 foot Camera Cable 13-pin Monitor Cable H Mount Manual... -
Page 8: Mounting Monitor
SYSTEM COMPONENTS This monitor can be mounted on the dash and can be mounted on both horizontal and vertical surfaces. Make sure the view is suitable to the driver to observe the images. Take care not to block any necessary viewing area when mounting. Before mounting the system, permanently hook up all connections to ensure proper operation. - Page 9 MONITOR / REMOTE OPERATIONS DIM Auto Dimming Photo Cell CAM Switches between cameras M/N Mirrored / Normal View D/N Day / Night screen brightness (Works only when not in auto dim mode) POWER Power on/off button RED power off / BLUE powered MENU Activates operational menu Down Volume DOWN / switches down when in menu Volume UP / switches up when in menu...
-
Page 10: Connection Operations
CONNECTION OPERATIONS Verity Rear Vision Systems Wire Connection Key 4-pin camera connectors & trigger wires Brown -Camera 1 rear (Brown 4-pin/trigger) Blue -Camera 2 optional (Blue 4-pin/trigger) White-Camera 3 rear (White 4-pin/trigger) Yellow -Camera 4 rear (Yellow 4-pin/trigger) Red wire to key-on hot (+) 10-32v. DC (fused) Black wire to GND. -
Page 11: Menu Operations
MENU OPERATIONS Press Menu: 1 time: DIMMER AUTO Use DOWN / UP arrows to turn the auto dim on/off 2 times: CONTRAST llllllllllllllllllll------------- Use DOWN / UP arrows to adjust contrast 3 times: BRIGHTNESS llllllllllllllllllll------------- Use DOWN / UP arrows to adjust brightness 4 times: COLOR llllllllllllllllllll-------------... - Page 12 MENU OPERATIONS 5 times: CAM 1 NORMAL Use DOWN / UP arrows to adjust Camera 1 mirrored/normal view 6 times: CAM 2 NORMAL Use DOWN / UP arrows to adjust Camera 3 mirrored/normal view 6 times: CAM 3 NORMAL Use DOWN / UP arrows to adjust Camera 3 mirrored/normal view 8 times: CAM 4 NORMAL...
- Page 13 MENU OPERATIONS 11 times: PARK Use DOWN / UP arrows to turn on park lines 12 times (if parking lines on): PARK Use DOWN / UP arrows to turn / adjust parking lines Vertically Movement...
- Page 14 MENU OPERATIONS 13 times (if parking lines on): PARK Use DOWN / UP arrows to turn / adjust parking lines width Movement in & out 14 times RESET This will reset factory defaults...
- Page 15 Verity Rear Vision Systems A division of COMPONENT SOLUTION SERVICES (CSS) LIMITED ONE (1) YEAR WARRANTY 1. CSS products’ warranties are not transferable. The warranties apply to the retail consumer for one (1) year and covers against defects in material and workmanship.
- Page 16 Note: if you are a fire/rescue customer in need of tech support after hours or on weekends, leave a message and a technician will return your call as soon as one becomes available. a division of Component Solution Services 56600 Twin Branch Drive Mishawaka, IN 46545 574-807-6002...
