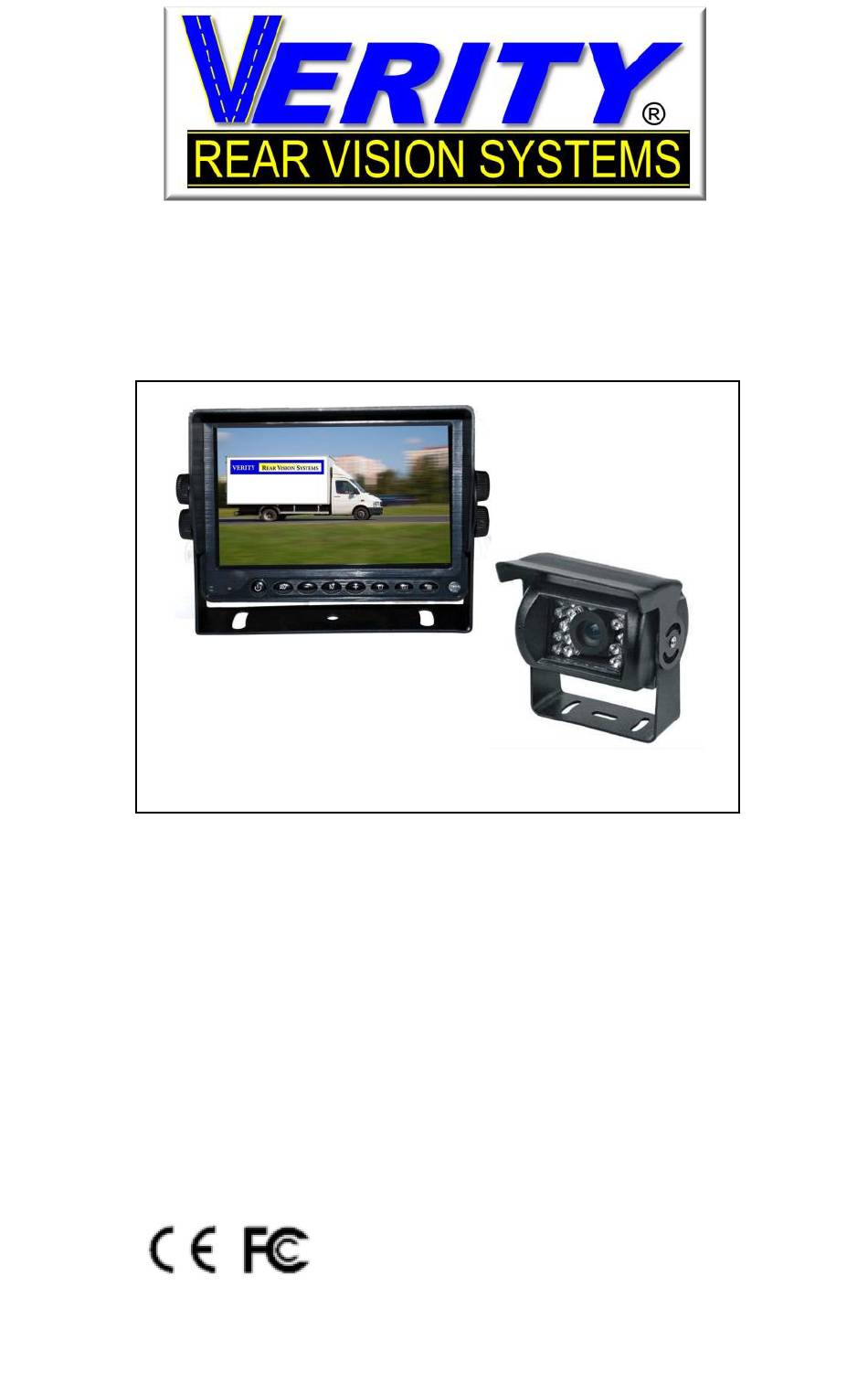

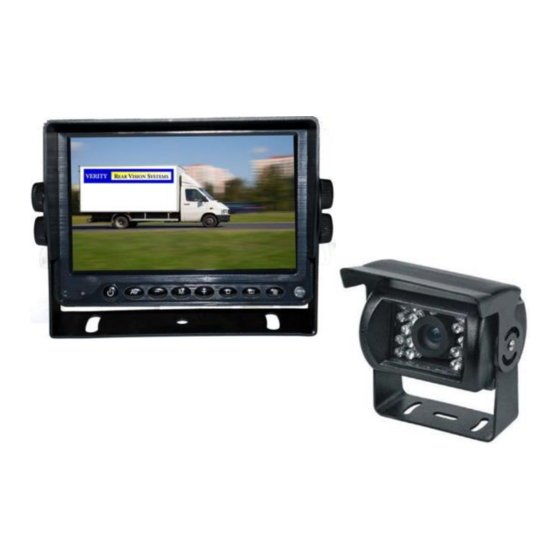

- Page 1 7 INCH DIGITAL MONITOR SYSTEM Part # SM07E Just View It! ® Please read this manual completely before operating the SYSTEM A division of Component Solution Services, LLC. 56600 Twin Branch Dr., Mishawaka, IN 46545 www.verityrvs.com © 2018 Verity Rear Vision Systems...
- Page 2 Read our manual before operating Think Safety or installing. First Most likely, your system came preinstalled, so the installation section would be for reference. Thank you for your purchase of our Verity Rear Vision Systems®. When installed and used properly, your SM07E is designed to deliver you years of trouble-free operation.
- Page 3 WARNING Do not place heavy objects on cables or cover them with carpet or mats. Do not place cables where they can be crushed in any manner. Our systems are designed as a driving aid. Watching videos, broadcasts, DVDs and/or any images other than intended driving assistance cameras is prohibited.
-
Page 4: System Features
SYSTEM FEATURES MONITOR SPECIFICATIONS Screen Size: 7" Digital screen Video Inputs: 3 A/V Brightness: 450 Contrast: 400:1 Removable sunshade View angle: L/R 60°/60° U/D 40°/60° Operating Temperature: -20 C~70 C Storage Temperature: -30C~ +80C Operating Voltage: DC12V ~ DC32V Reverse polarity protection Resolution: 800(H) * 480(V) RGB OSD MENU Function: Reversing image delay time 0~15s;... - Page 5 SYSTEM COMPONENTS I/F Remote 7-Inch HD Digital Panel 65 foot Camera Cable C001E Camera 13-pin to Monitor Cable Manual...
- Page 6 SYSTEM COMPONENTS This monitor can be mounted on the dash and can be mounted on both horizontal and vertical surfaces. Make sure the view is suitable to the driver to observe the images. Take care not to block any necessary viewing area when mounting.
- Page 7 MONITOR / UNVERSAL REMOTE OPERATIONS POWER: Manual turns on monitor. Monitor will also power up on command if a trigger wire is connected AV: Switches between cameras : decreases a selected menu item MENU: Activates operational menu (press repeatedly to move down the options) + : increases selected menu item POWER...
-
Page 8: Connection Operations
CONNECTION OPERATIONS Verity Rear Vision Systems Wire Connection Key 4-pin camera connectors & trigger wires Camera 1 rear (Brown trigger wire) Camera 2 (Green trigger wire) Camera 3 (Blue trigger wire) Red wire to key-on hot (+) 10-32v. DC (fused) Black wire to GND. -
Page 9: Menu Operations
MENU OPERATIONS Press Menu: Press the (+) key to advance to the next menu screens. Menu Screens are PICTURE, VOLUME, OPTION, SYSTEM. Screen 1: Depress menu repeatly to scroll down options. Use the (-) and (+) buttons on monitor to increase or decrease values. - Page 10 3 PICTURE: Picture refers to picture delay. This determines how long a camera stays on past the trigger wire being deactivated (powered). This allows for using the turn signal flasher wire as a trigger. PICTURE PICTURE CAMERA1 CAMERA2 CAMERA3 4 SYSTEM: LANGAUGE The default language is English.
- Page 11 Verity Rear Vision Systems A division of COMPONENT SOLUTION SERVICES (CSS) LIMITED ONE (1) YEAR WARRANTY 1. CSS products’ warranties are not transferable. The warranties apply to the retail consumer for one (1) year and covers against defects in material and workmanship.
- Page 12 Technical Support A service ticket can be filled out on line to supply the quickest service. The service ticket can be easly found on our web site www.verityrvs.com or use the code to the right. Please have the serial number of the system which is found on the back of the monitor when contacting the service department.
