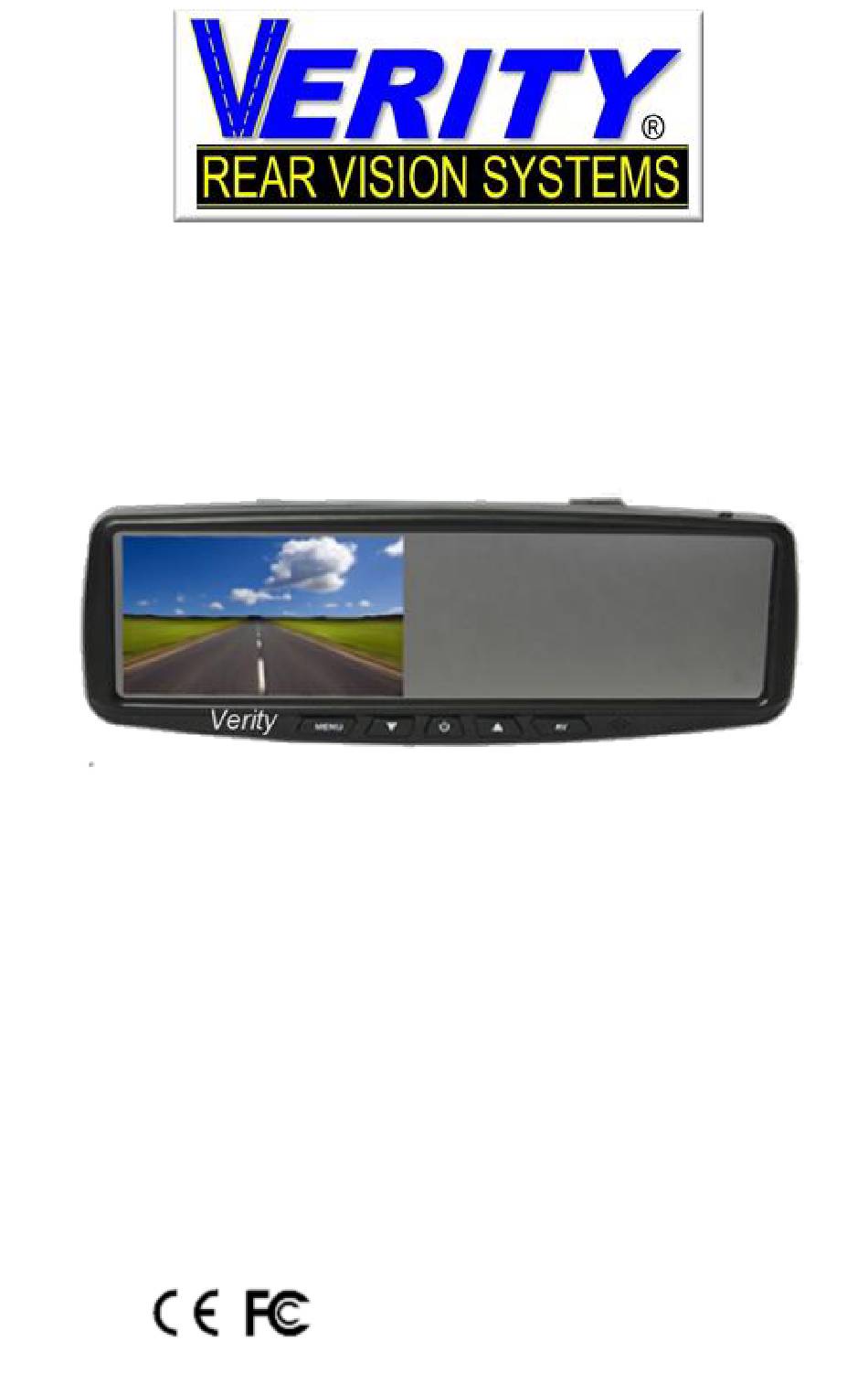

- Page 1 Clip-on or Post Mount Part # SM04 Just View It! ® Please read this manual completely before operating the SYSTEM A division of Component Solution Services, LLC. 56600 Twin Branch Dr., Mishawaka, IN 46545 www.verityrvs.com © 2017 Verity Rear Vision Systems...
- Page 2 ® www.VerityRVS.com © 2019 Verity Rear Vision Systems Component Solution Services LLC., offers the Verity Rear Vision Systems® to meet any requirements and price point within the trucking, specialty vehicles, and RV industry. Verity Rear Vision Systems® is also home to the Supreme View®...
- Page 3 Read our manual before operating Think Safety or installing. First Most likely, your system came preinstalled so the installation section would be for reference. Thank you for your purchase of our Verity Rear Vision ® Systems . When installed and used properly, your monitor is designed to deliver you years of trouble-free operation.
- Page 4 WARNING Do not place heavy objects on cables or cover them with carpet or mats. Do not place cables where they can be crushed in any manner. Our systems are designed as a driving aid. Watching videos, broadcasts, DVDs and/or any images other than intended driving assistance cameras is prohibited.
-
Page 5: System Features

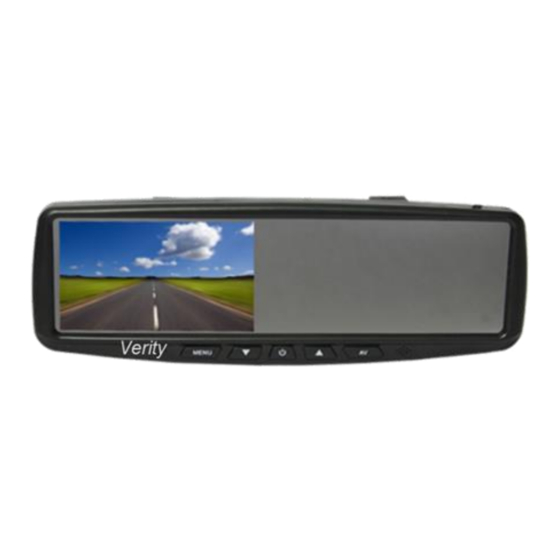

SYSTEM FEATURES MIRROR MONITOR SPECIFICATIONS 4.3"digital panel rear view mirror monitor System: NTSC 2 labeled AV inputs AV 2 can be triggered Brightness:500 Contrast ratio: 400:1 Power voltage: DC12-24V Operating temperature: -20~70 deg Storage temperature: -30~80 deg Combines normal/mirror image Special anti-glaring treatment This monitor fits 70%-80% of GM, Ford, and Toyota vehicle’s windshield clips... -
Page 6: System Components
SYSTEM COMPONENTS 4.3 -Inch Mirror Monitor Monitor Cable 65 foot Camera Camera Cable Manual Mounting Slug... - Page 7 All in .mm Subject to change.
-
Page 8: Mounting Monitor
SYSTEM COMPONENTS This monitor can be mounted in place of the rear-view mirror. Make sure the view is suitable to the driver to observe the images. Take care not to block any necessary viewing area when mounting. Before mounting the system, permanently hook up all connections to ensure proper operation. -
Page 9: Connection Operations
CONNECTION OPERATIONS Verity Rear Vision Systems Wire Connection Key 4-pin camera connectors & trigger wires Camera 2 (Green trigger wire Red wire to key-on hot (+) 12-32v. DC (fused) Black wire to GND. (-) Green wire to positive back-up light BE SURE TO ALIGN MONITOR CABLE CONNECTION If force is applied to this connection when not aligned, it may damage plug pins and void the warranty. -
Page 10: Menu Operations
MENU OPERATIONS Menu: BRIGHTNESS BRIGHT llllllllllllllllllll------------- Use DOWN / UP arrows to adjust brightness CONTRAST CONTRAST llllllllllllllllllll------------- Use DOWN / UP arrows to adjust contrast COLOR COLOR llllllllllllllllllll------------- Use DOWN / UP arrows to adjust color RESET Restores all perset factory settings... - Page 11 Verity Rear Vision Systems A division of COMPONENT SOLUTION SERVICES (CSS) LIMITED ONE (1) YEAR WARRANTY 1. CSS products’ warranties are not transferable. The warranties apply to the retail consumer for one (1) year and covers against defects in material and workmanship.
- Page 12 Note: if you are a fire/rescue customer in need of tech support after hours or on weekends, leave a message and a technician will return your call as soon as one becomes available. a division of Component Solution Services 56600 Twin Branch Drive Mishawaka, IN 46545 574-807-6002 Toll Free 844-875-4799 We at Verity Rear Vision Systems would like to personally thank you for purchasing our product.
