TDR2050

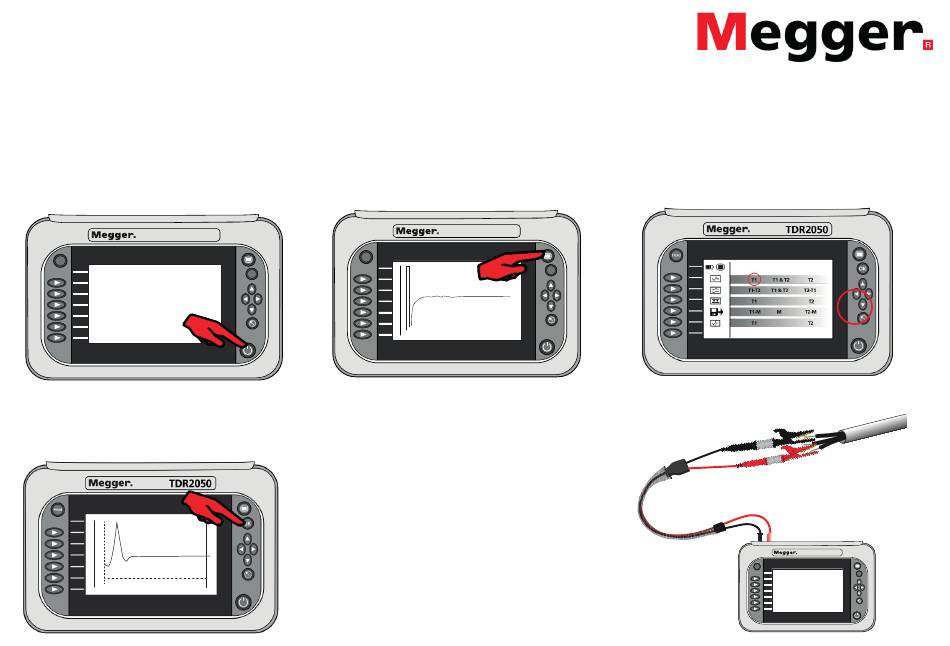

1. POWER UP
Press and hold to turn TDR on
TDR2050
Hold
c. Press OK key to select
Quick Start Guide
2. SELECT TEST MODE
a. Press to select
Hold
OK
3. CONNECTION
For best performance ensure that the
test leads are not unduly separated
Only use Megger approved fused
test leads
Ensure that the test leads are in good
condition and working order
b. Use cursor keys to select test mode
required - choose T1
TDR2050
OK
TDR2050
Hold
OK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Megger TDR2050
Summary of Contents for Megger TDR2050
- Page 1 3. CONNECTION c. Press OK key to select For best performance ensure that the test leads are not unduly separated Only use Megger approved fused test leads Ensure that the test leads are in good condition and working order TDR2050...
- Page 2 4. SELECT PARAMETERS a. Press spanner/setting symbol TDR2050 TDR2050 Hold Hold VF = 0.54R Z = 140 = 40ns 100m VF = 0.54R Z = 140 = 40ns 100m AUTO AUTO AUTO b. Set correct velocity factor c. Set cable impedance...
- Page 3 5. MOVING CURSOR TDR2050 Hold C1-C2 To select cursors press a. Cursor choice. b. Swap between cursors. Press C1 - C2 buttons to select cursor to move. c. Use left/right arrows to move d. Cursor position on trace. Move cursor e.
- Page 4 0.4 in 0.53 PILC 0.5 in 0.55 Megger Instruments Limited, Archcliffe Road, Dover, Kent, CT17 9EN, England T +44 (0)1 304 502101 F +44 (0)1 304 207342 Part No. 1005-021 Megger is a registered trademark TDR2050_QS_EN_V01 Printed in England www.megger.com...
