Summary of Contents for HIKVISION PTZ

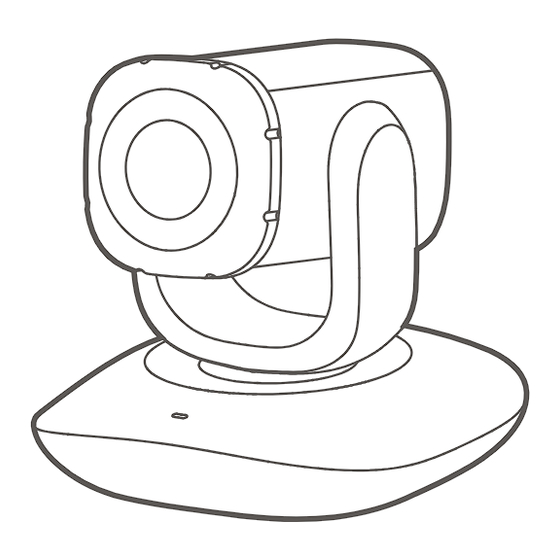

- Page 1 Video Conference PTZ Camera...
-
Page 2: Packing List
Packing List Battery Power Adapter Extension Cable Remote Control Quick Start Guide USB Cable Screws Camera Bracket... - Page 3 Functions Supports four modes. The image flips as the Image Flip following order every time pressing the button. "F" is the default status. Mute One-touch Focus Turn on/off the audio of the remote control or the camera. Pan/Tilt Control Adjust the focus manually. Zoom in/out Pan/tilt the camera Focus...
- Page 4 Indicator If the preset 0 is predefined, the camera moves to the set position after powering on. Microphone If not, the camera moves to the default position after powering on. 1. Adjust the image by remote control. 2. Press and hold a preset number for 3 seconds, and the indicator flashes twice.
- Page 5 Microphone Lens Indicator Kensington Lock Power Interface USB Type C 1/4-20UNC Screw Hole Lashing Eye The lock shall be purchased When the indicator turns to red, it means the device is standby. When the indicator turns to blue, it means the device is working normally.
- Page 6 Connection USB Cable Power Adapter Extension Cable...
- Page 7 Installation Table Mounting...
- Page 8 Wall Mounting...
- Page 11 Others...
-
Page 12: Angle Adjustment
Angle Adjustment... - Page 13 OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,...
- Page 14 Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
-
Page 15: Safety Instruction
Safety Instruction Warings Laws and Regulations The device should be used in compliance with local laws, electrical safety regulations, and fire prevention regulations. Electrical Safety The socket-outlet shall be installed near the equipment and shall be easily accessible. Battery CAUTION: Risk of explosion if the battery is replaced by an incorrect type. Improper replacement of the battery with an incorrect type may defeat a safeguard (for example, in the case of some lithium battery types). - Page 16 Cleaning Please use a soft and dry cloth to clean the interior and exterior surfaces. Do not use alkaline detergents. Using Environment When any laser equipment is in use, make sure that the device lens is not exposed to the laser beam, or it may burn out. DO NOT aim the lens at the sun or any other bright light.
- Page 17 UD25880B...
