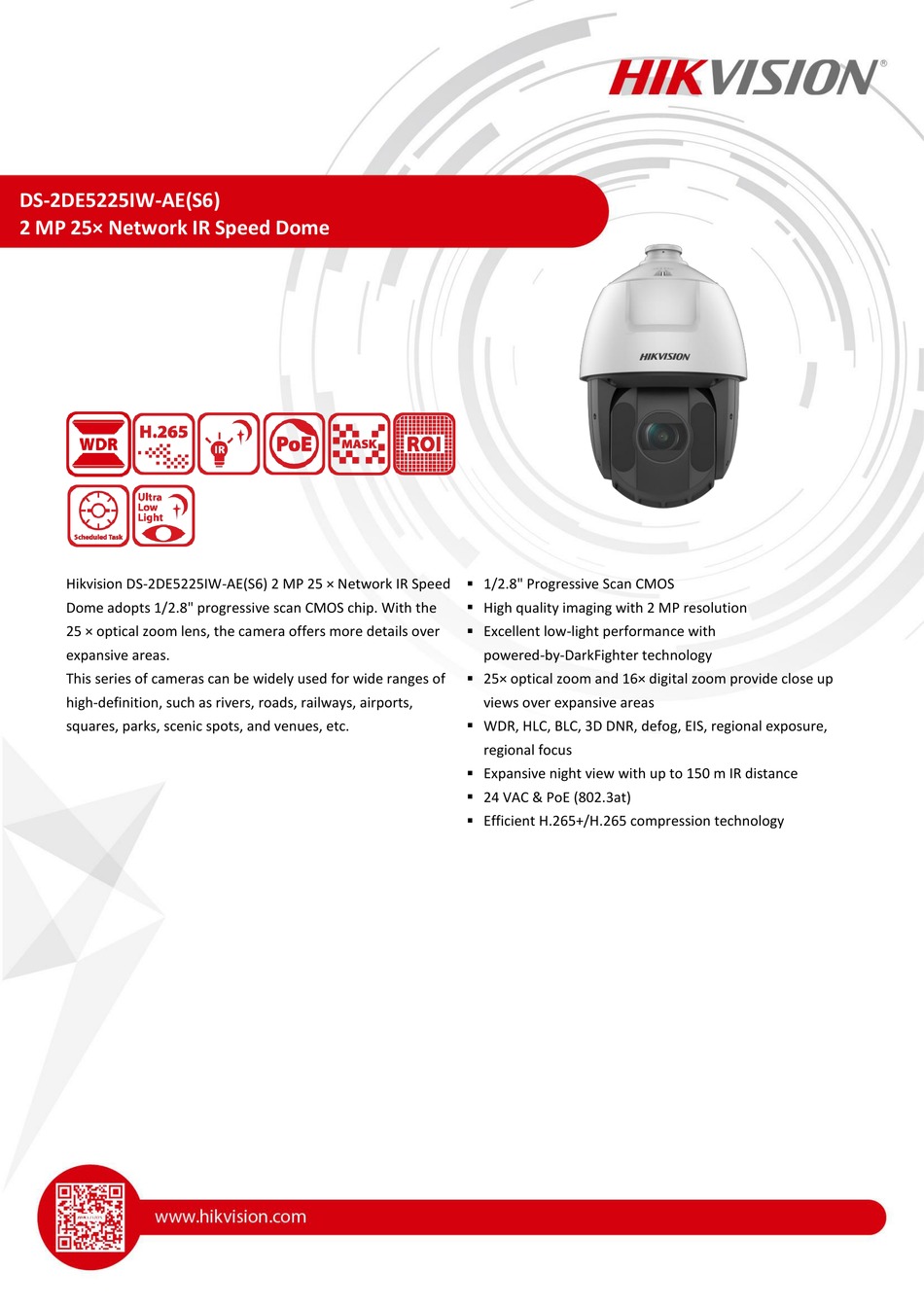

DS-2DE5225IW-AE(S6)
2 MP 25× Network IR Speed Dome
Hikvision DS-2DE5225IW-AE(S6) 2 MP 25 × Network IR Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With the
25 × optical zoom lens, the camera offers more details over
expansive areas.
This series of cameras can be widely used for wide ranges of
high-definition, such as rivers, roads, railways, airports,
squares, parks, scenic spots, and venues, etc.
1/2.8" Progressive Scan CMOS
High quality imaging with 2 MP resolution
Excellent low-light performance with
powered-by-DarkFighter technology
25× optical zoom and 16× digital zoom provide close up
views over expansive areas
WDR, HLC, BLC, 3D DNR, defog, EIS, regional exposure,
regional focus
Expansive night view with up to 150 m IR distance
24 VAC & PoE (802.3at)
Efficient H.265+/H.265 compression technology

Advertisement

loading

Related Manuals for HIKVISION DS-2DE5225IW-AE(S6)

Summary of Contents for HIKVISION DS-2DE5225IW-AE(S6)

  • Page 1 DS-2DE5225IW-AE(S6) 2 MP 25× Network IR Speed Dome Hikvision DS-2DE5225IW-AE(S6) 2 MP 25 × Network IR Speed 1/2.8" Progressive Scan CMOS  Dome adopts 1/2.8" progressive scan CMOS chip. With the High quality imaging with 2 MP resolution  25 × optical zoom lens, the camera offers more details over Excellent low-light performance with ...

  • Page 2: Specification

    DORI  The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015. DORI Detect Observe...
  • Page 3 Preset Freezing Video Main stream: H.265+/H.265/H.264+/H.264 Video Compression Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline profile/Main profile/High profile H.265 Type Main profile Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 8 fixed regions for each stream 50 Hz: 25 fps (1920 ×...

  • Page 4: Available Model

    Image Enhancement BLC, HLC, 3D DNR Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable Regional Focus Regional Exposure Interface Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB 1 input (line in), max.
  • Page 5 Dimension  Accessory  Included  DS-1602ZJ Optional  DS-1604ZJ-BOX- DS-1660ZJ DS-1663ZJ DS-1604ZJ DS-1661ZJ POLE...
  • Page 6 DS-1673ZJ DS-1604ZJ-corner DS-1682ZJ DS-1005KI DS-1619ZJ DS-1604ZJ-BOX- DS-1662ZJ DS-1681ZJ DS-1100KI DS-1667ZJ CORNER DS-1604ZJ-pole DS-1604ZJ-box *DS-1673ZJ should be used with DS-1661ZJ or DS-1602ZJ.
