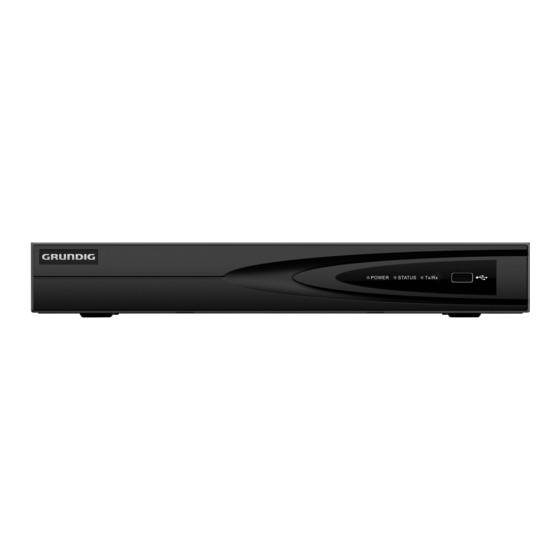

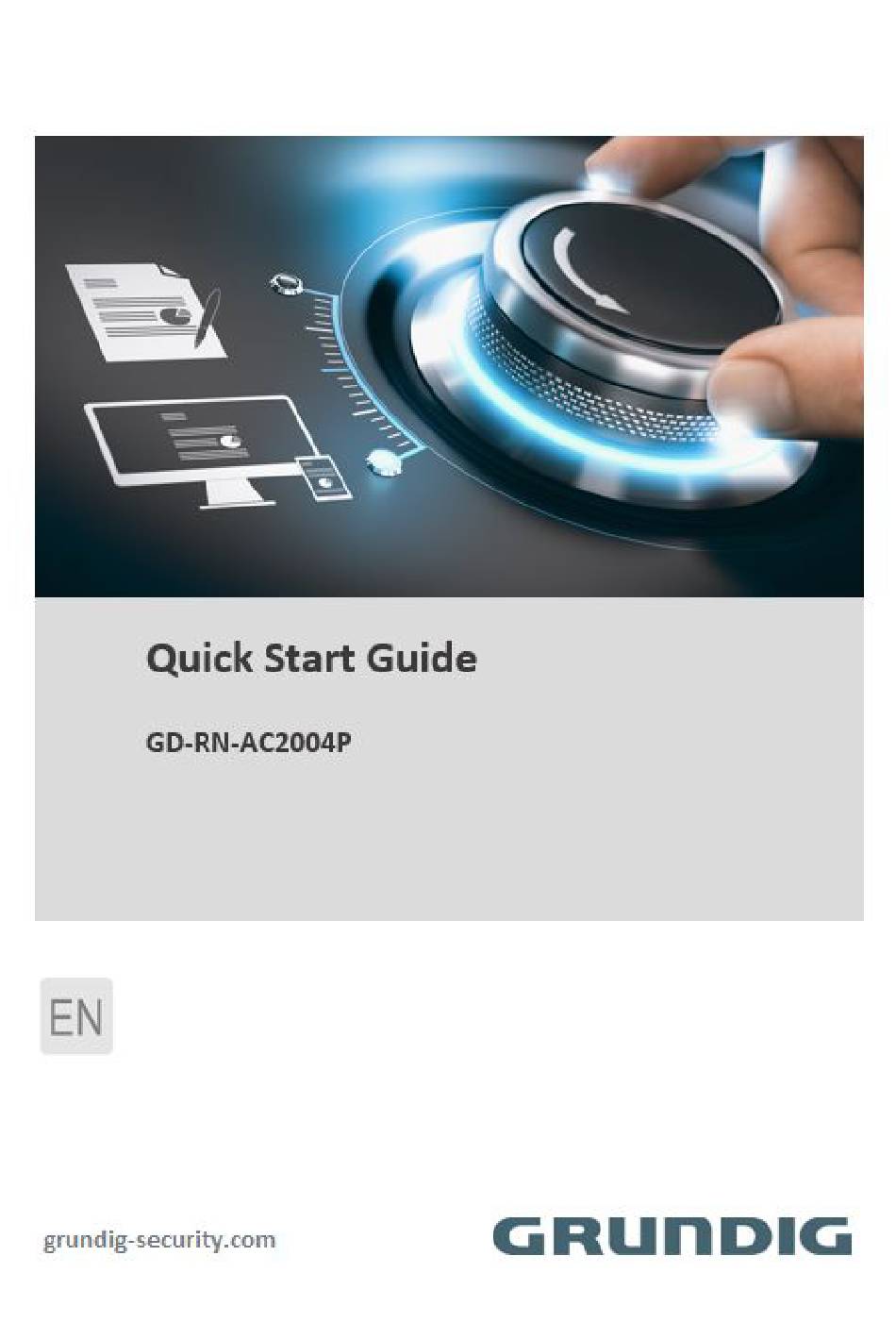

Grundig GD-RN-AC2004P Quick Start Manual
  1. Manuals
  2. Brands
  3. Grundig Manuals
  4. Network Hardware
  5. GD-RN-AC2004P
  6. Quick start manual

Grundig GD-RN-AC2004P Quick Start Manual

Hide thumbs Also See for GD-RN-AC2004P:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD-RN-AC2004P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grundig GD-RN-AC2004P

Summary of Contents for Grundig GD-RN-AC2004P

  • Page 2 Please find the latest version at WWW.GRUNDIG-SECURITY.COM Limitation of Liability / Legal Disclaimer Abetechs GmbH (Grundig Security) undertakes all reasonable efforts to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s...
  • Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open- source software licenses. For detailed information about the...
  • Page 4 You may obtain the complete corresponding open-source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety and Installation Instruction...
  • Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 6 Special Installation Instructions for Recorders (NVRs and DVRs) Make sure that the last actual firmware is installed on the IP Device. You may get the actual firmware from www.grundig-security.com website or from tech-support@grundig-security.com. Make sure that the product is secured after installation and locate the recorder in safe places where children are not able to reach it.
  • Page 7 Only use an HDD for this device that is recommended by GRUNDIG. The USB flash drive can only be connected to the USB-port of the device. Use the device in conjunction with an UPS if possible. To clean the product, gently wipe the outside with a clean dry cloth.

  • Page 8: Table Of Contents

    Table of content 1 Rear Panel Interfaces Description ..........8 2 Installation and Connections ............9 NVR Installation ..............9 HDD Installation ..............9 3 Menu Operation ................11 3.1 Startup ................11 Activate Device ..............11 Set Unlock Pattern ............. 12 User Login .................

  • Page 9: Rear Panel Interfaces Description

    1 Rear Panel Interfaces Description The rear panel interfaces vary with different models. Refer to Table 1-1 for the common interface description of rear panels. Common Interfaces Description of Rear Panels Item Description Item Description BNC interface for HD and VIDEO BNC connector VIDEO IN...

  • Page 10: Installation And Connections

    2 Installation and Connections NVR Installation During installation of the NVR: Use brackets for rack mounting. Ensure ample room for audio and video cables. When routing cables, ensure the bend radius of the cables are no less than five times of its diameter. Allow at least 2 cm (≈0.75 inch) of space among racks mounted devices.
  • Page 11 Note You can repeat the steps above to install other HDDs. Reinstall the device cover and fasten screws. Connect Remove Fix HDD Cable Cover...

  • Page 12: Menu Operation

    3 Menu Operation 3.1 Startup Proper startup is crucial to expand the life of NVR. It is HIGHLY recommended to use an uninterruptible Power Supply (UPS) with the device. Plug power supply into an electrical outlet. Press the power button (certain models may have power button on the front or rear panel).

  • Page 13: Set Unlock Pattern

    Click OK to save the password and activate the device. Set Admin Password next steps: When you have enabled Reserved E-mail Settings, continue to set the reserved email for the future password resetting. Set Unlock Pattern Admin user can use the unlock pattern to login. You can configure the unlock pattern after the device is activated.

  • Page 14: User Login

    Set the Unlock Pattern User Login You have to log in to the device before operating the menu and other functions. Select User Name. Enter password for the selected user. Click OK to log in. Note For the admin, if you have entered the wrong password for 7 times, the account will be locked for 60 seconds.

  • Page 15: Network Settings

    Network Settings 3.6.1 Configure TCP/IP Settings TCP/IP settings must be properly configured before you can operate the device over a network. Steps 1. Go to System → Network → TCP/IP TCP/IP setting 2. Configure network parameters as needed. Note Check Enable DHCP to obtain IP settings automatically if a DHCP server is available on the network.

  • Page 16: Add Ip Cameras

    Check Enable to activate the function. Then the service terms will pop up. Scan the QR code to read the service terms and privacy statement. Check the SCMS service will require internet access. Please read Service Terms and Privacy Statement before enabling the service if you agree the service terms and privacy statement.

  • Page 17: Live View

    Enter IP address, protocol, management port, and other information of the IP camera. Click OK. Add IP Camera Live View Enter the live view mode You can select a window and double click a camera from the list to play the video from the camera in the selected window.

  • Page 18: Recording Settings

    on/off, digital zoom, live view strategy, show information and start/stop recording. Recording Settings Before you start Make sure that the disk has already been installed. Steps 1. Go to Configuration > Record > Schedule. 2. Select a camera. 3. Check Enable Schedule. 4.
  • Page 19 Figure 3-5 Playback 2. Select camera(s) in the list. 3. Double click a date on the calendar. 4. Use the toolbar at the bottom to control the playing progress...

  • Page 20: Accessing By Web Browser

    4 Accessing by Web Browser You can get access to the device via web browser. The following web browsers are supported: Internet Explorer 6.0, 7.0, 8.0, 9.0 & 10.0, Apple Safari, Mozilla Firefox, and Google Chrome. The supported resolutions include 1024*768 and above. Note The use of the product with Internet access might be under network security risks.
  • Page 21 If the device is already activated, enter the user name and password to log in. Follow the installation prompts to install the plug-in before viewing the live video and managing the device. Note You may have to close the web browser to finish the installation of the plug-in.
