Important Information
Electrical Supply and Wiring to the Air Curtain
All electrical wiring and connections MUST be carried out by a competent qualified electrician in
accordance with the latest edition of wiring regulations and local statutory codes/regulations if
applicable.
A local isolator having a contact separation of at least 3mm on all poles must be fitted in the
electrical supply to the air curtain and located in an accessible position adjacent to the unit.
All supply cables, circuit breakers and other electrical installation equipment must be correctly
sized for the air curtain model being installed – refer to Technical Specifications section.
The air curtain must be earthed.
CAUTION – Some parts of this product can become hot and cause burns and has moving
parts. Particular attention has to be given where children and vulnerable people are present

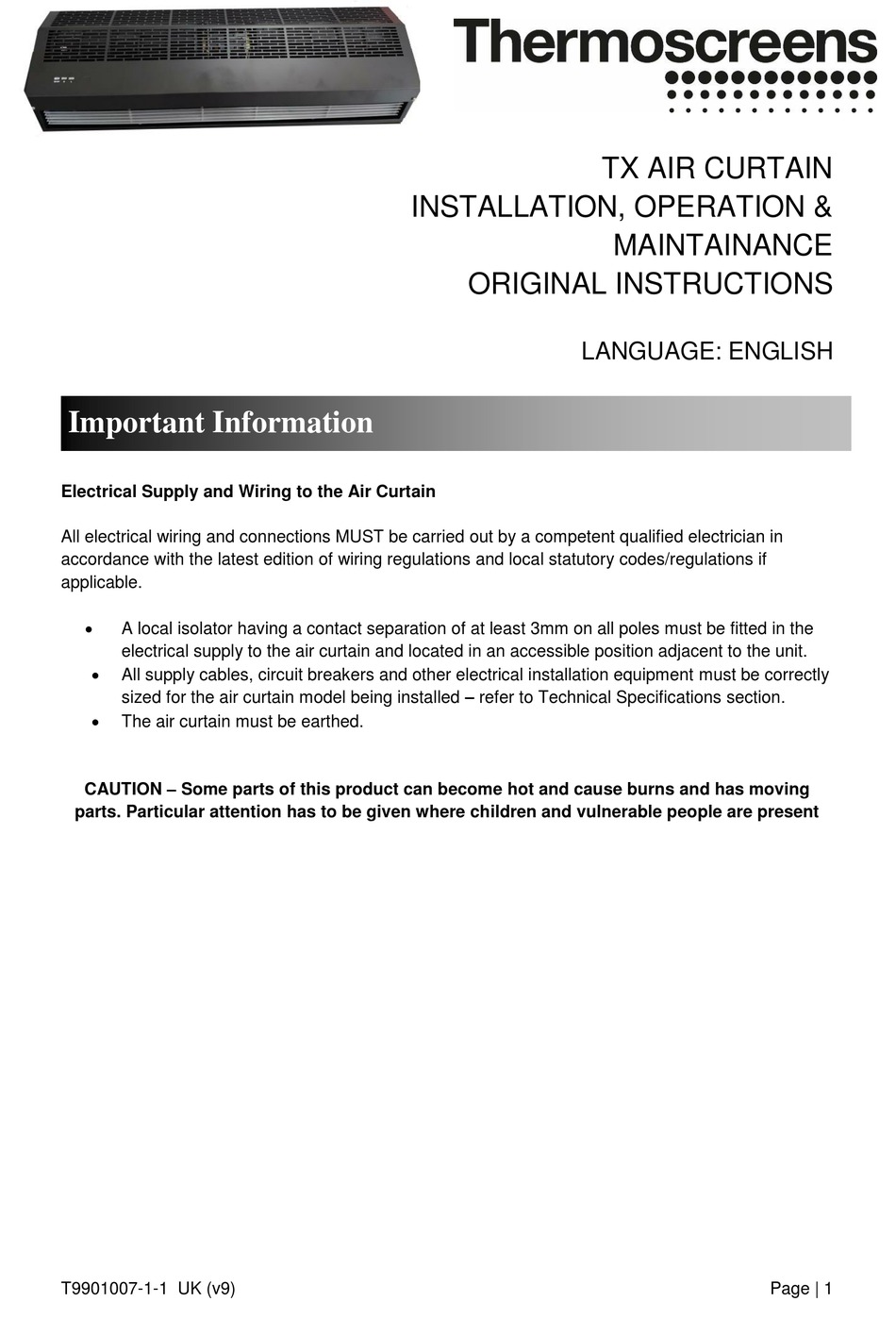

T9901007-1-1 UK (v9)
INSTALLATION, OPERATION &
ORIGINAL INSTRUCTIONS

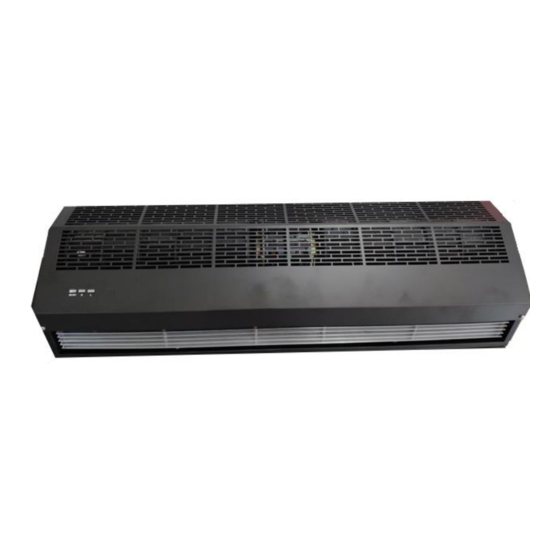

TX AIR CURTAIN
MAINTAINANCE
LANGUAGE: ENGLISH
Page | 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Thermoscreens TX36AFAL006D
Summary of Contents for Thermoscreens TX36AFAL006D
- Page 1 TX AIR CURTAIN INSTALLATION, OPERATION & MAINTAINANCE ORIGINAL INSTRUCTIONS LANGUAGE: ENGLISH Important Information Electrical Supply and Wiring to the Air Curtain All electrical wiring and connections MUST be carried out by a competent qualified electrician in accordance with the latest edition of wiring regulations and local statutory codes/regulations if applicable.
-
Page 2: Warranty
Website: www.thermoscreens.ca Established in the 1960s, Thermoscreens is a leading air curtain manufacturer that exports to over 60 countries worldwide. As with all our products, the TX range of air curtains is designed with energy efficiency in mind. The units are designed to be surface mounted inside a building and located horizontally over a doorway. -
Page 3: Delivery Contents
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall only be done by competent people. -
Page 4: Installation
INSTALLATION The air curtain is designed to be located horizontally over a doorway. It must not be installed outside of the building. Location Mount the air curtain above and as close to the doorway as possible, with: the discharge grille not more than 9’ or less than 6’ above floor level ... -
Page 5: Ceiling Suspension
Step 2 Drill and bolt the wall bracket to the wall, using suitable fixings referring to the table below for correct position. Fig 4 Step 3 Tighten all fixing bolts until the air curtain is safely secured to the wall. Fig 5 Step 4 Fix the magnetic door switch to the door and frame using the provided screws and wire into the air curtain unit... -
Page 6: Commissioning The System
Step 2 Fix the air curtain mounting bracket to the angle brackets. The height can be adjusted by up to 3.5 inches. Fig 7. Step 3 Hook the air curtain onto the mounting bracket as shown. Fig 8. Step 4 Fix the magnetic door switch to the door and frame using the provided screws and wire into the air curtain unit Step 5 Plug the product into the power receptacle WARNING:... -
Page 7: Service And Maintenance
Should this activate, unplug the device and allow it to cool down for a minimum of 3 hours. Investigate the cause of the overheating and reconnect the device when the cause has been fixed. If the thermal protective device keeps overheating then contact Thermoscreens or an authorised reseller. SERVICE & MAINTENANCE... -
Page 8: Technical Specifications
(Commissioning). TECHNICAL SPECIFICATIONS Electrical Data Rated Heat Output Air Curtain Model Electrical Supply Electrical [Low/High] Weight (V/ph/Hz) Power Input (kW) (lb) TX36AFAL006D 120/1/60 TX48AFAL006D 120/1/60 TX60AFAL006D 120/1/60 Product Performance Maximum Maximum air Sound air velocity Volume curtain Pressure Level... -
Page 9: Mechanical Drawing
MECHANICAL DRAWING Model TX36AFAL006D 17.3 10.2 TX48AFAL006D 17.3 10.2 TX60AFAL006D 10.2 All dimensions shown are in inches TX Product Instructions v1.0 Page | 9...
