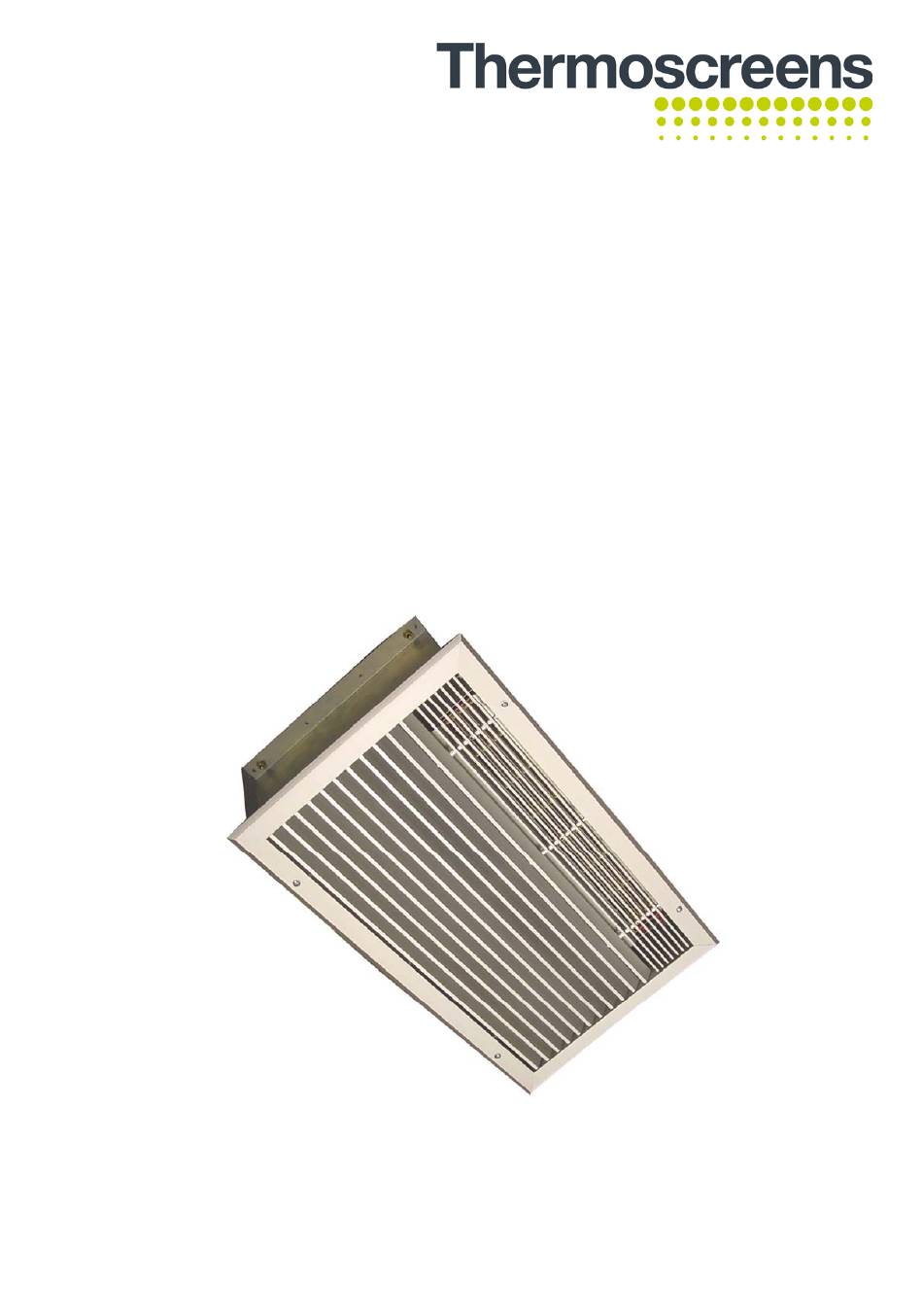

- Page 1 Page 1 of 5 T600/T800 Series. Overdoor Heaters FOR INDOOR USE ONLY INSTALLATION AND OPERATING INSTRUCTIONS PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING INSTALLATION! Engineering change number: 03/00092 Dwg No. 4007100-1 Issued: 16/01/04...

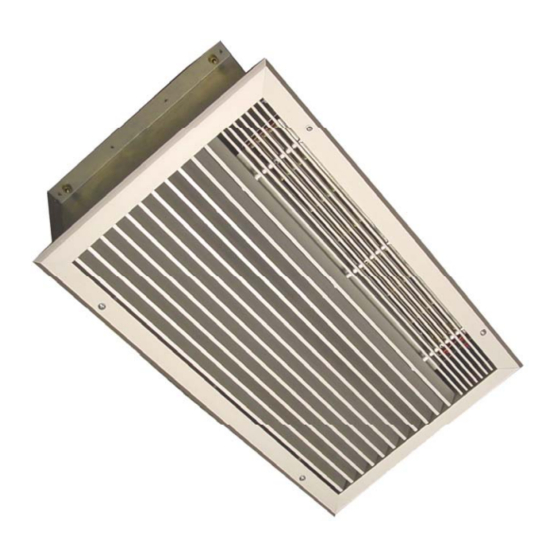

- Page 2 Page 2 of 5 UN-PACKING YOUR RECESSED AIR-CURTAIN The following items are supplied. • RECESSED AIR-CURTAIN • REMOTE SWITCH UNIT C/W 3.0m lead (The remote switch unit is located inside of the air curtain). • RECESSED GRILLE If anything is missing or damaged please contact your place of purchase immediately. For your records Date of purchase: Place of purchase:...
- Page 3 Page 3 of 5 INSTALLATION OF YOUR T600ER & T800ER UNIT • Location The T600ER & T800ER are designed for recessing/mounting within a ceiling void or bulkhead (minimum height of 1.8 – to maximum height of 2.3m. When mounting ensure that the air discharge is situated as close to the door as possible, the T600ER &...
- Page 4 In the case of a fault condition do not attempt to reset the thermal cut out or replace the fuse, arrange for a Thermoscreens appointed engineer or certified electrician to attend the unit to investigate the reason why the thermal cut outs/fuse have operated, once the cause has been determined and rectified, proceed to reset/replace the thermal cut out/fuse and function test the unit.
- Page 5 Always disconnect/isolate the mains electricity supply before maintaining or repairing this equipment (Note: All maintenance/repairs should be carried out by a competent electrician or Thermoscreens service agent) To ensure the air curtain operates at full efficiency the inlet/outlet grilles, impellers, housings and motors must be kept free of dust and debris.
