Summary of Contents for Steadicam Ultra2
- Page 1 Gimbal: Ultra /Shadow 2® ™ p/n LIT-257010-D...

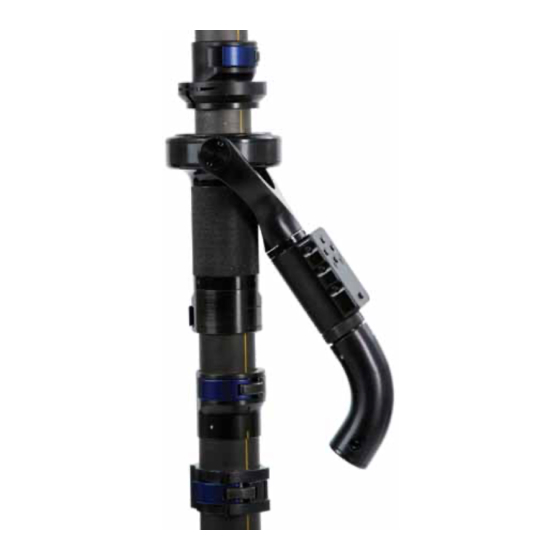

- Page 2 The gimbal The Ultra gimbal (also used on the The Gimbal & 2® Shadow series stabilizer) uses high- ™ Centering precision and high load bearings, and the body, yoke, and handle are precisely registered to each other. The yoke’s shape and contoured edges extends the range of motion without interference and promotes a better operating grip over a wider range.
- Page 3 Centering the gimbal Tip: We urge you to test your gimbal’s centering • Place the gimbal on the docking stud (as you would for normal balancing), give with a normal drop yourself a 3 to 4 second drop time, and aim the camera along a line through the two time, and then with bearings in the yoke, as shown in the left photo.
- Page 4 The Tiffen Company, 90 Oser Avenue, Hauppauge, NY 11788 631-273-2500 • 1-800-645-2522 • www.tiffen.com Tiffen Steadicam Operations, 2815 Winona Avenue, Burbank, CA 91504 Phone: 818-843-4600 • 818-843-8321 © The Tiffen Company, LLC, manual version 7/1/2010...
