Summary of Contents for Steadicam G-70x Arm
- Page 1 G-70x Arm: Ultra /Shadow stabilizers ™ 2® ™ p/n LIT-257010-J...

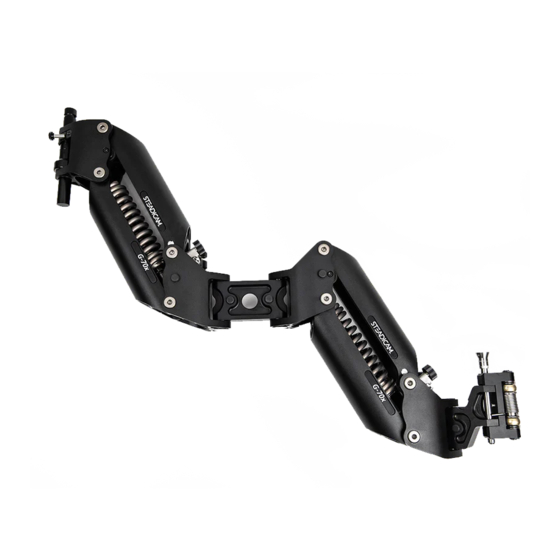

- Page 2 The G-70x ™ The G-70x arm has a total lifting capacity of 12 to 70 pounds and a 29” boom range. G-70x ™ ™ The arm also incorporates a ride control, a quick post change mechanism, an arm post drag control, and a kickback link. Arm post release lever Arm post Forearm section...
- Page 3 The two side to side screws work independently of one another. Do not tighten the lower screw, but be sure it is all the way in, and then back it out 1/8th of a turn to prevent binding. In and out Looking down at the top “in-and-out”...
- Page 4 Basic adjustments: Ride and Lift Each arm segment has two adjusting If you can, preset Ride close to the G-70x ™ knobs: desired level of iso-elasticity in both arm Ride and Lift sections before picking up the sled and The Ride knob alters iso-elasticity from a adjusting Lift.
- Page 5 Adjustment of Lift: Some adjustment tips: Note that the Lift knob has a range of adjustment of 32 All lift adjustments must be done while When adjusting from a light load to a turns. This means that each wearing the rig, so pick up the sled. heavy load: It helps to have an assistant turn of the Lift knob will add Stand in the classic Missionary position...
- Page 6 The G-70x arm “kick back” connector ™ To accommodate both regular and goofy-foot operators, the two mating parts held by G-70x ™ the “parachute” pin can fit together in two ways. The design intent is to “kick back” “Kick Back” the upper arm segment as shown in the photos.
- Page 7 With a back mounted vest Operators with “back mounted” vests should also orient the connection to send the arm to the inside. When using a back mounted vest, set the position, making the upper arm section If you leave the forearm fully iso, it kickback link inwards as shown in the more likely to go over centers and lock has the “helper torque”...
- Page 8 The Tiffen Company, 90 Oser Avenue, Hauppauge, NY 11788 631-273-2500 • 1-800-645-2522 • www.tiffen.com Tiffen Steadicam Operations, 2815 Winona Avenue, Burbank, CA 91504 Phone: 818-843-4600 • 818-843-8321 © The Tiffen Company, LLC, manual version 7/1/2010...
