AirLive AC.Top1 How To Set

Download this manual

Q: How to set two AC.Tops in WDS mode by 5GHz wireless?

A: We recommend please set your topology as Router

<-wired->AC.Top1 (WDS) <-wireless-> AC.Top2 (WDS)

Before the Setting:

1. Please upgrade the AC.TOP's firmware to V1.08

2. The AP.TOP1 & AC.TOP2 need connect to different switch and

notebook to avoid the network loop.

3. Before the setup, please reset the AC.TOP to default.

Please refer the below steps for 5G WDS connection:

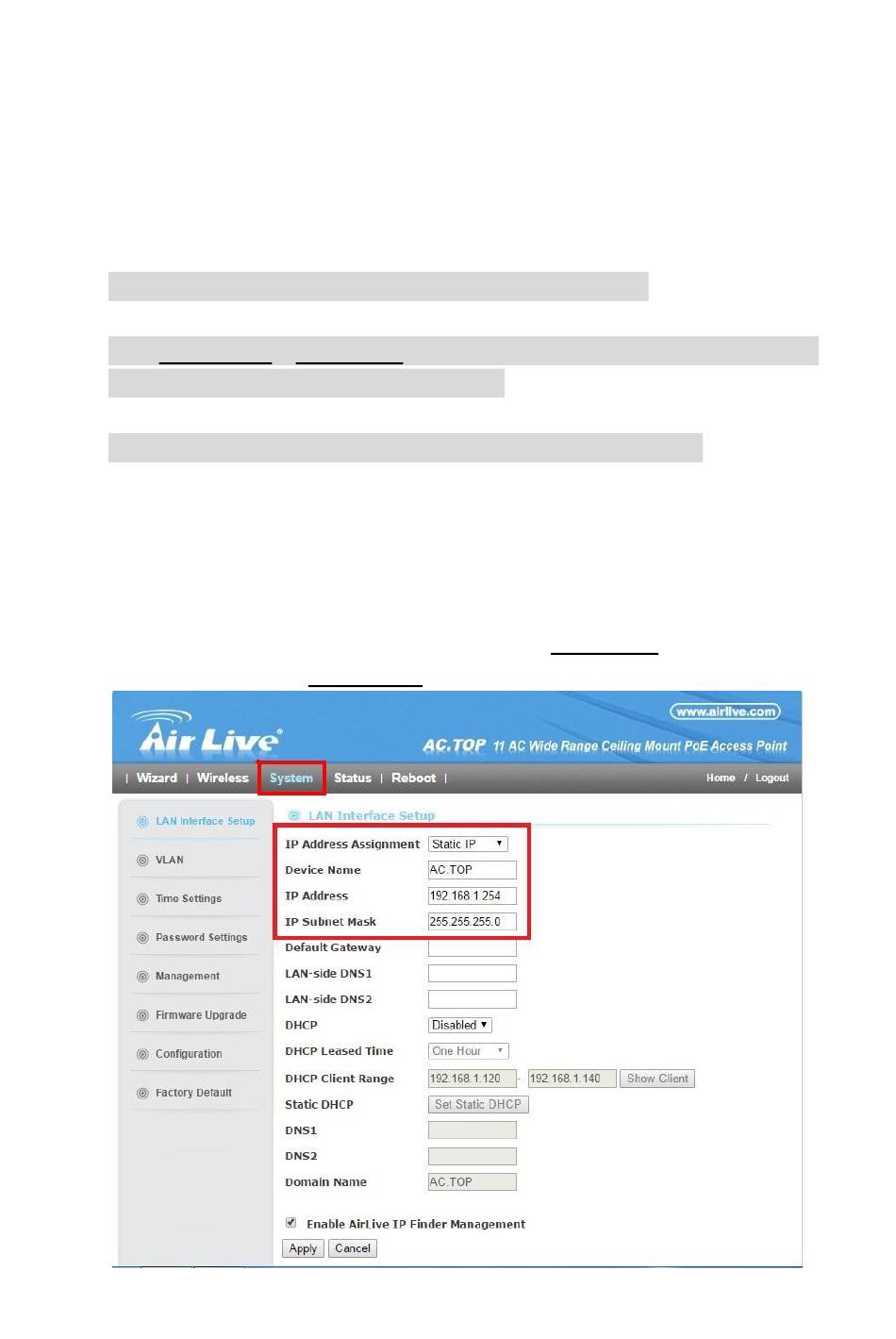

1. Set each AC.TOP into different LAN IP address, but the same

subnet. for example: 192.168.1.131 for AC.TOP1 and

192.168.1.135 to AC.TOP 2

Need help?

Do you have a question about the AC.Top1 and is the answer not in the manual?

Page 1 3. Before the setup, please reset the AC.TOP to default. Please refer the below steps for 5G WDS connection: 1. Set each AC.TOP into different LAN IP address, but the same subnet. for example: 192.168.1.131 for AC.TOP1 and 192.168.1.135 to AC.TOP 2...
Page 2 2. Make sure the DHCP server of AC.TOP1 and AC.TOP2 is disabled. 3. Please set the 5GHz wireless mode to WDS repeater mode 4. The Band of the two AC.TOPs must be the same. If you set one as AC/A/N, please also set another one as...
Page 3 5. Set the same 5GHz channel of AC.TOP1 and AC.TOP2 Set the same encryption and key for AC.TOP1 and AC.TOP2...
Page 4 We recommend please disable the WDS encryption 7. In WDS Setup , Please input the AC.TOP1’s 5G Local MAC address to AC.TOP2’s WDS AP List Moreover, input the AC.TOP2’s MAC address to AC.TOP1...
Page 5 WDS AP List...
Page 6 Notification: 1. Once the WDS connection success, if you want to change the wireless settings (ex: RF power, channel, security key,SSID), Please remember to power off another AC.TOP. For example, if you want to change SSID of the AC.TOP 1, Please disconnect the AC.TOP2 first.
