Summary of Contents for AirLive AirDual-AC12

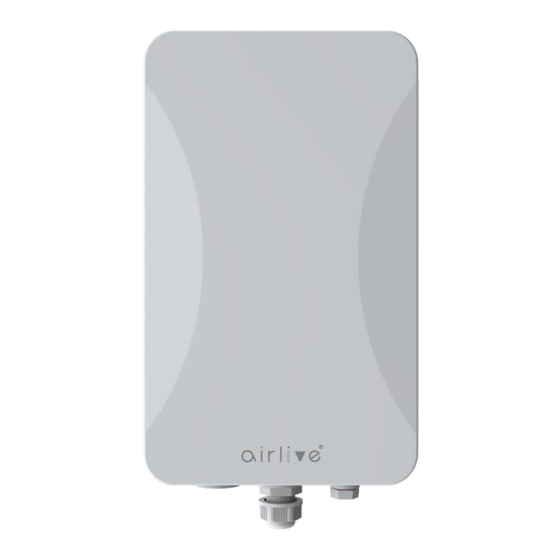

- Page 1 AirDual-AC12 Wi-Fi 5 AC 1200Mbps Outdoor CPE (Patch antenna) AWOD-12ACi Wi-Fi 5 AC 1200Mbps Outdoor CPE (Omni antenna) AWOD-30AXi Wi-Fi 6 AX 1800Mbps Outdoor CPE (Omni antenna) Web Manual Ver. 1.0...
-
Page 2: Table Of Contents
2.2 AWOD-30AXi Port description 2.3 AirDual-AC12, AWOD-12ACi, AWOD-30AXi Hardware installation Chapter 3 Quick Installation Guide 3.1 AirDual-AC12, AWOD-12ACi, AWOD-30AXi , Web login Management 3.2 Configuring the IP Address Manually 3.3 Starting Setup in the Web UI Chapter 4 Configure the CPE 4.1 Main Home Page... - Page 3 Chapter 4.7 Network (AP Mode) 4.7.1 LAN Settings 4.7.2 Cloud 4.8 Network (Gateway Mode) 4.8.1 LAN Settings 4.8.2 Static DHCP 4.8.3 WAN 4.8.4 WAN DHCP 4.8.5 WAN Advanced Settings 4.8.6 WAN Static IP 4.8.7 WAN PPPoE 4.8.8 Cloud 4.9 Firewall (Gateway Mode Only) 4.9.1 URL Filter 4.9.2 IP Filter 4.9.3 MAC Filter...
-
Page 4: Product Introduction
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Chapter 1. Product Introduction Package Contents AirDual-AC12 and AWOD-12ACi Before using this CPE, please check if there is anything missing in the package, and contact your dealer of purchase to claim for missing items: ⚫... -
Page 5: Product Specification Airdual-Ac12
• Repeater TBD cm(L*W*H) Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) • Package content: TBD • /PPTP(Dual Access) 1 x AirDual-AC12, PoE Injector, Install Accessory, Wireless LAN Cable, User Manual SSID broadcast, SSID hide • Ordering information Multiple SSID up to 8 •... -
Page 6: Product Specification Awod-12Aci
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Product Specification AWOD-12ACi Model AWOD-12ACi Device Interface Network Function Main Chip: Qualcomm QCA9563 Tag VLAN setting based on SSID • • DHCP server Flash:16MB • • RAM:128MB Device Management • Standard: IEEE802.11ac, IEEE802.3, IEEE 802.11n, •... -
Page 7: Product Specification Awod-30Aci
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Product Specification AWOD-30AXi Model AWOD-30AXi Device Interface Network Function Main Chip: Qualcomm IPQ5018 Tag VLAN setting based on SSID • • Flash: NOR 8MB + NAND 128MB DHCP server • • RAM:512MB Device Management •... -
Page 8: Hardware Installation
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Chapter 2. Hardware Installation AirDual-AC12 and AWOD-12ACi Port description. 2G, 5G, SYS LED Front Back Panel LED Description. Status Function (Green) 2.4G is On (Green) 5G is On On (Green) Outdoor CPE is ON and working... -
Page 9: Awod-30Axi Port Description
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi AWOD-30AXi Port description. Bottom Panel Front Panel LED Description. State Function Power On Power Off On/Flash SYS working Device off On/Flash WAN connected / data transmitting WAN disconnected 2.4G On 2.4G 2.4G Off 5G On 5G Off Port Description. -
Page 10: Airdual-Ac12, Awod-12Aci, Awod-30Axi Hardware Installation
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi AirDual-AC12, AWOD-12ACi, AWOD-30AXi Installation. For the Outdoor CPE, they will be installed on a Pole or Wall based on the following steps: Take the Clamp Hoop from the retail box and open it. Pull it though the back bracket of the Outdoor CPE and fix it the pole. -
Page 11: Quick Installation Guide
PoE switch, you can connect to the CPE by connecting direct to LAN port of the CPE or by connecting to the same PoE switch. You can also use the supplied PoE Injector (AirDual-AC12 and AWOD-12ACi only) to power CPE when not using a PoE switch. -
Page 12: Starting Setup In The Web Ui
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Starting Setup in the Web UI. It is easy to configure and manage the CPE with a web browser. Input 192.168.188.253 into the browser, and the login page will appear, the default login password is: admin. -
Page 13: Configure The Cpe
Main Home Page. The below web GUI and the topology used in this guide uses the inWall-U618AX/AirDual-AC12 as an example. It is easy to configure and manage the AP with the web browser. The default setting of the CPE is AP Mode. -
Page 14: Wizard Configuration
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Wizard Configuration. Wizard: It instruct users to configure wireless AP’s operation mode based on needs, there are three operation modes including AP, Gateway and Repeater Mode. Please confirm the operation mode first before starting the configuration. -
Page 15: Gateway Mode (Router) Wizard
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Gateway Mode (Router). Before changing the default AP mode to the Gateway mode, confirm your internet will be Static IP, PPPoE, or DHCP. Then click on the Gateway mode and the below image will pop-up. Please choose the right WAN settings mode, then click next to continue. -
Page 16: Wan Settings Static Ip Wizard
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.3.1 WAN Settings. Static IP If your ISP offers you a static IP Internet connection type, select “Static IP" and then enter IP address, subnet mask, default gateway and primary DNS information provided by your ISP in the corresponding fields. -
Page 17: Wan Settings Pppoe Wizard
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.3.2 WAN Settings. PPPoE (ADSL) Select PPPOE if your ISP is using a PPPoE connection and provided you wit an PPPoE username and password. The page includes the following fields: Object Description Usern ame Enter the PPPoE Username provided by your ISP... -
Page 18: Wan Settings Dhcp Wizard
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.3.3 WAN Settings. DHCP Choose “DHCP” and the router will automatically obtain IP addresses, subnet masks and gateway addresses from your ISP. 4.3.4 Wi-Fi Settings. In the Wi-Fi settings the settings for the 2.4Ghz are first after these are done click next to setup the 5Ghz Wi-Fi settings. - Page 19 Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi The page includes the following fields: Object Description Wi-Fi Statu s Select ON (Green) or OFF (Gray) to enable or disable Wireless LAN This is the wireless network name. The default SSID is Wireless SSID 2.4G_XXXXXX and Wireless 5.8G_XXXXXX.
- Page 20 Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Router Mode: After the CPE has restarted the Gateway mode will be active. The web GUI will now display the Gateway Mode and will have an additional Firewall menu on the left side. See Chapter 4.8 for information.
-
Page 21: Ap Mode Wizard
The default mode of the CPE is AP mode. Select Static IP, Get IP from Gateway or Get IP from AC. When selecting the Get IP from AC you would need an AirLive WLAN-64/128GM Controller (sold separately). In the AP mode, the AP wireless interface and cable interface bridge together. -
Page 22: Wi-Fi Settings Wizard
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.4.1 Wi-Fi Settings. In the Wi-Fi settings the settings for the 2.4Ghz are first after these are done click next to setup the 5Ghz Wi-Fi settings. Setup your own SSID, Wireless Mode, Channel, Encryption and Wi-Fi Password. - Page 23 Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi The page includes the following fields: Object Description Wi-Fi Statu s Select ON (Green) or OFF (Gray) to enable or disable wireless LAN. This is the wireless network name. The default SSID is Wireless SSID 2.4G_XXXXXX and Wireless 5.8G_XXXXXX.
-
Page 24: Repeater Mode
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Repeater Mode. After Selecting Repeater Mode. Select the Radio which the CPE must repeat. From the pull-down menu either 2.4G or 5G can be selected. Press Scan to show the root AP that you need to repeat and click on it. -
Page 25: Wi-Fi Settings Wizard
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.5.1 Wi-Fi Settings. In the Wi-Fi settings the settings for the 2.4Ghz are first after these are done click next to setup the 5Ghz Wi-Fi settings. Setup your own SSID, Wireless Mode, Channel, Encryption and Wi-Fi Password. This is the wireless signal which the Repeater will send out to which clients can connect. -
Page 26: Lan Settings Wizard
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.5.2 LAN Settings. Select Static IP, Get IP from Gateway. When selecting from Gateway the device will get an IP address from the main Gateway. When selecting Static IP the CPE will have a fixed IP in the network. - Page 27 Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Repeater Mode: After the CPE has restarted the Repeater mode will be active. The web GUI will now display the Repeater Mode and will have the additional Repeater signal information on the home page. -24-...
-
Page 28: Wi-Fi
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Wi-Fi In Wi-Fi setting you can setup the 2.4Ghz and 5Ghz setting, MAC ACL, Wi-Fi Timer and Advanced settings. Basic Wi-Fi settings for 2.4Ghz and 5Ghz. Setup your own SSID, Wireless Mode, Channel, Encryption and Wi-Fi Password, Max Station, TX Power and VLAN. -
Page 29: Vap
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi The page includes the following fields: Object Description Wi-Fi Statu s Select ON (Green) or OFF (Gray) to enable or disable wireless LAN. This is the wireless network name. The default SSID is Wireless 2.4G_XXXXXX and Wireless 5.8G_XXXXXX. X is the last 6 numbers of the AP SSID MAC address. -
Page 30: Wi-Fi Analyzer
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.6.2 Wi-Fi Analyzer Press this button to analyze the local area to see which wireless channels are in use. Both the 2.4Ghz and the 5Ghz have their own Wi-Fi Analyzer. The straight vertical red line indicate the current channel used by the CPE. -
Page 31: Mac Acl
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.6.3 MAC ACL Allow or deny the users access into this CPE based on MAC address. The page includes the following fields: Object Description Press the “Add” button to add end-device that is scanned from wireless network and mark them. -
Page 32: Wi-Fi Timer
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.6.4 Wi-Fi Timer Enable Wi-Fi Timer to turn off the SSID on a specified time. The page includes the following fields: Object Description Wi-Fi Timer Select ON (Green) or OFF (Gray) to enable or disable timer. -
Page 33: Advanced
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.6.6 Advanced Advanced Settings allows to change the parameters of the CPEs. Country Region lets you select there different Wi-Fi regions, please select the one which is valid in your country of use. The page includes the following fields:... -
Page 34: Network (Ap Mode)
In AP mode only LAN Settings and Cloud are available. 4.7.1 LAN Settings Select the Connection, Static IP, Get IP from Gateway, Get IP from AC. To use the option, Get IP from AC an AirLive WLAN-64/128GM Wireless Controller is needed. The page includes the following fields:... -
Page 35: Cloud
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.7.2 Cloud By default, the Cloud setting is turned on. When this settings is turned on the CPE can be added to the AirCloud platform. The AirCloud platform allows you to remote control the CPEs via the Cloud. -
Page 36: Static Dhcp
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi The page includes the following fields: Object Description IP Address Enter the CPE Static IP Address. Su b n et Enter the network mask. Enable or Disable Spanning Tree (Default is on) DHCP Server Enable or Disable the CPE DHCP Server (Default is on) -
Page 37: Wan
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.8.3 WAN Settings allows you setup the Internet Mode of the CPE, When using the WAN settings make sure your WAN port is connected to your Modem. The CPEs has 3 WAN settings, DHCP, Static IP and PPPoE. -
Page 38: Wan Advanced Settings
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.8.5 WAN Advanced Settings The WAN Advanced Settings are for 3 modes DHCP, Static IP and PPPoE. The page includes the following fields: Object Description Enable web server a c c e s s o n... -
Page 39: Wan Static Ip
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.8.6 WAN Static IP The default setting for the WAN port is DHCP. If your ISP offers you static IP Internet connection type, select “Static IP" and then enter IP address, subnet mask, default gateway and primary DNS information provided by your ISP in the corresponding fields. -
Page 40: Wan Pppoe
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.8.7 WAN PPPoE The default setting for the WAN port is DHCP. Select PPPOE if your ISP is using a PPPoE connection and provided you with a PPPoE username and password. For the Advanced Settings see Chapter 4.7.5... -
Page 41: Cloud
By default, the Cloud setting is turned on. When this settings is turned on the CPE can be added to the AirCloud platform. The AirCloud platform allows you to remote control the CPEs via the Cloud. See www.airlive.com for more information about the AirCloud. -38-... -
Page 42: Firewall (Gateway Mode Only)
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi Firewall (Gateway Mode Only) URL Filtering, IP Filter, MAC Filter, Port Mapping and DMZ will only appear when the CPE is set to Gateway Mode. Setup for the IP Group and Time Group which can be used in some of the Firewall features can been done in the Management menu (see chapter 4.9.7 and 4.9.8). -
Page 43: Ip Filter
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.9.2 IP Filter IP Filtering can block or allow certain clients based on the IP Address, also a port or port range can be set for the IP Address together with the Protocol. Click Add to open the Pop-up window to enter the IP and Time information. To Delete an IP Filter, select the IP Filter which was made before and check mark it, then press Delete. - Page 44 Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi The page includes the following fields: Object Description Statu s Select ON (Green) or OFF (Gray) to enable or disable Rule Name Enter the rule name, e.g. Black list Time Group Select Any or Cu stomer to set up time range and work data.
-
Page 45: Mac Filter
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.9.3 MAC Filter MAC Filtering can block or allow certain clients based on the MAC Address, also a port or port range can be set for the IP Address together with the Protocol. Click Add to open the Pop-up window to enter the MAC and Time information. To Delete an MAC Filter, select the MAC Filter which was made before and check mark it, then press Delete. -
Page 46: Port Mapping
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.9.4 Port Mapping Port mapping allows extranet access to an intranet server. Enter the IP Address of the client for which you would like to open the External and Internal port. Click Add to open the Pop-up window to enter the Port information. To Delete a Port Mapping, select the Port Mapping which was made before and check mark it, then press Delete. - Page 47 Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi The page includes the following fields: Object Description Statu s Select ON (Green) or OFF (Gray) to enable or disable Rule Class Select the rule class, e.g. HTTP, HTTPS… Rule Name Enter the rule name, e.g. Black list...
-
Page 48: Dmz
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.9.5 Open the DMZ for a client IP Address. The page includes the following fields: Object Description Enable DMZ Select Enable DMZ Host or Disable DMZ Host IP Enter the DMZ LAN IP for which you would like to open DMZ Save Save the setting. -
Page 49: Manage
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.10 Manage The Management page allows for a backup, reset or upgrade of the CPE. Note that there is a difference between AP Mode and Gateway Mode. The functions QoS, IP Group, Time Group and DDNS will only appear when the CPE is in Gateway Mode. -
Page 50: Timed Reboot
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.10.2 Timed Reboot Set a schedule time on which the CPE would reboot, this can be every day or on an interval The page includes the following fields: Object Description Timed Reboot Select Enable or Disable to start schedule reboot... -
Page 51: Upgrade
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.10.3 Upgrade Browse the firmware file and click on upgrade. Wait till the upgrade is successful. The device will reboot automatically after successful firmware upgrade. Version will show which firmware is currently on the CPE. -
Page 52: Time Manager
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.10.4 Time Manager Setup the system time, enable NTP Server and select the Time Zone for the CPE. The page includes the following fields: Object Description System Time Show system time of device NTP Enable... -
Page 53: Log
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.10.5 Review the CPE log, you can also enable Remote Log Service or export the log file. The page includes the following fields: Object Description Select ON/OFF to record log or not Remote Log Service... -
Page 54: Qos (Gateway Mode Only)
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.10.6 QoS (Gateway Mode only) The QoS function only will work when the CPE is in Gateway Mode. QoS can limited the bandwidth for an IP Address or IP Group also the Time Group can setup to limit the bandwidth only at a certain time. - Page 55 Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi The page includes the following fields: Object Description Statu s Select enable or disable QoS control rule IP Group Select custom or Add an IP group IP Ad d ress Enter an IP address range or use scan to select...
-
Page 56: Ip Group (Gateway Mode Only)
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.10.7 IP Group (Gateway Mode only) IP Group, Setup up an IP Group which can be used in the QoS as well as in the Firewall menu. Click Add to open the Pop-up window to enter the IP information. To Delete an IP Group, select the IP Group which was made before and check mark it, then press Delete. -
Page 57: Time Group (Gateway Mode Only)
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi 4.10.8 Time Group (Gateway Mode only) Time Group, Setup up a Time Group which can be used in the QoS as well as in the Firewall menu. Click Add to open the Pop-up window to enter the IP information. To Delete a Time Group, select the Time Group which was made before and check mark it, then press Delete. -
Page 58: Ddns (Gateway Mode Only)
A DDNS can be setup using the build in DDNS. To make an DDNS account please click on Registration. Note: the DDNS service is not related to AirLive Technology Corp, but a third party. The page includes the following fields:... -
Page 59: Fit Mode
FIT Mode The main function of FIT Mode is to work with the AirLive Wireless Controller WLAN-64/128GM. When the CPE is connected to the Wireless Controller, it will receive an IP Address from the Wireless Controller and the functions like SSID, Encryption and Channel are controlled via the Wireless Controller.
