HD Rehab 56904 User Manual & Assembly Instructions

Oxygen tank holder
for HD Balance
Art. no: 56904, 56905

Intended use

The oxygen tank holder is intended to be used on HD Balance wheelchairs. The smaller model (art. no.
56904) is suitable for 1 L oxygen tanks, the larger model (art. no. 56905) for oxygen tanks of 2 to 2,5 L.
Oxygen tank used with this holder should be of the type LIV from AGA AB, or equivalent.

Parts included

1 x

Assembly

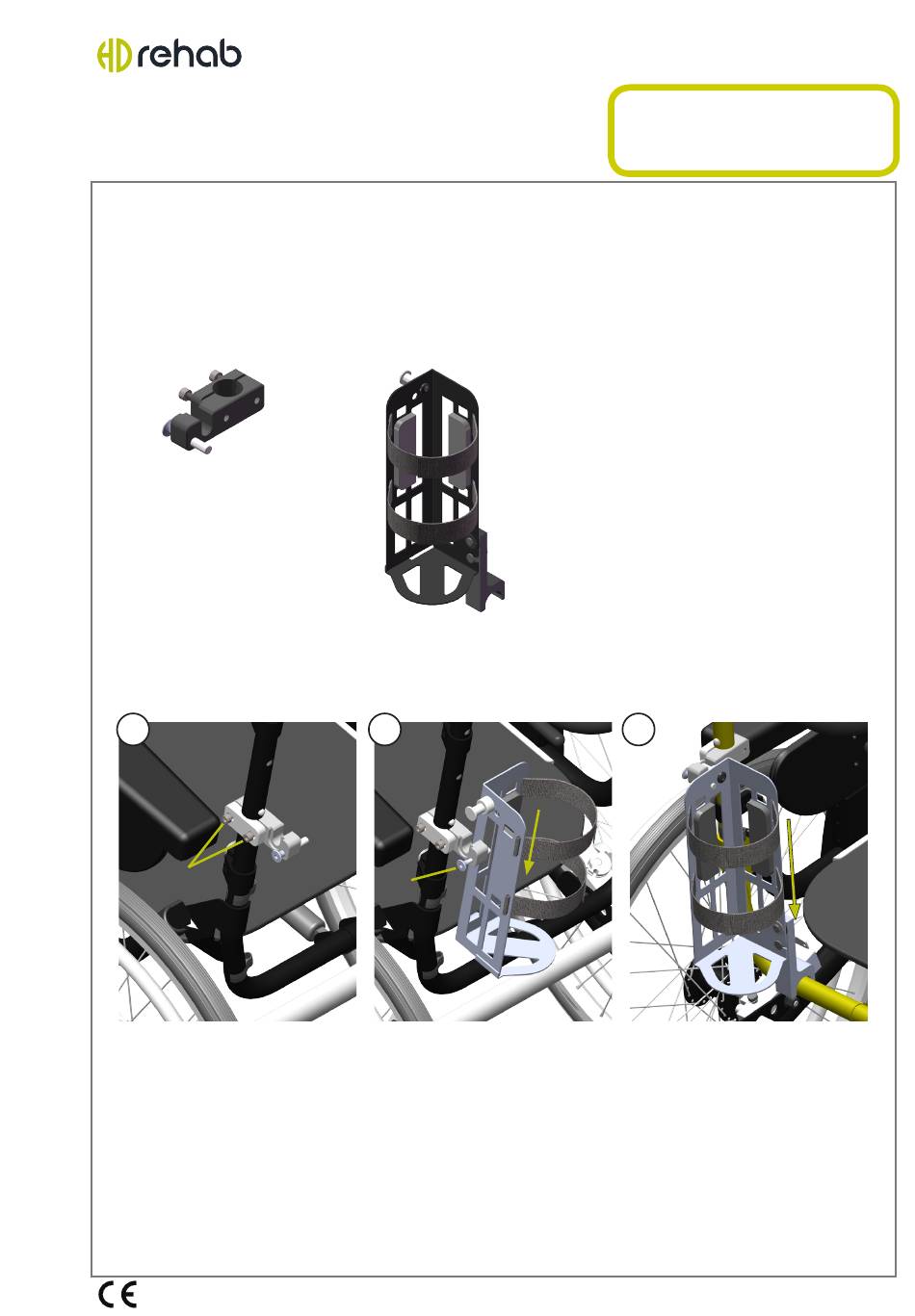

The oxygen tank holder is attached to the back frame as follows:
1
a
NOTE: The oxygen tank is not in the holder during assembly.
1. Place the clamping bracket on the left tube of the back frame, below the lowest height adjustment
hole. Fasten with screws (a) but do not tighten them yet.
2. Pull out the pin (b) and place the holder in place on the clamping bracket, then release the knob.
3. Push the holder and clamping bracket downward until the foot of the holder rests on the horizontal
tube of the back frame. Tighten the screws (a).
Check carefully that all brake and tilt adjustment wires are free and are not interfering with the holder.
MANUFACTURER: HD Rehab AB
1 x
2
b
Tryffelslingan 4, SE-181 57 Lidingö, Sweden
Art.no 95839-1
Latest revision: 2018-05-09
User Manual /
Assembly Instructions
3
tel. 08-767 04 80 fax. 08-767 50 00
www.hdrehab.se info@hdrehab.se
Rev. B
Page 1 (2)
