Standard Furniture 11631 Assembly Instructions

STANDARD
f u r n i t ure
Read instructions carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during shipment. Remove all components from
pack and place top down on soft surface such as carpet or cloth to prevent scratching the finish. Identify and count all parts as specified below.
It is recommended to use two or more person during the assembly process.
HARDWARE LIST:
No. Description
1 Short Bolt
2
Long Bolt
3
Lock Washer
4 Big Flat Washer
5 Small Flat Washer
6 Allen Key
Industrial
7
Hex Bolt
8
Flat Washer
Industrial
9
Hex Nut
10 Wrench
Step 1
6
1 3 4
B
C
Step 1: Place the Table Top (A) upside down on a piece of cloth or
carpet. Attach the Left Front Leg (or Right Back Leg) (B) and Right
Front Leg (or Left Back Leg) (C) to the Apron of the Table Top (A)
by inserting Short Bolt (1), Lock Washer (3), Big Flat Washer (4) and
tighten with Allen Key (6). Do not fully tighten.
Step 3
E
C
B
A
Step 3: Attach the Bottom Shelf (E) to the Side Stretcher (D) by inserting Long Bolt (2), Lock Washer (3), Small Flat Washer (5). Fully tighten
all Bolts and Nuts in Step 1;2;3 at this time by using Allen Key (6) and Wrench (10) provided. Do not over tigten .
Turn the Table to upright position ( *Note: It is recommended to use two or more persons to turn the Table). Assembly product is now
completed.
ASSEMBLY INSTRUCTIONS
GROUP NO.: 11620 AUBURN HONEY DR

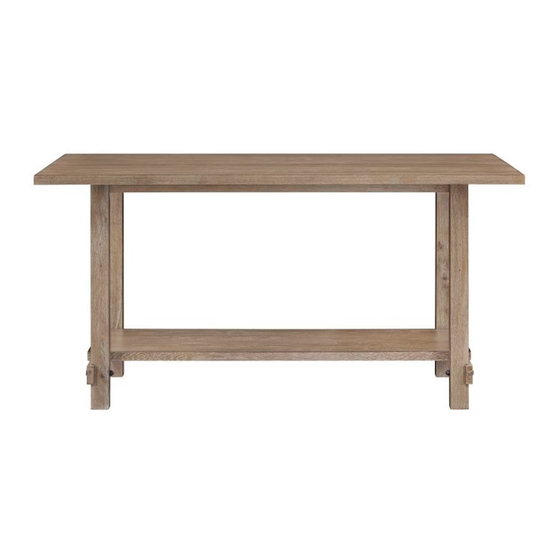

ITEM NO.: 11631 - COUNTER HEIGHT TRESTLE TABLE
Sketch Size
Ø 5 16 '' x 60mm
Ø 1 4 '' x 75 mm
Ø 5 16 '' x 13mm
Ø 5 16 '' x 19mm
Ø 1 4 '' x 12 mm
4 mm
Ø 1 2 '' x 105 mm
Ø 1 2 '' x 23 mm
Ø 1 2 '' x 19 mm
19 mm
B
C
B
A
2
3
5
D
E
C
B
Qty'
No. Description
8 pcs
A Table Top
4 pcs
12 pcs
B Left Front Leg
8 pcs
(or Right Back Leg)
4 pcs
C Right Front Leg
(or Left Back Leg)
1 pc
4 pcs
D Side Stretcher
4 pcs
4 pcs
E Bottom Shelf
1 pc
8 9
D
7
10
C
Step 2: Attach the Side Stretcher (D) to the Table Legs (C);(B) by
inserting the Industrial Hex Bolt (7); Flat Washer (8); Industrial Hex
Nut (9) as the picture shown and tighten with Wrench (10) provided .
Do not fully tighten.
6
D
Cleaning instructions: Clean using soft cloth
PART LIST:
Sketch
L
sticker stick on the leg
sticker R stick on the leg
C
D
B
C
Finish
Made in Vietnam
Qty'
1 pc
2 pcs
2 pcs
2 pcs
1 pc
Step 2
D
B
A
