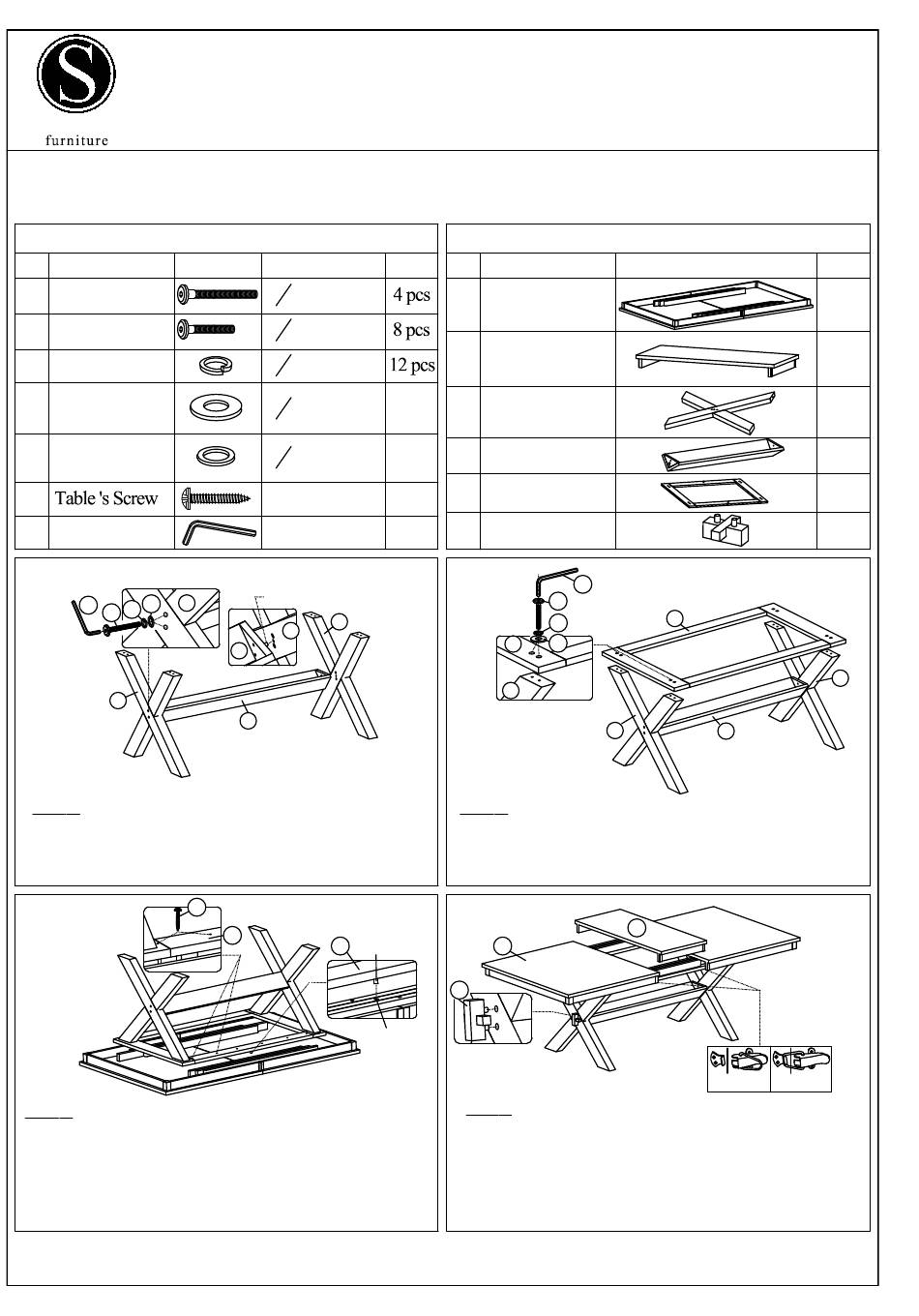

Standard Furniture 14140 Assembly Instruction

STANDARD
Read instruction carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during shipment. Remove all components from
pack and place top down on soft surface such as carpet or cloth to prevent scratching the finish. Identify and count all parts as specified below.
It is recommended to use two or more person during the assembly process.
HARDWARE LIST:
No. Description
1 Long Bolt
2 Short Bolt
3 Lock Washer
Big Flat
4
Washer
Small Flat
5
Washer
6
7 Allen Key
Step 1
C
7 1 3 5
C
Step 1: Align the Wood Dowel of the Stretcher Support (D)
to the middle hole on the Table Leg (C). Attach 2 Table Legs
(C) to the Stretcher Support (D) by using Small Flat Washer
(5), Lock Washer (3) and Long Bolt (1) with Allen Key (7).
Do not fully tighten.
Step 3
Step 3: Place the Table Top (A) upside down on a piece of
cloth or carpet to prevent finish from scratching. Aligning
the Wood Dowel on the Mounting Plate (E) to the pre-drilled
hole on the table slide of Table Top (A). Attach the assembly
Base in step 2 to the Table Slide of the Table Top (A) by
using Table's Screw (6) and fully tighten with Phillips-head
screw driver (not provided).
ASSEMBLY INSTRUCTION
GROUP NO.: 14140 CABANAS DR
ITEM NO.: 14141 - DINING TABLE W/18' LEAF
Sketch Size
ɸ 5 16 '' x 50mm 4 p c s
ɸ 5 16 '' x 40mm 8 p c s
ɸ 5 16 '' x 13mm 1 2 p c s
ɸ 5 16 '' x 19mm 8 pcs
ɸ 5 16 '' x 12mm 4 pcs
4mm x 30mm
4 mm
Wood
Dowel
C
C
D
D
6
Wood
E
E
Dowel
Qty' No. Description
A
Table Top
B Table Leaf
C
Table Leg
Stretcher Support
D
E
Mounting Plate
12 pcs
1 pc
F
Wood Plug Decor
Step 2
E
C
Step 2: Attach the Mounting Plate (E) to the assembly base
in Step 1 by using Short Bolt (2), Lock Washer (3), Big Flat
Washer (4) and fully tighten with Allen Key (7). Do not over
tighten.
Step 4
A
F
Hole
Step 4: Turn the Table to upright position and fully tighten all
Bolts and Screws. Attach Wood Plug Decor (F) to the Table Leg
(C) by aligning the Wood Dowel of the Wood Plug Decor (F) to
the pre-drilled hole out side of Table Leg (C).
Unlock the Latch and pull the Table Top (A) from both ends.
Insert Table Leaf (B) to the middle of Table Top (A), close the
Table Top (A) by pushing from both ends. Lock the latch to
prevent from sliding. Assembly product is now completed.
Cleaning instructions: Clean using soft cloth
PART LIST:
Sketch
7
2
E
3
4
C
D
B
UNLOCK
Qty'
1 pc
1 pc
2 pcs
1 pc
1 pc
2 pcs
C
LOCK
