Standard Furniture OMAHA GRAY DR 16680 Assembly Instruction

STANDARD
Read instruction carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during shipment. Remove all
components from pack and place top down on soft surface such as carpet or cloth to prevent scratching the finish. Identify and count all parts
as specified below.
It is recommended to use two or more people during the assembly process.
HARDWARE LIST:
No. Description
1 Long Bolt
2 Short Bolt
3 Lock Washer
4 Flat Washer
5 Short Screw
6 Long Screw
7 Allen Key
Step 1
A
C
Step 1: Attach the Side Stretcher (C) to the middle of Table
Leg A (A) and Table Leg B (B) by using Long Screw (6),
tighten with Phillips screw drivers (not included).
2
Step 3 7
3
4
E
D
B
A
C
Step 3: Attach the Center Stretcher (D) to the Side Stretcher (C)
by aligning the wood dowels to the pre-drilled holes on the Side
Stretcher (C) and tighten with Short Screw (5) by using Phillips
screw drivers (not included).
Attach the Center Stretcher (D) to the Mounting Plate (E) by
using Flat Washer (4), Lock Washer (3), Short Bolt (2) and
tighten with Allen Key (7).
ASSEMBLY INSTRUCTION
GROUP NO.: 16680 OMAHA GRAY DR

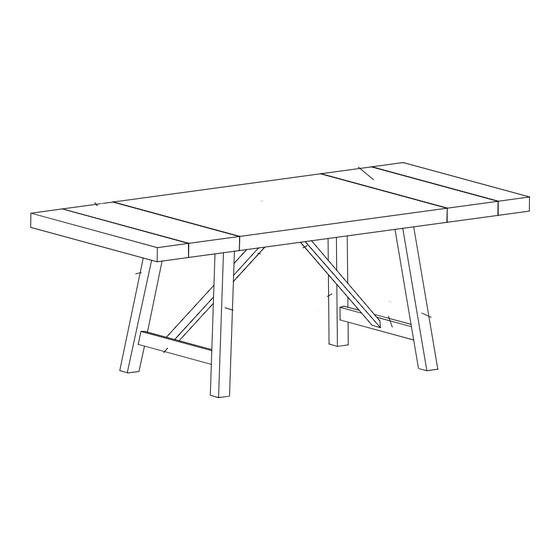

ITEM NO.: 16696 - COUNTER HEIGHT TRESTLE TABLE W/2-13 FILLS
Sketch
Size
5
F 16 '' x 60 mm 4 pcs
1
F 4 '' x 40 mm 2 pcs
5
F 16 '' x 13 mm 6 pcs
5
F
16 '' x 19 mm 6 pcs
F
4 mm x 30 mm 12 pcs
F 4 mm x 60 mm 4 pcs
4 mm
B
B
E
A
D
Wood Dowel
C
D
B
5
A
Qty' No. Description
A Table Leg A
B Table Leg B
C Side Stretcher
D Center Stretcher
E Mounting Plate
F Table Top
1 pc
G Table Leaf
Step 2
6
B
C
Step 2: Attach the Table Legs are assembled in Step 1 to
Mounting Plate (E) by using Flat Washer (4), Lock Washer (3),
Long Bolt (1) and tighten with Allen Key (7).
Step 4
B
A
E
F
Step 4: Place the Table Top (F) upside down on a piece of cloth
or carpet to prevent finish from scratching. Align pre-drilled hole
on the Mounting Plate (E) to the Wood Dowel on the table slide.
Attach the assembly base in Step 4 to the Table Top (1) by using
Short Screw (5) and fully tighten with Phillips screw drivers (not
included).
PART LIST:
Sketch
A
sticker stick under Leg
B
sticker stick under Leg
7
1
3
4
A
A
C
5
B
C
B
C
D
Qty'
2 pcs
2 pcs
2 pcs
2 pcs
1 pc
1 pc
2 pcs
E
B
C
A
The pre-drill
hole
Wood Dowel
