PixLite A4-S Mk3 Quick Start Guide

1 - Physical Connections

In order to connect to the PixLite A4-S Mk3, there must be a working power supply
between 5 – 24Vdc connected to the power input. Simply lift up each lever, insert the
power wires (with the correct polarity), and clamp the levers back down. An Ethernet
cable should also be connected to either of the Ethernet Ports, allowing connection to
a local network, or directly to a PC.
These ports and the reset button (for
Section
2.1) are shown in
Figure 1
below.

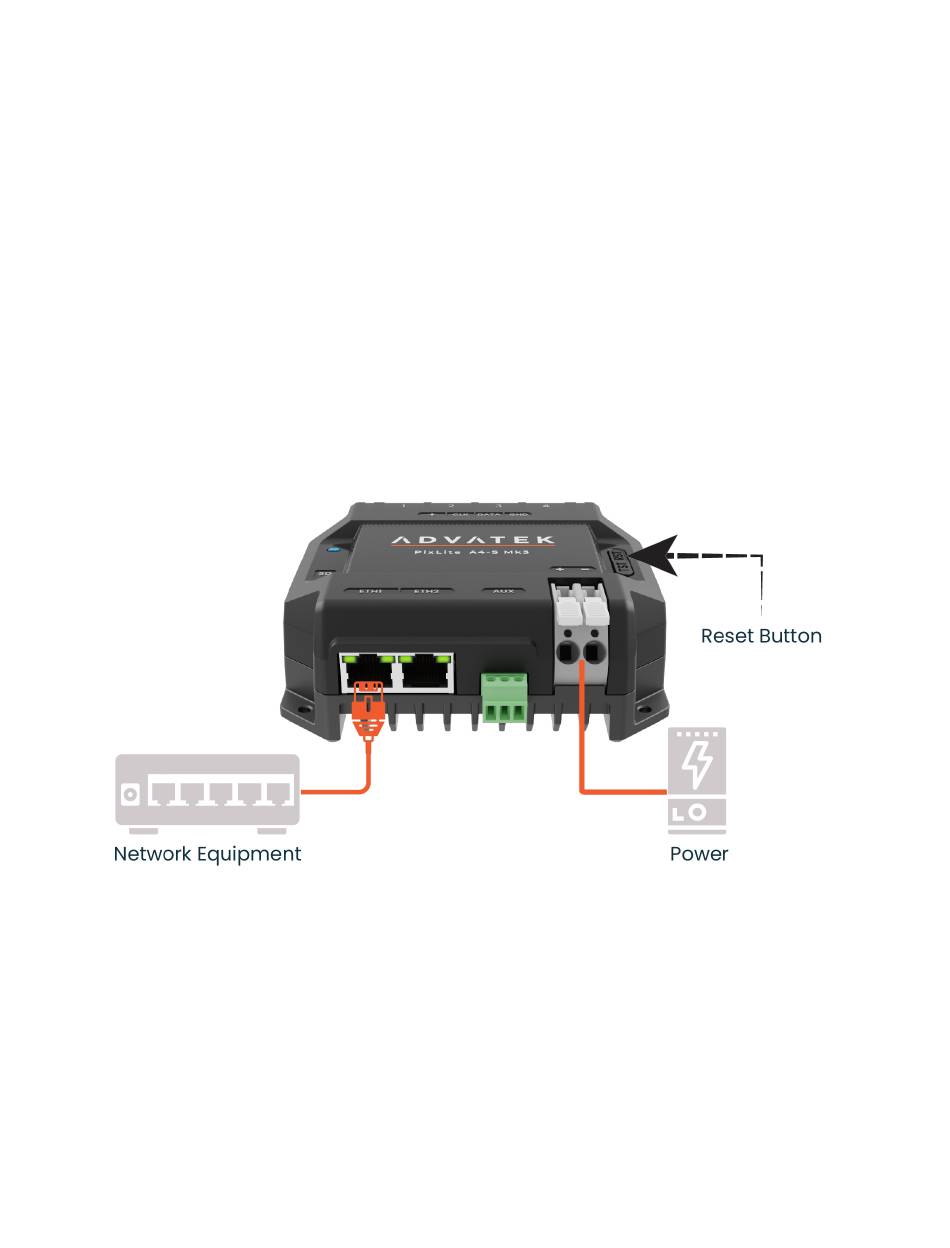

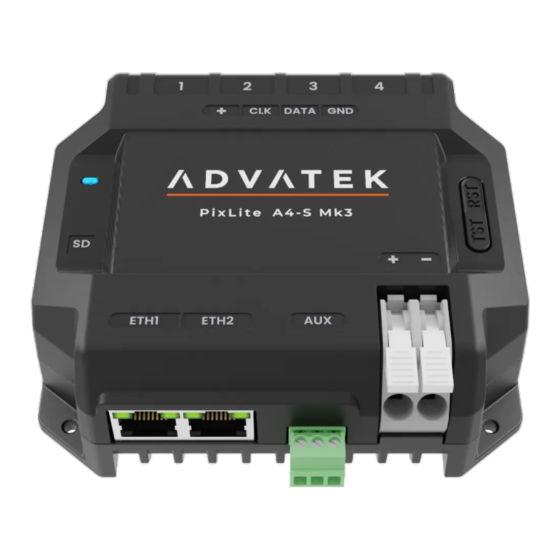

Figure 1: Connection Points & Reset Button
2 - Startup & Network Connection

2.1 - Factory IP Start-up

The controller will start up in DHCP mode as a factory default. Currently, there is no
Advatek Assistant tool that can discover PixLite Mk3 controllers when they are on a
network - Advatek Assistant 3 will be coming soon.
- 1 -
www.advateklights.com
PixLite A4-S Mk3 Quick Start Guide V211001
