PixLite A4-S Mk3 Quick Start Guide
1 - Physical Connections
In order to connect to the PixLite A4-S Mk3, there must be a working power supply
between 5 – 24Vdc connected to the power input. Simply lift up each lever, insert the
power wires (with the correct polarity), and clamp the levers back down. An Ethernet
cable should also be connected to either of the Ethernet Ports, allowing connection to
a local network, or directly to a PC.

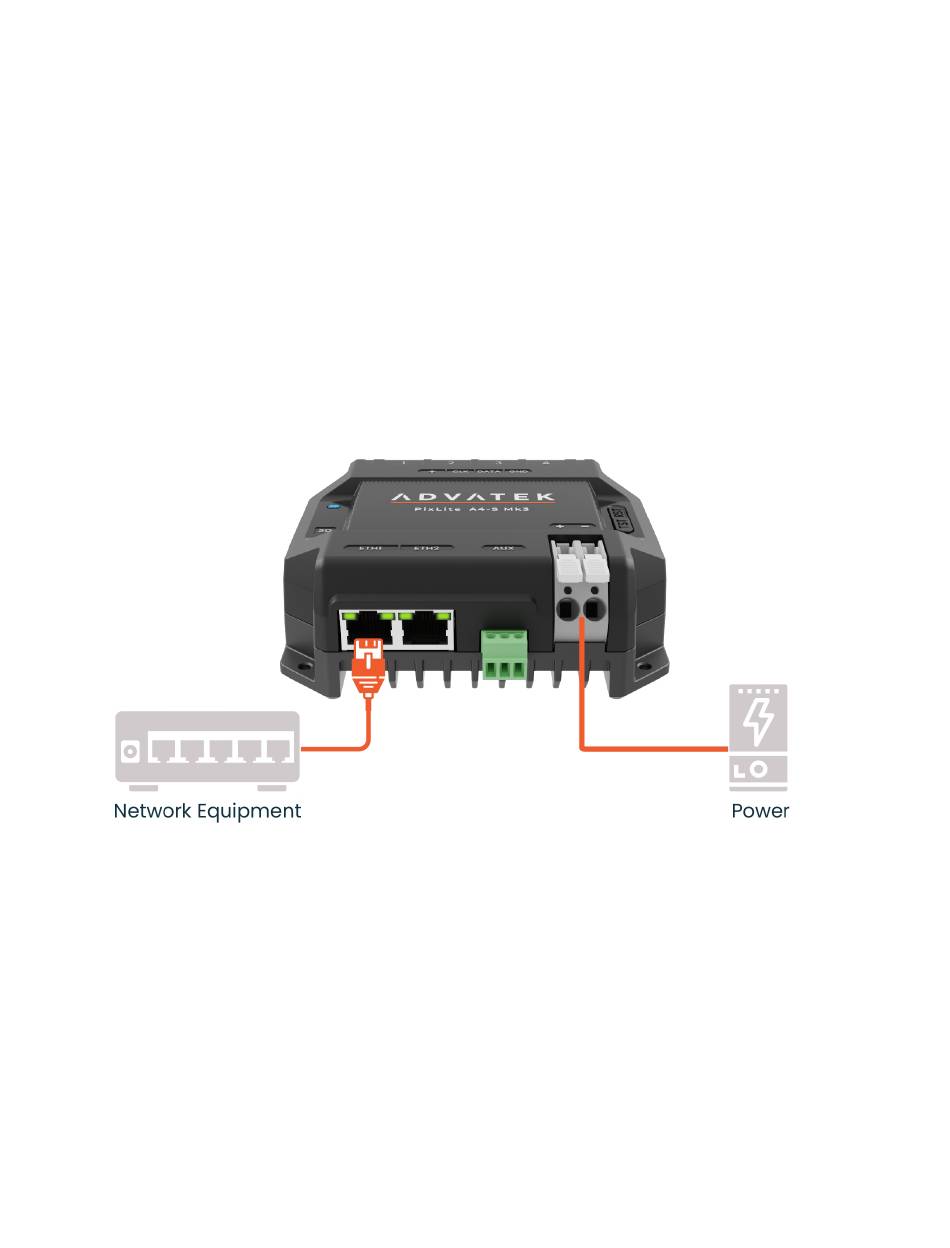

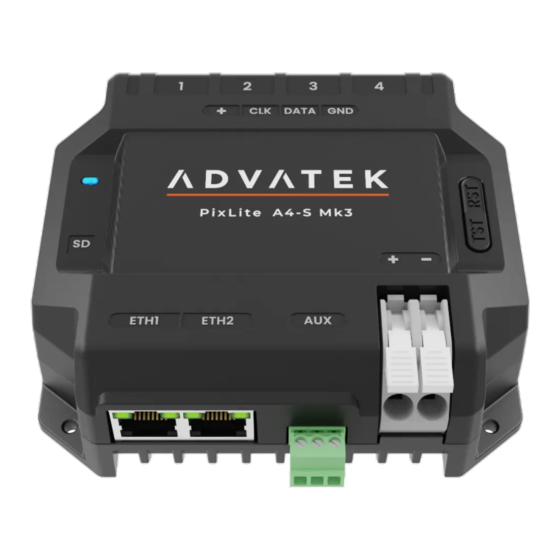

Figure 1: Connection Points
- 1 -
www.advateklights.com
PixLite A4-S Mk3 Quick Start Guide V20220722
