TCL LED49D2900S Operation Manual page 6

Y/VIDEO
AV/COMPONENT
Pb/Cb
IN
Pr/Cr
L
PC/AV/COMPONENT
AUDIO IN
R
VGA
ANTENNA IN
USB
C I
AC IN~
SATELLITE IN

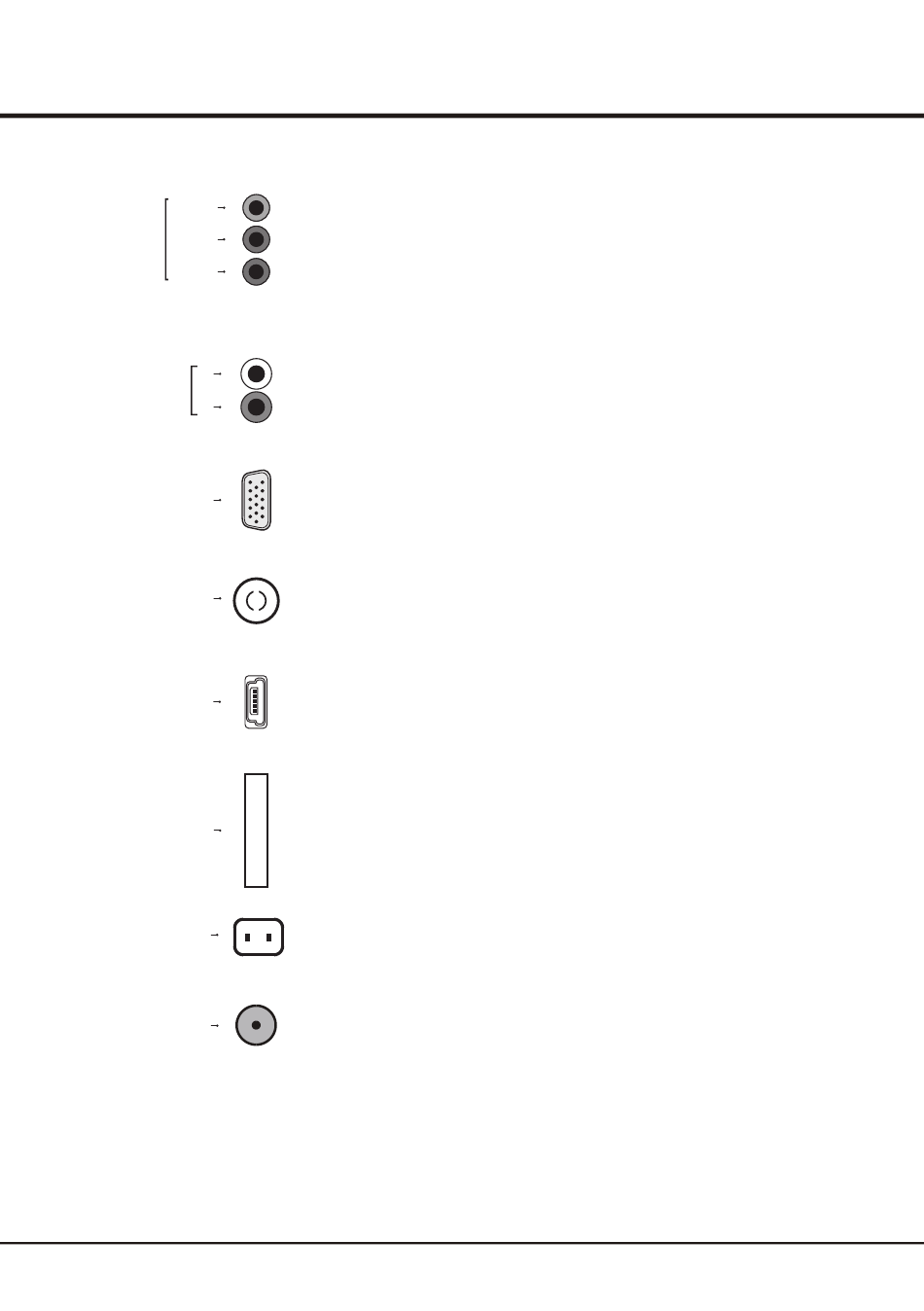

YPbPr/VIDEO component sockets (input)
These Y/VIDEO sockets can be used to connect a device that has component video
sockets, such as a DVD player. The component sockets can recognize if the device
you're connecting to is Y Pb Pr compatible or Y Cb Cr compatible. The component
sockets provide excellent picture quality because the video is separated into three
separate parts.
PC/ AV/ COMPONENT AUDIO IN
These AUDIO IN L & R sockets can be used to connect a range of equipment,
including video recorders, camcorders, satellite receivers, DVD players, or games
consoles. AUDIO IN sockets are shared by AV, VGA and YPbPr sockets.
VGA socket (input)
This socket can be used to connect a computer.
Note: The VGA is same as the PC
ANTENNA IN socket (input)
This socket can be used to connect the outside aerial or cable network.
USB socket (input)
These sockets can be used to connect an USB 2.0 device.
Note: the number of USB sockets on the TV may vary according to TV model.
CI socket
This CI socket can be used to put the CI card in to accept the locked programs .
AC In socket (input)
This socket can be used to connect a
SATELLITE IN socket (input)
This socket can be used to connect the satellite receiver pot.
5
Introduction
.
AC supply .
