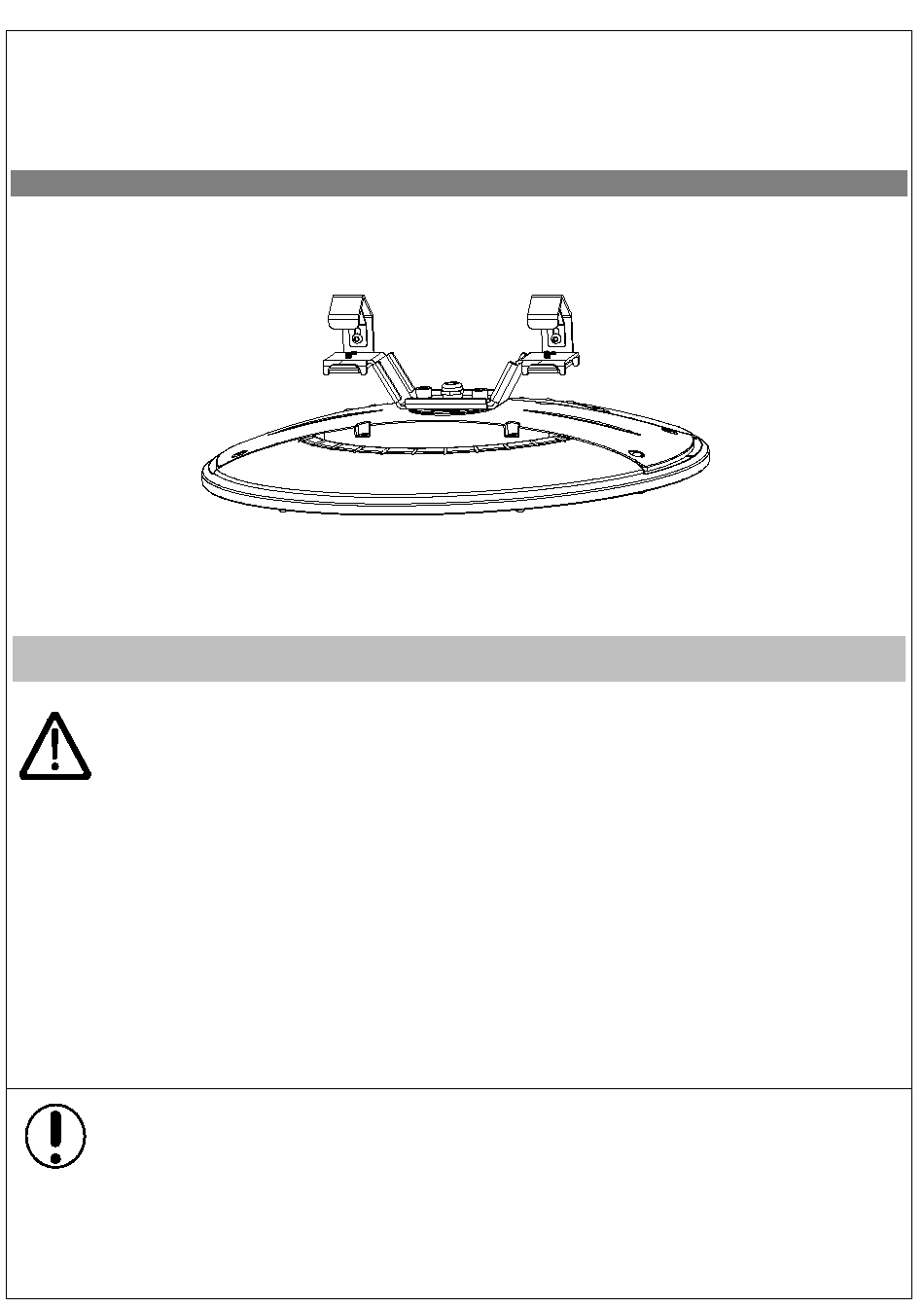

AOK -75WiP Installation Instruction

The garden / street light

The

Garden / Street Light

Please read the installation manual carefully before installation and keep the manual for future use.

Warning

1.Electrician must have related certificates , knowledge and working experience. The work must be assigned to each

electrician based on their position and responsibility.

2.The lens of the lamp is PC + glass, which must be handled carefully during installation, otherwise will be easily

scratched and damaged. When the face of the lamp is putting on the ground, it must be protected with soft cloth or other

protective materials.

3.Installation must be proceeded when the electricity is shut off , no action taken if electricity connected.

4.Construction must be proceeded according to related regulations , including the tools and equipments used.

For example: working voltage range , Warning sign , flashing lamp , helmet , and working clothes etc.

5.Make sure the weather is suitable for high power electricity work when proceed construction.

1.The crane used to install the courtyard lamp must come with lifting platform, warning signs and flash lamp etc.

2.Electric power must be cut off before installation or maintanence of Parking Lot Light.

3.Maintenance must be performed by professional staff.

Installation Instruction

Table of Contents

Do you have a question about the AOK-75WiP and is the answer not in the manual?

Page 1 Installation Instruction Garden / Street Light Please read the installation manual carefully before installation and keep the manual for future use. Warning 1.Electrician must have related certificates , knowledge and working experience. The work must be assigned to each electrician based on their position and responsibility. 2.The lens of the lamp is PC + glass, which must be handled carefully during installation, otherwise will be easily scratched and damaged.
Page 2 Product parts include introduction This one rotates hexagon socket head cap screw(6*M5X15) Lifting scaffold Set screws(2*M8X15) Elastic gasket(2) The Courtyard Lamp Flat gasket(2) The lamp body weight:8.5kg(max) Preparation for installation of the Garden / Street Light Step 1: Install the lifting bracket and fix the screw. internal hexagonal wrench internal hexagonal wrench The torsion:13-17 N.m(6mm Allen wrench)
Page 3 Step 3: pass the wire rope through the lifting bracket, adjust the position of the fixing block, and tighten the screws with the hex wrench to fix the position 4mm Allen wrench Position the retaining block steel wire rope steel wire rope hexagon socket head This one rotates cap screw(6)
