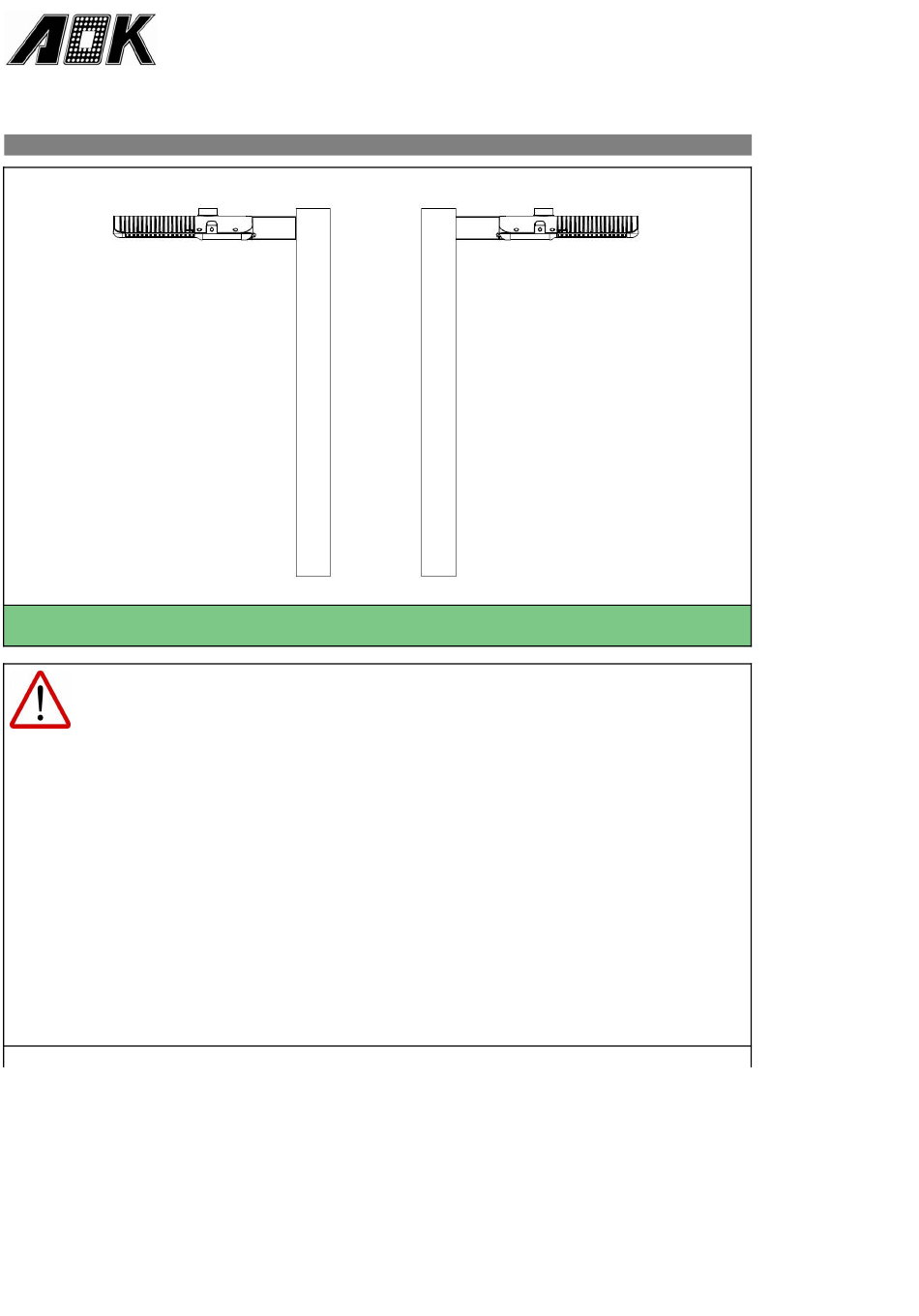

Installation Instruction for AOK iT LED Parking Lot Light
Please read the installation manual carefully before installation and keep the manual for future
use.
Warning
1.Electrician must have related certifictes, knowledge and working experience. The work must be assigned
to each electrician based on their position and responsibility.
2.The lens of parking lot light modules are PC material, they may be scratched by any careless handling.
The parking lot light must be carefully protected in installtion, especially when the face of luminaire is put
downward, it needs to be protected with soft cloth or other protecting materials.
3.Installation must be proceeded when the electricity is shut off, no action be taken when there is electricity
connected.
4.Construction must be proceeded according to related regulations, including the tools and equipments
used. For example: working voltage range, Warning sign, flashing lamp, helmet, and working clothes etc.
5.Make sure the weather is suitable for high power electricity work when proceed construction.
AOK Industrial Company Limited
Advertisement
Related Manuals for AOK iT Series
Summary of Contents for AOK iT Series
- Page 1 AOK Industrial Company Limited Installation Instruction for AOK iT LED Parking Lot Light Please read the installation manual carefully before installation and keep the manual for future use. Warning 1.Electrician must have related certifictes, knowledge and working experience. The work must be assigned to each electrician based on their position and responsibility.
- Page 2 Statement 1.Installation of parking lot light must be proceeded with cranes with lifting platform, warning sign and flash lamp etc. 2.Installation and maintanence of Parking Lot Light must be proceeded when the electricity is off. 3.Maintenance must be procceded with professional staff. Preparation for installation of LED parking lot light Step 1: Open the package, remove the packing materials and take out the LED Lamp ...
- Page 3 Step 4 Wiring, connect the L,N,GND wires on the lamp to the L,N,GND cables on the poles accordingly (Remark: US stanadrd Black: L, White: N, Green: GND; Eur Standard: Brown:L, Blue:N, Yellow Green: GND) Step 5 The installed Parking Lot Light will be as shown in the picture...
- Page 4 AOK Industrial Company Limited Installation Instruction for AOK iT LED Parking Lot Light Please read the installation manual carefully before installation and keep the manual for future use. Warning 1.Electrician must have related certifictes, knowledge and working experience. The work must be assigned to each electrician based on their position and responsibility.
- Page 5 Statement 1.Installation of parking lot light must be proceeded with cranes with lifting platform, warning sign and flash lamp etc. 2.Installation and maintanence of Parking Lot Light must be proceeded when the electricity is off. 3.Maintenance must be procceded with professional staff. Installation degree adjustment for Parking Lot Light with Wall mounting bracket Loose and take out the M5 screws on the wall mounting bracket, adjust the bracket to desired degree, put the screws back, fasten them as below picture shown.
- Page 6 Step 3 Wiring, connect the L,N,GND wires on the lamp to the L,N,GND cables on the poles accordingly (Remark: US stanadrd Black: L, White: N, Green: GND; Eur Standard: Brown:L, Blue:N, Yellow Green: GND) Step 4 The installed Parking Lot Light will be as shown in the picture...
- Page 7 AOK Industrial Company Limited Installation Instruction for AOK iT LED Parking Lot Light Please read the installation manual carefully before installation and keep the manual for future use. Warning 1.Electrician must have related certifictes, knowledge and working experience. The work must be assigned to each electrician based on their position and responsibility.
- Page 8 Statement 1.Installation of parking lot light must be proceeded with cranes with lifting platform, warning sign and flash lamp etc. 2.Installation and maintanence of Parking Lot Light must be proceeded when the electricity is off. 3.Maintenance must be procceded with professional staff. Installation degree adjustment for Parking Lot Light with U shape bracket Loose and take out the M5 screws on the U shape bracket, adjust the bracket to desired degree, fasten and...
- Page 9 Step 3 Wiring, connect the L,N,GND wires on the lamp to the L,N,GND cables on the poles accordingly (Remark: US stanadrd Black: L, White: N, Green: GND; Eur Standard: Brown:L, Blue:N, Yellow Green: GND) Step 4 The installed Parking Lot Light will be as shown in the picture...
