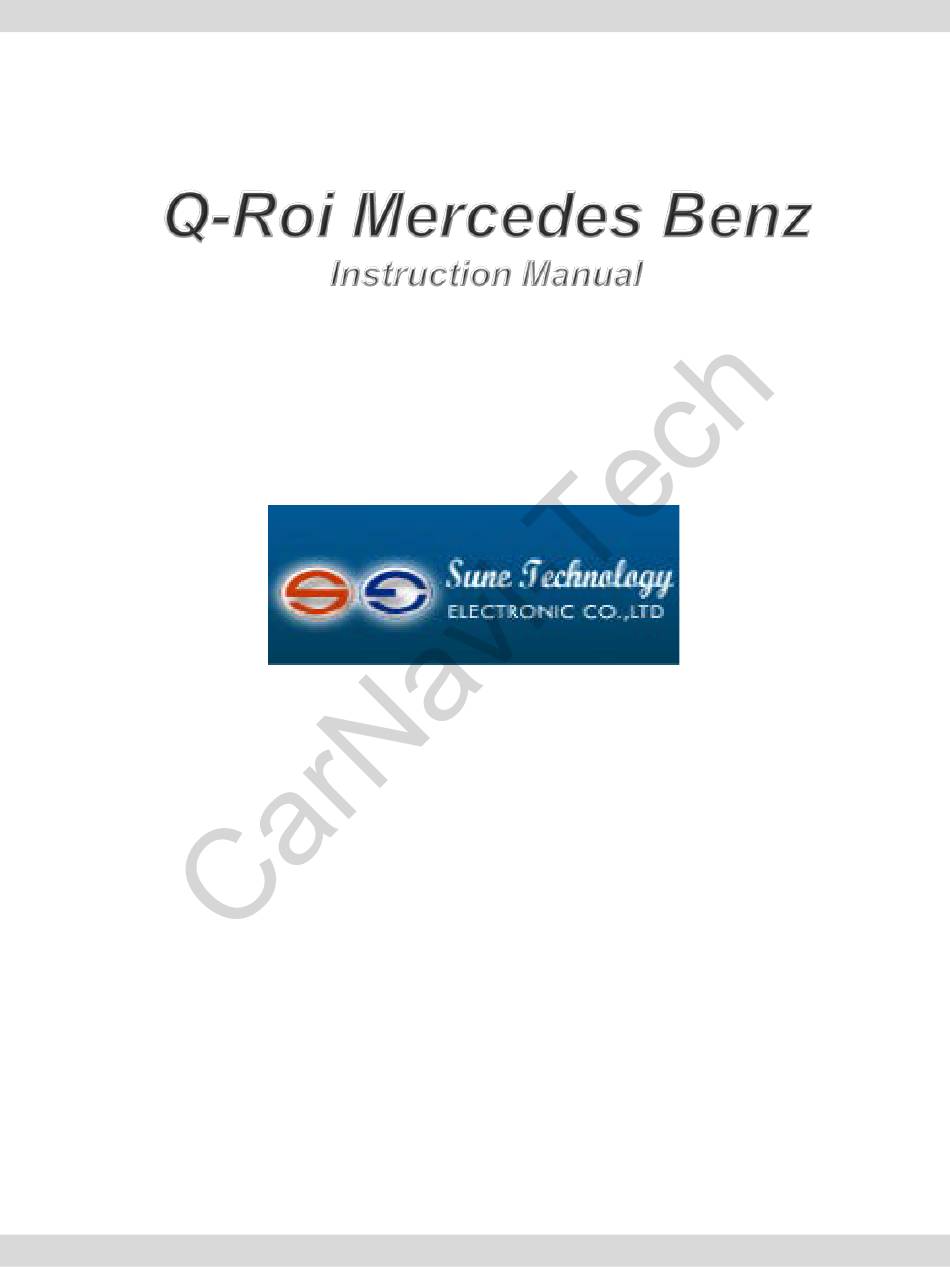

- Page 1 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...
-
Page 2: Table Of Contents
Index 1. General spec 2. System Diagram 3. Components 4. Setting up Dip S/W 5. Setting up FACTORY MENU 6. Cautions before Installation 7. Installation Diagram 8. Pin Specification of Connector 9. Installation 10.Quality Warranty... - Page 3 Warning / Precautions! Do not modify, dismantle or unintended operation this system outside Q-roi After Sales. Damage occurred by unintended operation Warning may cause Q-roi After Sales service void. Always wear seatbelt. When the vehicle is suddenly stop can cause injury.
-
Page 4: General Spec
1. General Spec Android 4.2.2 (Jelly Bean) Telechips TCC8930 (1GHz Cortex A9 DualCore) Display OEM LCD Internal Memory DDR3 1GB RAM + 8GB eMMC External Memory SDHC Slot Support (up to 64GB) A/V Input x 3, Rear Cam Input x 1, CAN(Controller Area Network) x 2, Function Mic x 1,... -
Page 5: System Diagram
2. System Diagram LCD Display eMMC LVDS Flash USB HUB Transmitter Memory USB Devices - USB memory - Hard Disc - Wifi dongle - BlueTooth dongle - 3G / LTE dongle - Other USB Touch Accessories DDR3 Screen Application Touch Image Scaler Controller Processor... -
Page 6: Components
3. Components LCD cable * 1ea 3G dongle * 1ea(Option) (HLCDCA0007) (ETCETC0116) WIFI dongle * 1ea(Option) LVDS cable* 1ea Sub-board * 1ea (ETCETC0110) (HALVDSC0024) (QCPASS0289) TOUCH cable * 1ea (HTOUCH0007) Power cable 16P * 1ea (HPOWER0041) AV/BT Cable * 1ea USB cable * 2ea (HAVCAB0020) (HARETC0027) -
Page 7: Main Board
4. Setting up Dip Switch (Main board) : C Class(W204) 2012~ Low Resolution Monitor(5.8inch) ※ Please make sure to disconnect the power cable of the interface and reconnect the power cable again to apply the dip switch setting whenever changing DIP switch. Otherwise, DIP switch setting will not be applied. - Page 8 5. Setting Factory Menu ※ APPS→FACTORY SETTING ① Put Password and change program upgrade and set-up of external device. (Only Installers are authorized) ※ Please contact the manufacturer to get Password.
-
Page 9: Setting Up Factory Menu
5. Setting up Factory Menu ⑤ ④ ① ② ③ ① CAR MODEL : No use ② DVD TYPE : Only for DVD connected to A/V (Connect IR-AV1 to DVD to use DVD as touch Screen) ③ CMMB SELECT : Select DTV model ( Only Chinese) ④... -
Page 10: Cautions Before Installation
6. Cautions before Installation Ignition key should be taken off before starting installation, interface power connection must be the last step in installation. Power cable should be separated when connecting interface. Should be no any electronic devices or magnetic pole around ... -
Page 11: Installation Diagram
7. Installation Diagram ※ Pull out the original LCD cable from comand control unit and connect it to LCD-IN of IF. Connect a provided LCD cable to the port of comand control unit where the original LCD cable was pulled ou Behind of comand Control unit Monitor Speaker... -
Page 12: Pin Specification Of Connector
8. Pin Specification of Connector AUDIO OUT (L) AUDIO OUT (L) AUDIO OUT (R) AUDIO OUT (R) VIDEO IN1 VIDEO IN1 AUDIO OUT(L) AUDIO L Input REAR-C AUDIO OUT(R) AUDIO R Inut REAR-C FRONT-C VIDEO IN1 VIDEO Input1 FRONT-C Connect Rear Camera VIDEO OUT2 REAR-C VIDEO OUT2... -
Page 13: Installation
9. Installation 9.1 Connection of CAN Wire * Connect CAN1-H(Yellow + White) of Provided Power cable to CAN-High(Brown + Red) of Car. * Connect CAN1-L(Yellow) of Provided Power cable to CAN-Low(Brown) of Car ※ You will be able to find the bunch of cable behind Comand control unit... -
Page 14: Quality Warranty
10. Quality Warranty This product has been tested and have passed under our strict quality control. If the failure occurred due to the carelessness of workmanship within one year after the purchase, we are responsible to repair free of charge. Please bring this warranty to dealer whom you purchased this product from at the repair time.
