Summary of Contents for Janfire Flex-a

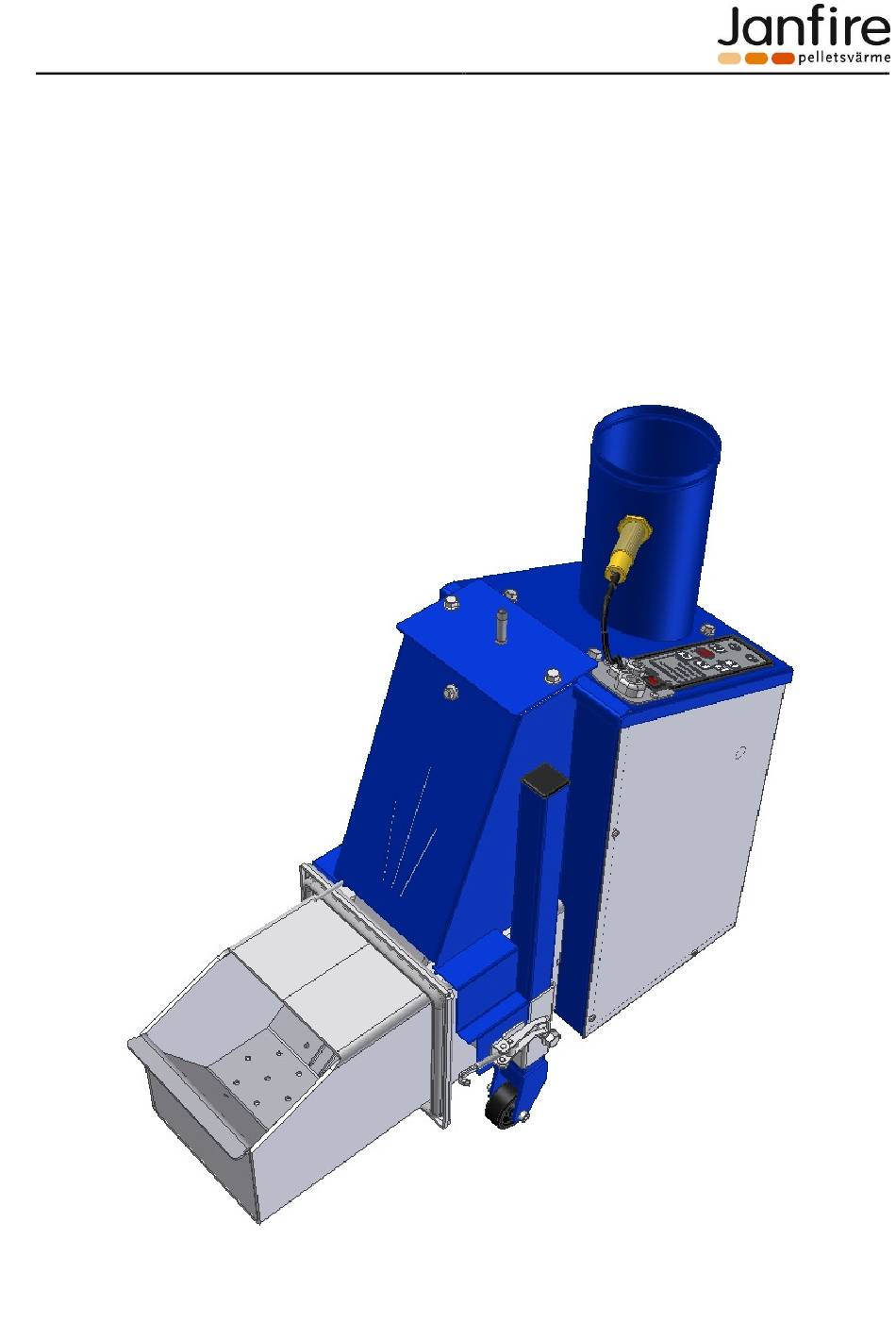

- Page 1 Installation and Maintenance Instructions Janfire Flex 2a Installation - Service Pellet burner Janfire Flex-a 11899043 R2 SV © Janfire 2009...
- Page 2 Due to constant development, Janfire AB reserves the right to change part or parts of this publication at any time without notice. Janfire AB assumes no responsibility for errors or damages of any kind resulting from the use of this publication.
-
Page 3: Table Of Contents
Safety Systems .................... 6 CE declaration ....................6 Technical Data ....................7 Operational Description ................8 Pellet burner Flex-a ..................9 Control panel ....................11 Adjustment of various parameters ..............12 Adjustment of the fan speed ................. 13 Adjustment of pellet Feeding ................ 13 Adjustment of external augers running time .......... -
Page 4: Safety Instructions
NOTE: Always follow these instructions for installation, operation and service. NOTE: For personal and operational safety: Use only spare parts, which have been manufactured or approved by Janfire AB. IA Brännare Flex-a R2 SV © Janfire 2009 4(19... -
Page 5: Conventions
Chimney cleaning should be carried out by qualified personnel and in accordance to local standards and codes. DANGER DANGER DANGER Risk of burns High Voltage Rotating parts inside this equipment IA Brännare Flex-a R2 SV © Janfire 2009 5(19... -
Page 6: Safety Systems
NOTE: The free space around the burner shall be in accordance with the authorities' requirements regarding fire safety. 1.5 CE declaration If the unit is used in combinations other than those tested, Janfire AB cannot guarantee compliance with the relevant EU directives. IA Brännare Flex-a R2 SV ©... -
Page 7: Technical Data
1-phase 230 V AC, 50 Hz, 250 W, 2,4 A, Capacitor 14 µF. External auger If auger length greater than 4.30 m, use a 3-phase motor. Weight 25 kg Figur 1 Måttskiss Janfire Flex-a IA Brännare Flex-a R2 SV © Janfire 2009 7(19... -
Page 8: Operational Description
1% weight, and energy content should be about 4.7 - 5.0 kWh/kg. Always verify the energy density and volume weight values for the pellets upon delivery. Burner is intended for wood pellets according to SS 187120 group1-3(Sweden); DIN 51731 size HP2 (Germany). IA Brännare Flex-a R2 SV © Janfire 2009 8(19... -

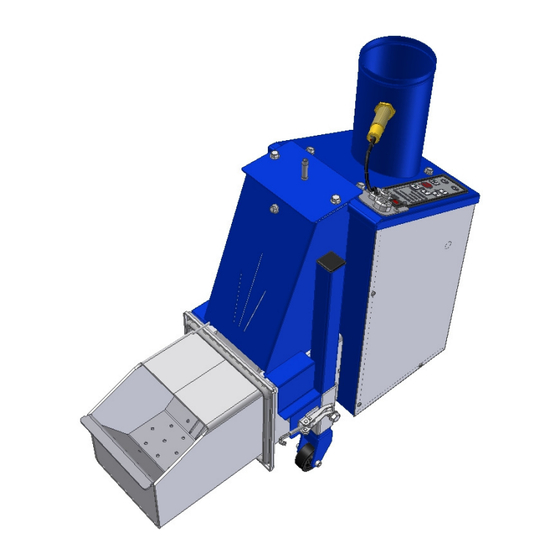

Page 9: Pellet Burner Flex-A
None pellet ”spills over” and ports in the boiler. Combustion Chamber is produced of heat-resistant stainless steels. 5. The combustion plate is very easy to lift out and clean. IA Brännare Flex-a R2 SV © Janfire 2009 9(19... - Page 10 It can easily be moved out of the boiler and avoid heavy lifting. Simple quick lock fasteners - great for cleaning and ash removal. 7. Janfire flex-a can be obtained and adapted for upward burning or horizontally burning flame and therefore suitable for almost all boilers.
-

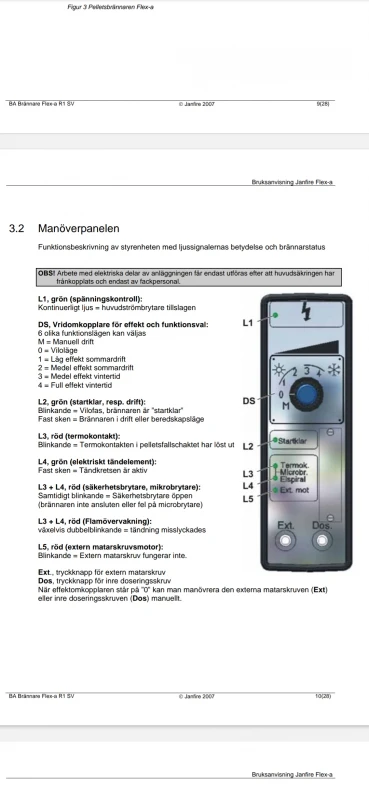

Page 11: Control Panel
In each button for each power option there's a LED that can light up yellow, green or both yellow and green. When one of the power buttons activates lights diodes as follows: Yellow and green ignition progress Yellow and flashing green ignition progress-electric coil active Green – Combustion running IA Brännare Flex-a R2 SV © Janfire 2009 11(19... -
Page 12: Adjustment Of Various Parameters
Note!!! Modify mode cannot be enabled during computer start-up or warming (transition between maintenance and operation). Each press of the button changes the edit mode in this order: IA Brännare Flex-a R2 SV © Janfire 2009 12(19... -
Page 13: Adjustment Of The Fan Speed
Feeding time is normally 1.0 sec. In this case, only the diode in the middle (elspiral) shine. Each press to Ext (left button) decreases time for 0.1 sec. Each press to Dos (right button) increases time for 0.1 sec. IA Brännare Flex-a R2 SV © Janfire 2009 13(19... -
Page 14: Adjustment Of External Augers Running Time
3.7 Adjusting of maintenance time Press Edit from external auger settings mode to activate mode for adjusting of maintenance time. Maintenance time is normally 60 min.”Termokontakt” diode at the top shine. IA Brännare Flex-a R2 SV © Janfire 2009 14(19... -
Page 15: The Functional Description
"ext" key and select any effect mode (not "M") and the burner starts without safety blow. Start-up: IA Brännare Flex-a R2 SV © Janfire 2009 15(19... - Page 16 1 second and with various breaks in the respective power level available different quantities of pellets. Air flow can be adjusted by adjusting the voltage to the fan in each level individually, so that a good combustion is obtained. IA Brännare Flex-a R2 SV © Janfire 2009 16(19...
-
Page 17: Schema El
Installationsanvisning Janfire Flex - a 4 Inkopplingsschema El IA Brännare Flex-a R2 SV © Janfire 2009 17(19... - Page 18 Installationsanvisning Janfire Flex - a IA Brännare Flex-a R2 SV © Janfire 2009 18(19...
- Page 19 Installationsanvisning Janfire Flex - a Anteckningar: IA Brännare Flex-a R2 SV © Janfire 2009 19(19...
