Read and understand all
WARNING
instructions. Failure to follow
all instructions listed below may result in
serious personal injury.
Fully assemble and tighten all the fasteners
required for this stand. Also remember to
occasionally check the stand and make
sure it is still tight. A loose stand is unstable
and may shift in use and cause serious injury.
Turn tool switch off and disconnect power
before mounting to the stand. Unintended
startup during assembly can cause injury.
You have purchased a Bosch GTA500 Folding
Table Saw Stand for the GTS1031 Table Saw.
Designed for job site use, this unit sets up and
folds quickly.
BEFORE YOU ASSEMBLE THIS
TABLE SAw STAND:
Sort out and account for all parts to make sure
that you have all necessary materials to
assemble your stand. Do not discard packing
material until all parts are accounted for.
Assembling the Stand
1. Slide the legs B into the stand (Fig. 1).
Note: Each leg is marked A, B, C, or D.
These correspond with the respective leg
on the main stand. Match A with A and B
with B, etc.
2. Align the hole in the leg with the hole in the
stand.
3. Install a bolt C through each leg.
4. Use a wrench and a phillips screwdriver
and tighten the nuts D securely.
All manuals and user guides at all-guides.com
Safety Instructions
Before operating make sure the entire unit
is placed on a solid, flat, level surface.
Serious injury could occur if tool is unstable
and tips.
Never stand on tool or its stand or use as
ladder or scaffolding. Serious injury could
occur if the tool is tipped or the cutting tool is
accidentally contacted. Do not store materials
on or near the tool such that it is necessary to
stand on the tool or its stand to reach them.
Use only Bosch replacement parts. Any
others may create a hazard.
Pre-Assembly
Item
A
B
C
D
Assembly

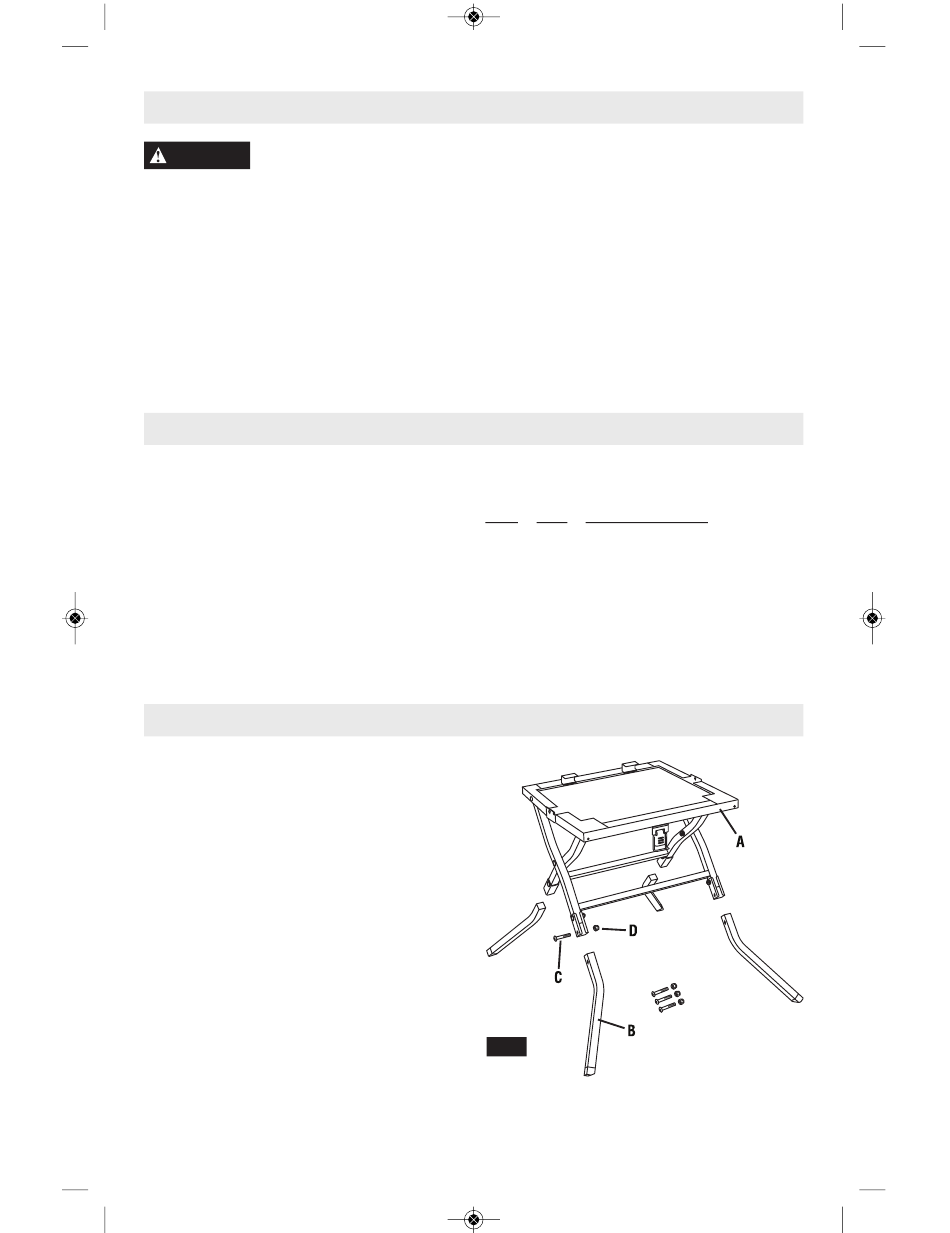

FIG. 1
-2-
GTA500 TABLE SAw STAND
PACkAGE CONTENTS:
Qty.
Part Description
(1)
Stand
(4)
Stand Leg
(4)
Bolt
(4)
Lock Nut
Advertisement
Table of Contents
