Installation
3.1 Installation

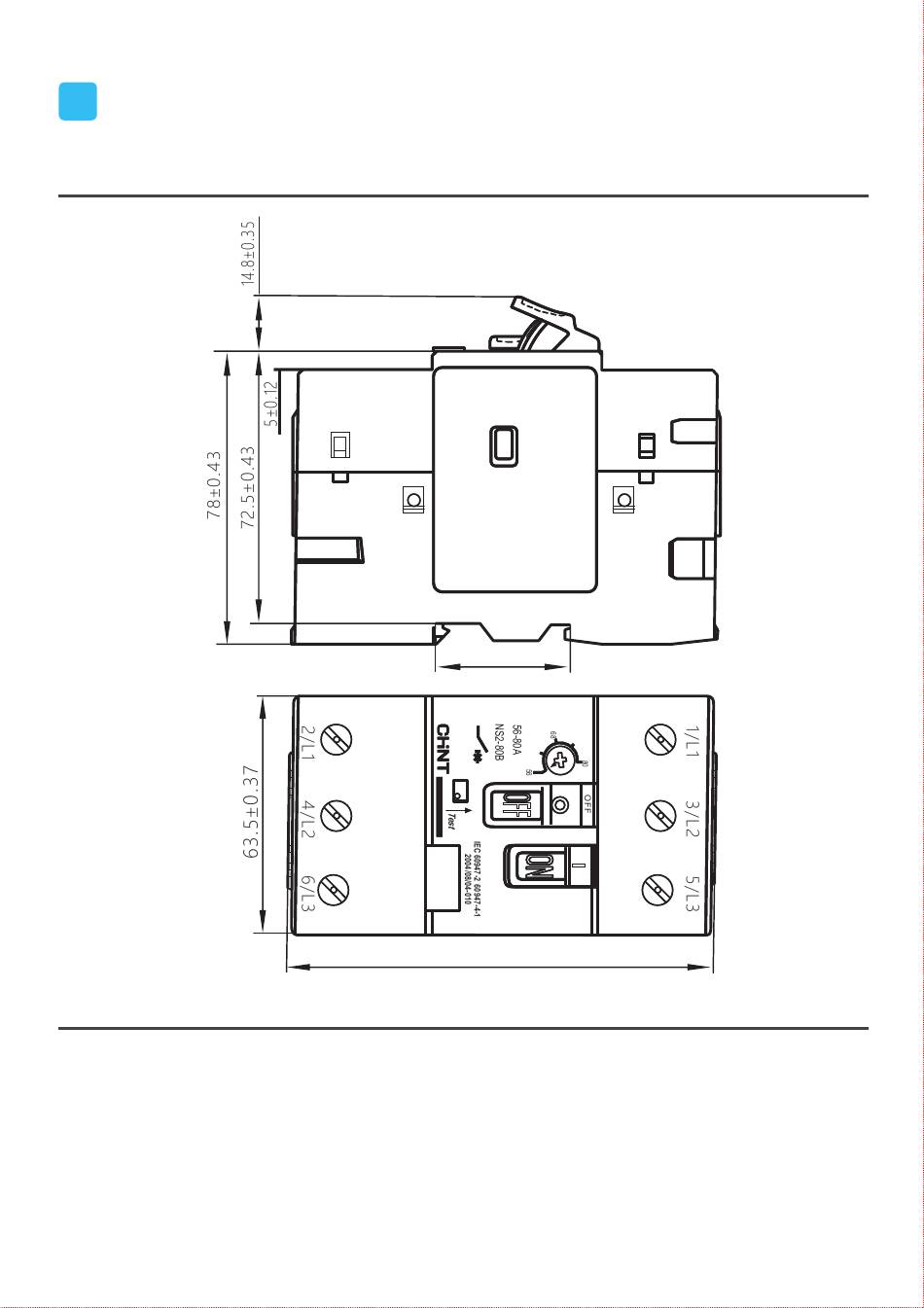

Figure 2 Overall and installation dimensions of NS2-80B
See Figure 3 for assembly procedure of starter and auxiliary contacts
when the starter is disconnected:
a) Confirm the starter is disconnected (the red OFF button is press
down);
b) Hang the front end of the auxiliary contacts on the slot at the left
front of the starter and move the auxiliary contacts towards the starter;
35.7
112.5±0.57
04
