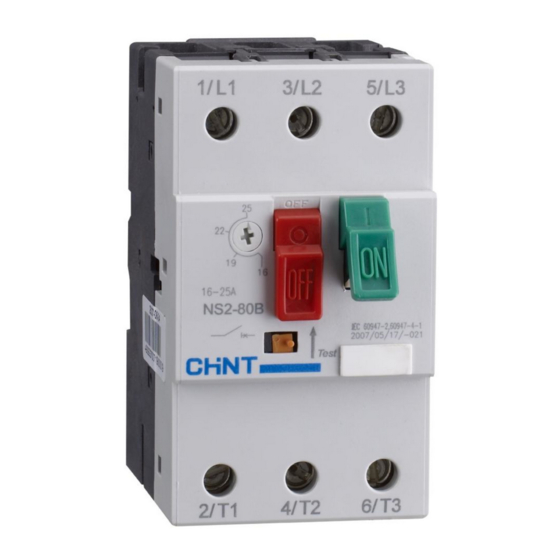

- Page 1 NO:2020.04 NS2-80B AC Motor Starter User Instruction Standard: IEC/EN 60947-2 IEC/EN 60947-4-1...
-
Page 2: Safety Warning
Safety Warning Only professional technicians are allowed for installation and maintenance. Installation in any damp, condensed-phase environment with inflammable and explosive gas is forbidden. When the product is being installed or maintained, the power must be switched off. You are prohibited from touching the conductive part when the product is operating. -
Page 3: Main Technical Parameters
The product can also be used for distribution line protection and infrequent load transfer or used as isolator. NS2-80B AC motor starter can be added with a set of side mounted auxiliary contacts: AU11(1NO+1NC) or AU20(2NO). See product catalog or product itself for technical parameters of auxiliary contacts. - Page 4 Table 2 Technical parameters and performance Content Parameters 690V Rated insulation voltage Ui(V) 400/415 Rated voltage Ue(V) 50/60Hz Rated frequency (Hz) Rated impulse withstand voltage Uimp(kV) IP20 Enclosure protection class Long term duty system Rated duty system Conductor (wire/conducting bar) strip length before being inserted into terminal (mm) Conductor (wire/conducting bar) 4~25...
- Page 5 Time 10000 1000 0.01 0.001 1 1.5 2 x times of setting current (1) Start from cold state, 3-pole (2) Start from cold state, 2-pole (3) Start from thermal state, 3-pole Figure 1 Time – current characteristic curve (20℃)
-
Page 6: Installation
3.1 Installation 35.7 112.5±0.57 Figure 2 Overall and installation dimensions of NS2-80B See Figure 3 for assembly procedure of starter and auxiliary contacts when the starter is disconnected: a) Confirm the starter is disconnected (the red OFF button is press down);... - Page 7 c) Before the extension bar at the center of the auxiliary contacts touches the starter, use a screwdriver to push the central slot of the auxiliary contacts so it stays at the top; d) Push the auxiliary contacts towards the starter, press and hold the blue button at the end of the auxiliary contacts and fit it into the starter;...
- Page 8 3.2 Wiring Use single core PVC insulated copper conductor for wiring, see Table 3 for sectional area of the wire. Table 3 Connecting wire for operating current Rated current Sectional area of (setting current value of thermal element) connecting wire Ie A 12 I≤20 ＜...
-
Page 9: Maintenance
3.4 Coordination of protection If the short-circuit current is not bigger than the rated ultimate short circuit breaking capacity of the starter, the protection should be provided by the starter; if the short circuit current is bigger than the rated ultimate short-circuit breaking capacity of the starter, the protection should be provided by the fuse or circuit breaker. -
Page 10: Environmental Protection
Table 5 Analysis and Troubleshooting of Faults Symptoms Cause analysis Troubleshooting method and precautions The setting current value of the starter is smaller Fine tune the cam to match the set current than the actual operating matches the actual motor current. current of the motor. - Page 11 QC PASS NS2-80B AC Motor Starter IEC/EN 60947-2 IEC/EN 60947-4-1 Check 28 Test date: Please see the packing ZHEJIANG CHINT ELECTRICS CO.,LTD.
- Page 12 NS2-80B AC Motor Starter User Instruction Zhejiang Chint Electrics Co., Ltd. Add: No.1, CHINT Road, CHINT Industrial Zone,North Baixiang, Yueqing, Zhejiang 325603,P.R.China E-mail: global-sales@chint.com Website: http://en.chint.com...
