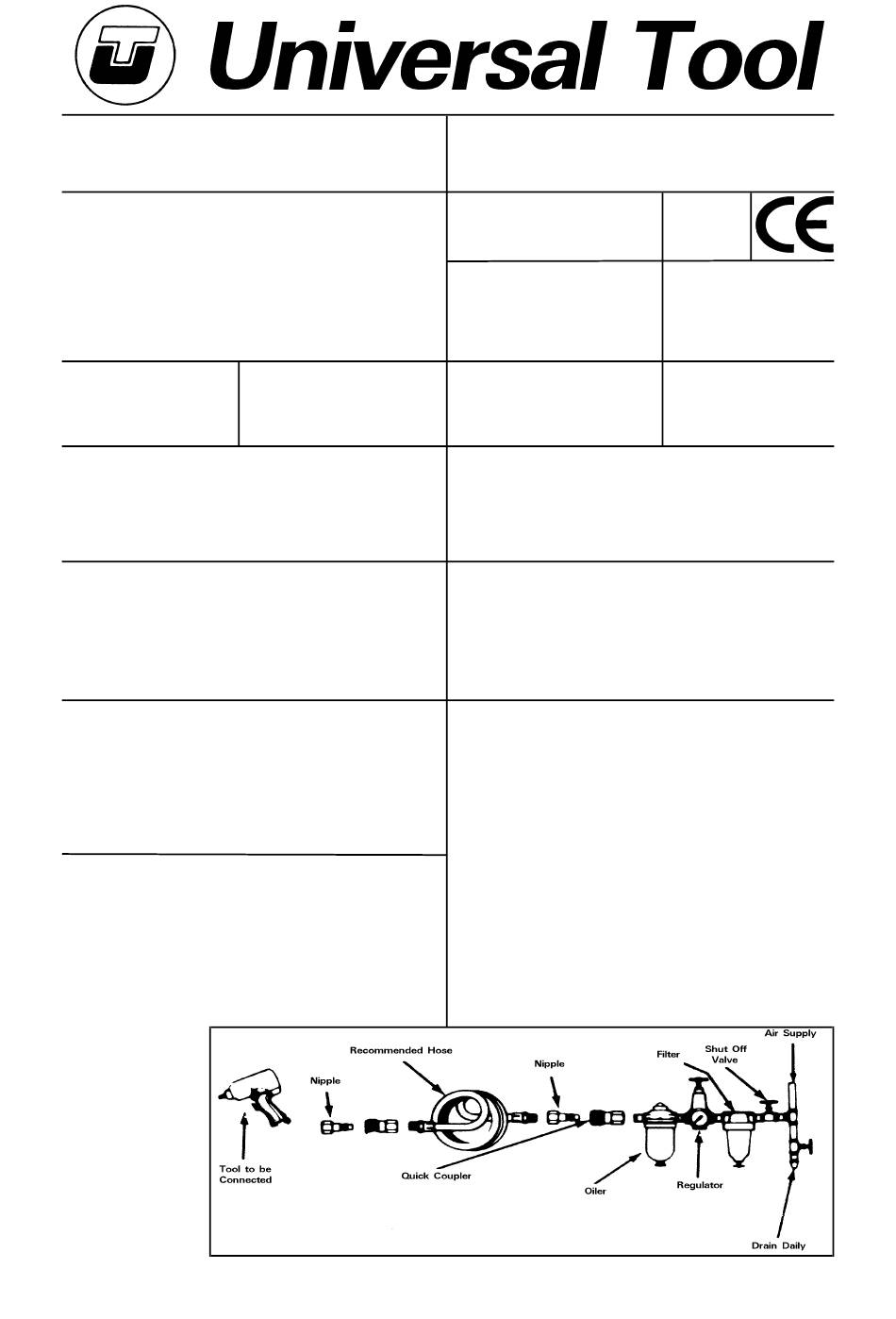

Universal Tool UT8955 Quick Start Manual

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
2.42 lbs
Kg
1.1
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Foreseen Use
These screwdrivers are designed for the tightening and loosening of
threaded fasteners within the range as specified by the manufacturer.
They should only be used in conjunction with 1/4" male hex shank
screwdriver bits and fastener drivers.
Do not use the tool for any other purpose than that specified without
consulting the manufacturer or his authorised representative.
Work Stations
The tool should only be used as a hand held, hand operated tool. It is
always recommended that the tool is used when standing on a solid
floor. It can be used in other positions, but before any such use the
operator must be in a secure position having a firm grip and footing.
The operator must adopt a firm grip sufficient to resist the torque
reaction of the tool, i.e. the tool will try to turn in the hand. The
operator must also be aware that when loosening fasteners, the tool
can move quite
quickly away from the
fastener being un-
done. An allowance
must be made for this
rearward movement
to avoid hand entrap-
ment. The operator
must also make al-
lowance that if the tool
does turn in the hand,
the hand is not
trapped against any
rigid object.
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a bar n/a PSI
7 bar 100 PSI
Yes
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
Straight Reversible
Screwdriver
Model No/Nos
UT8955
Recommended Hose Bore
Size - Minimum
3/8 Ins 10
Noise Level Sound Pressure Level 83.0 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level
Test Method Tested in accordance with ISO
standards 8662 Parts1 & 7
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air pressure
at the tool of 90 p.s.i./6.3 bar when the tool is running with the trigger
fully depressed. Use recommended hose size and length. It is
recommended that the tool is connected to the air supply as shown
in figure 1. Do not connect the tool to the air line system without
incorporating an easy to reach and operate air shut off valve. The air
supply should be lubricated. It is strongly recommended that an air
filter, regulator, lubricator (FRL) is used as shown in Figure 1 as this will
supply clean, lubricated air at the correct pressure to the tool. Details
of such equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by shutting
off the air supply to the tool, depressurising the line by pressing the
trigger on the tool. Disconnect the air line and pour into the intake
bushing a teaspoonful (5ml) of a suitable pneumatic motor lubricating
Page No 1
RPM
1600
Cycles Per Min
Serial No
Recommended Max.
Hose Length
M/M 30 Ft 10
11.8 Metres / Sec²
M
