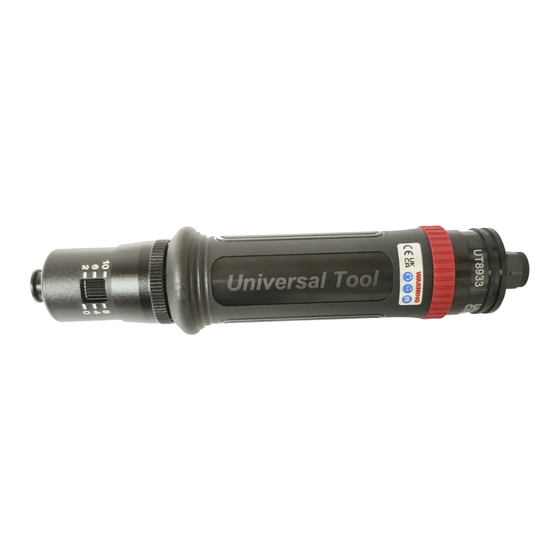

Air Auto Shut-Off Straight Screwdrivers
This product is designed for installing and removing threadedfasteners in wood, metal,
and plastic. The use of spare parts/accessories other than those originally supplied by
the manufacturer may result in a drop in performance and/or increased
maintenance/noise level/vibrations, and as the result, the full cancellation of the
manufacturer's liability. No other use is permitted. For professional use only.

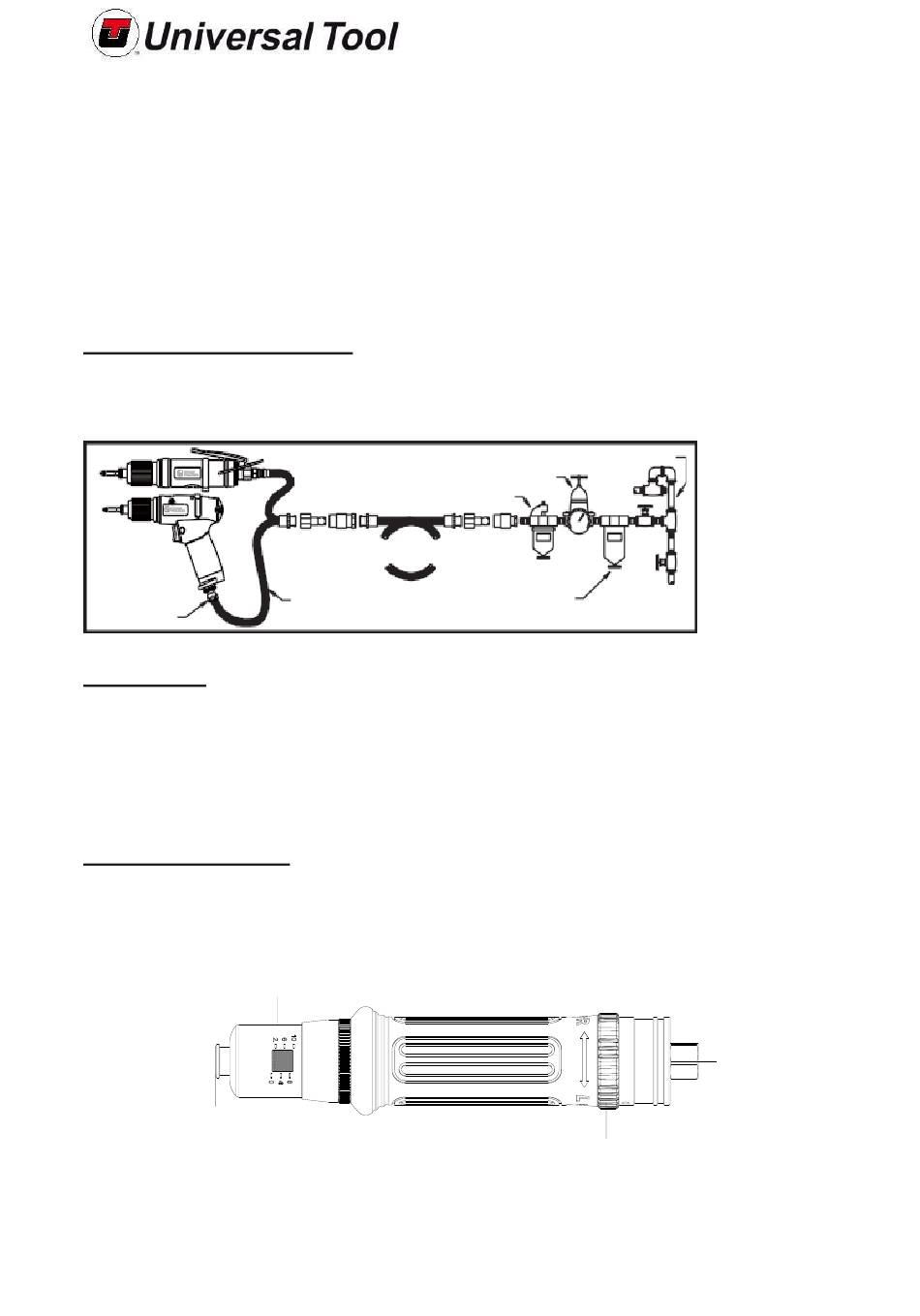

Air Supply Requirements
1. Supply tool with 90 PSI (6.3 KG/CM
reduces toollife.
2.
Connect the tool to the airline using pipe, hose, and fitting sizes shown in the diagram
below.
1/4 NPT
Lubrication
1.
Use an air line lubricator with SAE #10 oil, adjustedtotwo (2) drops per minute.
If an air line lubricator cannot be used, add air motor oil to the inlet once a day.
2.
For gearing and clutch, use Shell-grade grease containingmolybdenum.
3.
Grease clutches every 12,000 screws.
Torque Adjustment
Shut Off Clutch: Grip the tool around the handle and press the tool into the fixing
which is to be tightened. The motor will start and tighten the fixing to the required
torque set by adjusting the tensions on the clutch spring. At this point, the internal drive
is disengaged and the air to the motor cut off.
Torque Cover
Bit Retainer Sleeve
INSTRUCTION MANUAL
2
) of clean, dry air. Higher pressure drastically
CA048362 (1/2") NPT
CA048361 (1/2") NPT
1/2" (12mm)
CA048360 (1/2") NPT
3/8" (10mm)
10' (3m) MAX
1/2" (12mm)
90
0 1 30
Air Inlet
R/L Switch
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UT8934 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Universal Tool UT8934

  • Page 1 INSTRUCTION MANUAL Air Auto Shut-Off Straight Screwdrivers This product is designed for installing and removing threadedfasteners in wood, metal, and plastic. The use of spare parts/accessories other than those originally supplied by the manufacturer may result in a drop in performance and/or increased maintenance/noise level/vibrations, and as the result, the full cancellation of the manufacturer’s liability.
  • Page 2: Operating Procedures

    Operating Procedures 1. Make sure the air in airline is clean and dry. 2. Make sure the tool is connected correctly with the air compressor. 3. Install a bit (as illustrated below). Before using, do check the bit being installed in the tool correctly.
  • Page 3 Set The Torque Release the torque cover Push Softly Turn counter clockwise to lower the torque Take off the Put the torque Fasten the rear Turn clockwise to adjustment ring cover back housing increase the torque R/L Switch R Indication – turn right (clockwise) – fastening screw L Indication –...
  • Page 4 UT8934 AUTO SHUT-OFF STRAIGHT SCREWDRIVER - 550rpm / 1.5~10Nm...
  • Page 5 UT8934 AUTO SHUT-OFF STRAIGHT SCREWDRIVER - 550rpm / 1.5~10Nm QTY/SE INDEX# PARTS NO. PARTS DESCRIPTION QTY/SET INDEX# PARTS NO. PARTS DESCRIPTION 7160001PS HOUSING CAP 7160041PS BLADE 7160061PS TORQUE COVER 7160040PS ROTOR 7160002PS C RING 7160042PS CYLINDER 7160003PS BIT RETAINER SLEEVE...
  • Page 6 We FLORIDA PNEUMATIC MFG CORP, 851 JUPITER PARK LANE, JUPITER, FL 33458, USA Declare under our sole responsibility that the machine falls within the provisions of the directive: Machine Type: UT8934 Air Auto Shut-Off Screwdriver Technical Data: Chuck Size : 1/4”...
