Universal Tool UT8943 Instruction Manual

INSTRUCTION MANUAL

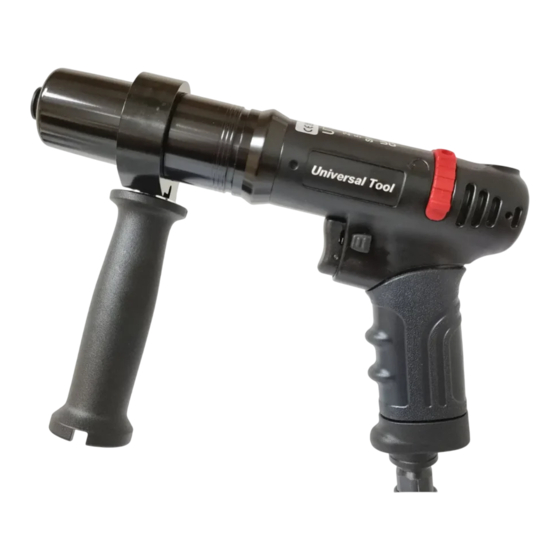

Air Auto Shut-Off Pistol Screwdriver
This product is designed for installing and removing threaded fasteners in wood, metal and
plastic. The use of spare parts/ accessories other than those originally supplied by the
manufacturer may result in a drop in performance and/or increased maintenance / noise
level / vibrations. As a result, the full cancellation of the manufacturer's liability. No other
use is permitted. Professional use only.
Air Supply Requirements
Supply tool with 6.35 KG/CM
1.
reduces the tool life.
Connect the tool to air line using pipe, hose and fitting sizes shown in the diagram below.
2.
Lubrication
1. Use an air line lubricator with SAE #10 oil. Adjusted to two (2) drops per minute. If an air
line lubricator is not available, add air motor oil to the inlet once a day.
2. For gearing and clutch, use Shell-grade grease containing molybdenum.
3. Grease clutches every 12,000 screws.
Torque Adjustment
Shut Off Clutch: Grip the tool around the handle and press the tool into the fixing which is
to be tightened. The motor will start and tighten the fixing to the required torque set by
adjusting the tension on the clutch spring. At this point, the internal drive is disengaged and
the air to the motor cut off.
Bit Retainer Sleeve
Operating Procedures
2
(90 PSI) clean and dry air. Too much pressure drastically
Torque Cover
Trigger
-
ENGLISH
Right/Left Switch
Air-inlet
1
