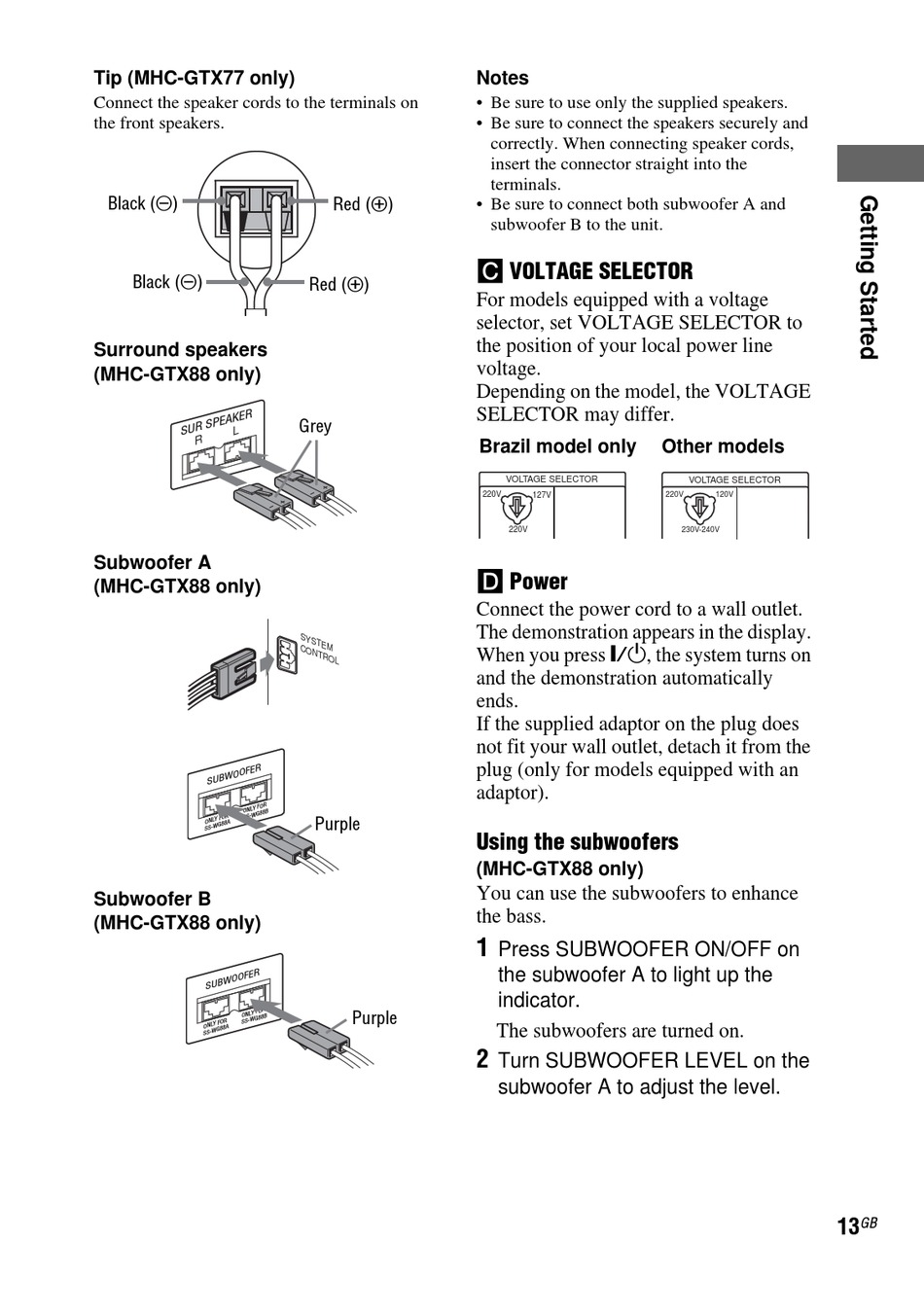

Sony MHC-GTX88 Operating Instructions Manual page 13

Tip (MHC-GTX77 only)
Connect the speaker cords to the terminals on
the front speakers.
Black (#)
Black (#)
Surround speakers
(MHC-GTX88 only)
Subwoofer A
(MHC-GTX88 only)
Subwoofer B
(MHC-GTX88 only)
Red (3)
Red (3)
Grey
Purple
Purple
Notes
• Be sure to use only the supplied speakers.
• Be sure to connect the speakers securely and
correctly. When connecting speaker cords,
insert the connector straight into the
terminals.
• Be sure to connect both subwoofer A and
subwoofer B to the unit.
C VOLTAGE SELECTOR
For models equipped with a voltage
selector, set VOLTAGE SELECTOR to
the position of your local power line
voltage.
Depending on the model, the VOLTAGE
SELECTOR may differ.
Brazil model only
VOLTAGE SELECTOR
220V 127V
220V
D Power
Connect the power cord to a wall outlet.
The demonstration appears in the display.
When you press "/1, the system turns on
and the demonstration automatically
ends.
If the supplied adaptor on the plug does
not fit your wall outlet, detach it from the
plug (only for models equipped with an
adaptor).
Using the subwoofers
(MHC-GTX88 only)
You can use the subwoofers to enhance
the bass.
1
Press SUBWOOFER ON/OFF on
the subwoofer A to light up the
indicator.
The subwoofers are turned on.
2
Turn SUBWOOFER LEVEL on the
subwoofer A to adjust the level.
Other models
VOLTAGE SELECTOR
220V 120V
230V-240V
13 GB
