Summary of Contents for Dipol DTM1000R

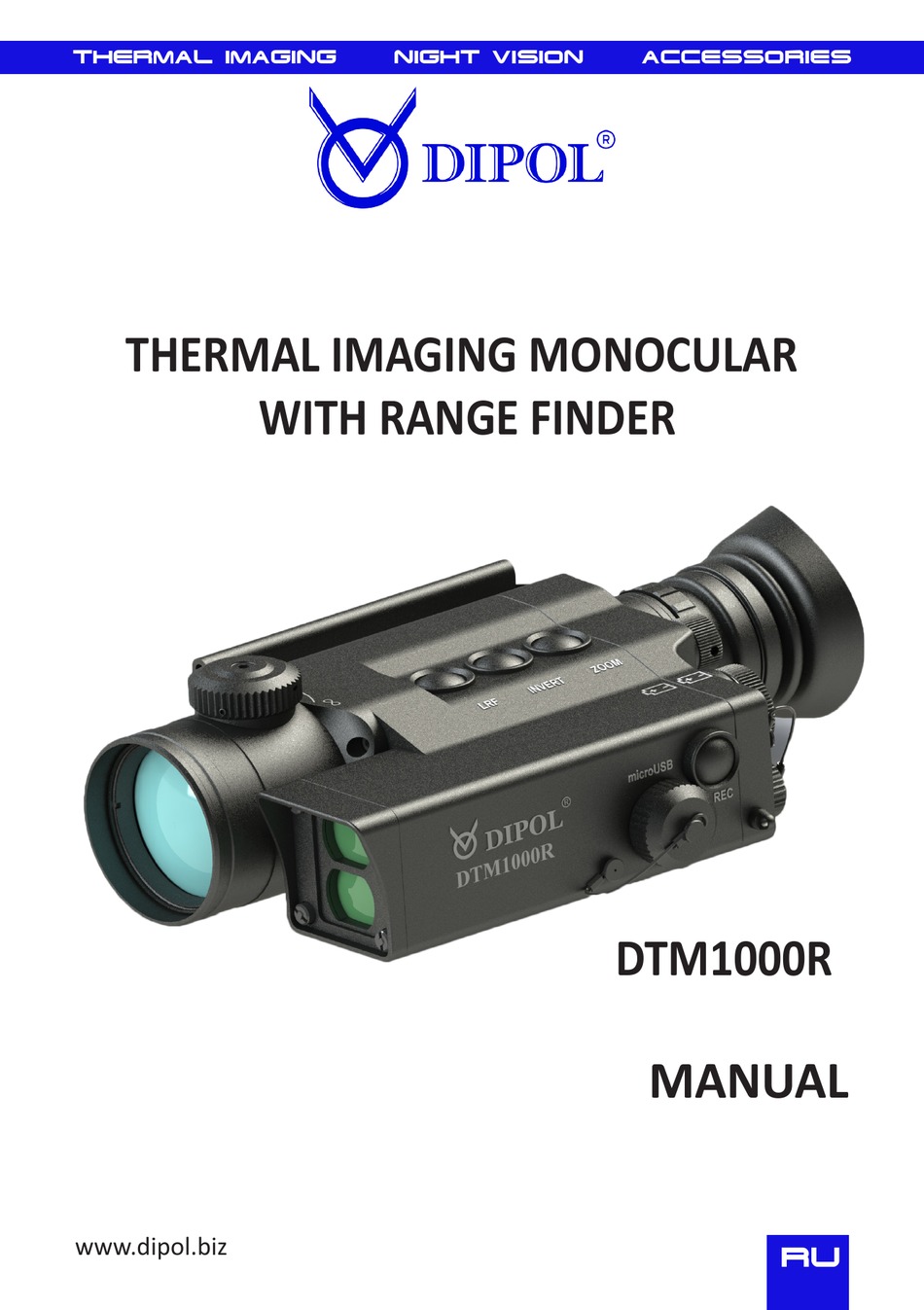

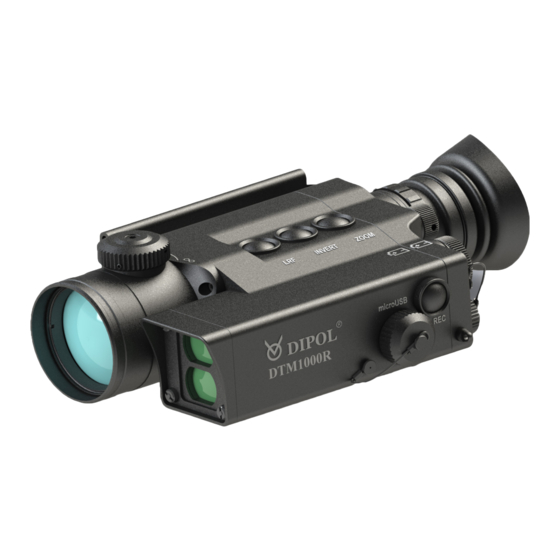

- Page 1 THERMAL IMAGING MONOCULAR WITH RANGE FINDER DTM1000R MANUAL www.dipol.biz...
-
Page 2: Table Of Contents
7. Quick adjustments of the device 8. Main menu 9. Use of additional accessories 10. Possible defects and methods of their removal 11. Storage and transportation 12. Acceptance certificate 13. Warranty 14. Company-producer Attention! Before operating read attentively the present manual! www.dipol.biz... -
Page 3: Package
• Reset of the device should be fulfilled after 20-30 sec after is has been off. 3. Purpose The monocular is intended to observe movable and immovable objects, aiming shooting from hunting arm in conditions of various illumination and limited visibility (fog, dust, etc.) www.dipol.biz... -
Page 4: Technical Characteristics
6 / 2 x CR123A Operating time (+20°C), hours Operation temperature range, °С -20 … +50 Degree of protection according to IEC 60529 IPX5 External power supply possible, microUSB Pre-installed Profiles /users Various colors of aiming reticle possible Video recording possible WiFi possible www.dipol.biz... -
Page 5: Design And Device
6. On-indicator 7. Digital zoom button 8. Polarity change button 9. Video record 10. Hand belt 11. micro USB slot cap 12. Battery compartment cap 13. Range finder 14. Range finder control 15. Proximity sensor 16. Outer power source slot www.dipol.biz... -
Page 6: Setting-Up Procedures And Performance Inspection
If on-indicator (6) doesn’t light or is blinking after switching, and there is no image of charge indicator/switched outer power supply in the eyepiece or it is blinking, may be, power elements or outer power supply are uncharged. You need to change power elements or external power supply. www.dipol.biz... -
Page 7: Quick Adjustments Of The Device
To stop it press the button once again. In details the process of video recording is described in main menu. Pay attention, if power supply charge is too low video recording doesn’t work. If during recording power supply charge becomes too low the record stops automatically. www.dipol.biz... - Page 8 -10 up to +10), after that by rotating the handle (4) fulfill the adjustment. Adjustment of this parameter makes image better in case of small temperature contrasts of the observed object or phenomena with the environment. www.dipol.biz...
-
Page 9: Main Menu
Profile. Pay your attention, unlike operation adjustments done with the help of MENU handle while the device is working, after switching off the device the adjustments done through the menu are saved for user profiles. www.dipol.biz... - Page 10 While activating the given part of the menu during video recording simultaneous broadcasting of video is possible in real time via a computer or smartphone with WiFi. The device creates POP with serial number of the device and password: 12345678. www.dipol.biz...
- Page 11 Proximity sensor Activates function of microdisplay switching off when it is away from the user’s eye to save power or to avoid demask. Proximity sensor range, mm Allows to install the distance when function of microdisplay auto switching is activated. www.dipol.biz...
- Page 12 In this part you may choose level of interface transparency to lower “burning” of microdisplay with static image. Auto power off, minutes Allows automatically turns off the device after selected time of inactivity. Language Allows to choose interface language. Russian, English, Deutch, Spanish are available. www.dipol.biz...
- Page 13 Shows the version of device hardware. Software version Shows the present version of device software. Settings reset. It means coming back to factory settings (doesn’t touch calibrating values of range finder and parameters of users’ profiles). Please note, during video recording reset is impossible! www.dipol.biz...
-
Page 14: Use Of Additional Accessories
+20°C. When using power elements of the unknown producers, as well as when operating in winter operating time of the device may decrease and it doesn’t mean technical fault. www.dipol.biz... -
Page 15: Storage And Transportation
Conditions of device transportation are determined according to climatic factor influence due to group 5 (OZ4) in accordance with GOST 15150-69 (at the temperature of - 50 up to +50 °С, with the relative humidity of not more than 98 % at 25 °С). www.dipol.biz... -
Page 16: Acceptance Certificate
12. Acceptance certificate Thermal imaging monocular Serial № ……………….................…… Sensor № ....……..............…… Release date ……………….............…………. Representative of quality control department......………. www.dipol.biz... -
Page 17: Warranty
Warranty period constitutes 12 months. Company-producer repairs the device or changes it in case of producer- caused failure during warranty period. www.dipol.biz... -
Page 18: Company-Producer
14. Company-producer Scientific-productive firm «Dipol» 210033, Vitebsk, Lazo str., 115А, Republic of Belarus Tel. +375 212 530 063 Fax. +375 212 530 068 WEB: http:// dipol.biz: Email: contact@dipol.biz www.dipol.biz... - Page 19 Notes www.dipol.biz...
- Page 20 Scientific-productive firm «Dipol» 210033, Vitebsk, Lazo str., 115А, Republic of Belarus Tel. +375 212 530 063 Fax. +375 212 530 068 WEB: http:// dipol.biz Email: contact@dipol.biz...
