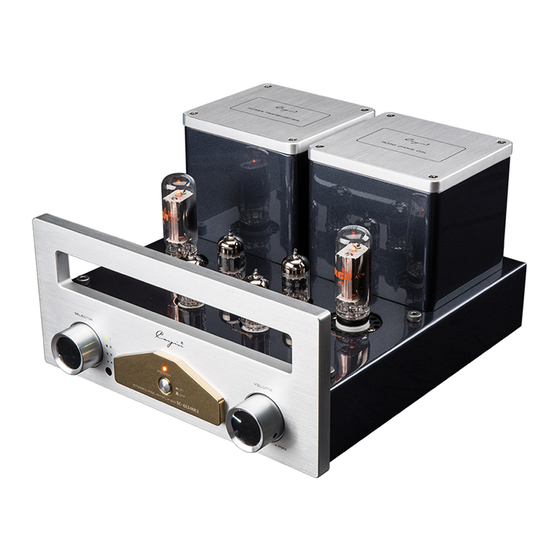

- Page 1 SELECTOR V O L U M E POWER M I N M A X LS MK VACUUM TUBE PRE-AMPLIFIER User's Manual...
-
Page 2: Table Of Contents
Thanks for choosing CAYIN SC-6LS MK2 Vacuum Tube Pre-Amplifier and please read the user's manual carefully before installation and operation. Table of Contents ……………………… Table of Contents………………………………………………………………………………… …………………………………………………………………………………………………………2 Package Contents ……………………………………………………………………………………………………………3 Product Features …………………………………………………………………………………………………………3 Safety Precautions ………………………………………………………………………………………………………………4 Specifications Maintenance…………………………………………………………………………………………………………………5 ……………………………………………………………………………………………………………5 Warranty Service …………………………………………………………………………………………………………………6... -
Page 3: Package Contents
We are not responsible for problems and damages caused by non-original parts replacement in the amplifier. Package Contents Please carefully check the package first and then open it. Package contents include: 1. CAYIN SC-6LS MK2 1 piece； 2. Main Fuse 2 pieces； 3. Power cord 1 piece；... -
Page 4: Product Features
Product Features ◆ Hand-made construction with the finest point-to-point wiring. ◆ With OUT1, OUT2 output terminals. ◆ Specially designed EI transformer for power supply. ◆ Four JJ 12AU7/ECC82 for the line amplification. ◆ Two RCA 22DE4 rectifier tube for rectification. ◆... -
Page 5: Specifications
◆ To reduce the risk of electric shock, do not remove the cover. ◆ No user serviceable parts inside. Refer servicing to qualified CAUTION RISK OF ELECTRIC SHOCK service personnel. DO NOT OPEN ◆ To reduce the risk of fire or electronic shock, do not expose the unit to rain or moisture. -
Page 6: Maintenance
Maintenance NOTE: ◆ Use the soft dry cloth to clean up the chassis regularly. ◆ Do not use any chemicals for cleaning. SELECTOR V O L U M E POWER M I N M A X Warranty Service 1.This product is warranted for a period of twelve months beginning from the date of purchase. 2.The defective product must be returned to your dealer or our company for repairing when your dealer or our company accepts your requirement. -
Page 7: Precautions
Precautions Connected to the power socket INPUT OUTPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN STEREO PRE-AMPLIFIER LS MK Connected to AC Input ZHUHAI SPARK ELECTRONIC EQUIPMENT CO., L TD. Connection of power cord: Connect the speaker cables and signal cable first and then insert the power cord into the power socket. -
Page 8: Front Panel
You can hear sound from 2 when 2 indicator is on. You can hear sound from 3 when 3 indicator is on. You can hear sound from 4 when 4 indicator is on. Cayin SC-6LS MK2 has memories and it will default last operation state when turning on. -
Page 9: Rear Panel
Rear Panel INPUT OUTPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN STEREO PRE-AMPLIFIER LS MK ZHUHAI SPARK ELECTRONIC EQUIPMENT CO., L TD. ① Signal Input Terminal Used for audio source input. ② Output Terminal Used to connect to the unbalance input terminal of power amplifier. ③... -
Page 10: Top Panel
Top Panel 4 12 2 12 5 22 6 22 1 12 3 12 ① V5、V6:22DE4 ② V1、V2、V3、V4:JJ 12AU7/ECC82 NOTE ◆ Be careful of the high temperature of the tubes during operation. ◆ Please replace the power tubes after switch off in 20 minutes, and follow the suggetion to unplug the inset the tubes. -
Page 11: Remote Control
Remote Control 1. Triode/Ultralinear Selector (This button is invalid for this device) Installation 2. Audio Source Input Selector 1. Place the remote control right-side up. Screw the rear 3. Mute Button cover open with the attached hexagon screwdriver. 2. Pull out the (AAA)battery case carefully (do not break 4. -
Page 12: Installation
Installation Carefully read and follow the manual for installation: ◆ Do not place the machine near heat sources such as radiators, heat registers or other products that produce heat. ◆ In order to avoid being overheated please keep the unit's ventilation open. ◆... -
Page 13: Audio Connection
Audio Connection Connection method of CAYIN SC-6LS MK2 with other audio equipments Take pictures below for your reference. BLACK AC INPUT AC INPUT z200 SPEAKER OUTPUT INPUT z200 SPEAKER OUTPUT INPUT CAUTION CAUTION RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK... -
Page 14: Turning On
Turning On Before turning on the amplifier please make sure all connections are right and power supply is stable. • Turn on the amplifier, the power indicator will be on and the working indicator will keep flickering. • The working indicator will be on after 30 seconds. It means that the amplifier is working normally. -
Page 15: Troubleshooting
Troubleshooting Please follow the instruction in the manual in order to keep the amplifier work in its best state. If wrongly operated and you thought that would be troubles please check according to following tip to look for the exact reason.
