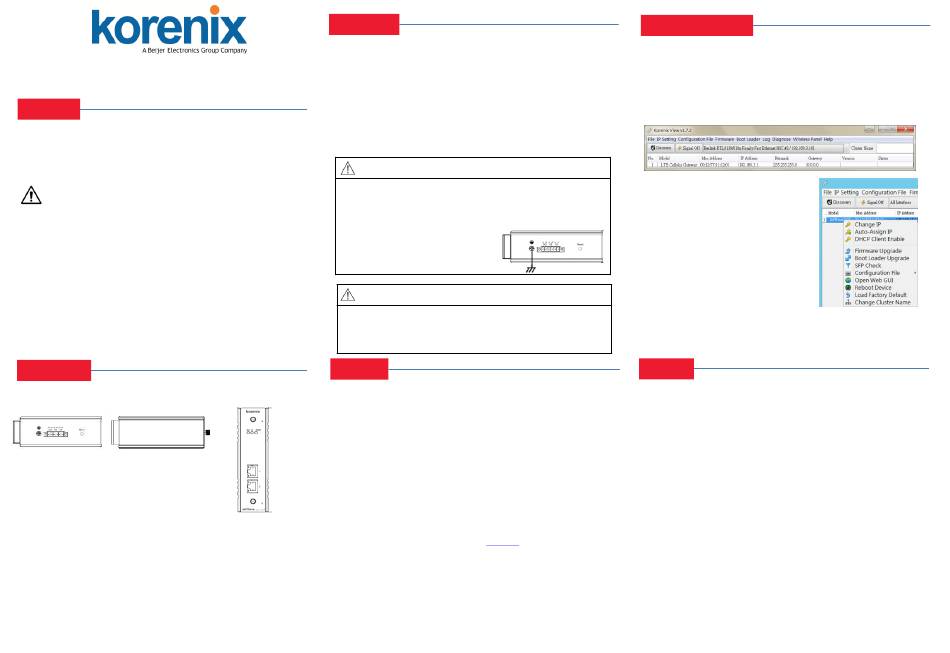

Korenix JetWave 2212G Quick Installation Manual

JetWave 2212G
Industrial 802.11 a/b/g/n/ac 2.4G/5G 2T2R MIMO Wireless AP
Quick Installation Guide V1.0
Overview
JetWave 2212G is a wireless access point. They equips with 2-port Fast
Ethernet and IEEE 802.11a/b/g/n/ac 2.4G and 5G wireless radio. With the
JetWave 2212G wireless access point, a network designer will easily achieve
the integration of wired and wireless networks
Safety Instruction
Warning! Read the user manual before connecting the system to the
power source.
Radio Equipment Directive 2014/53/EU Declaration
The product may be operated in all European Union countries. While you see
the CE Marking printed on our product, it indicates the product complies
with the requirement of the Radio Equipment Directive 2014/53/EU.
We provides formal declaration of RED for wireless product, different
product may comfort to different standards of Health & Safety, EMC, Radio
and other specific standard. You can download the formal document of the
product in our website or apply from our Sales/Technical people.
Appearance
Top Panel
Bottom Panel
 Eth1/Eth2: 2 x 10/100/1000Base-TX
 Antenna Socket: (A) WIFI-Main (B) WIFI-Aux

Reset: Press for 7 seconds to restore default setting
Package Check List

JetWave 2212G Product Unit
 2x WIFI Antenna

6-pin terminal block
 Quick Installation Guide
 Din-Rail Kit
Installation
Power Input
The device supports dual DC power input. The typical power input is
12~48VDC.
Passive PoE 24/48VDC
Power the unit

Connect the power, the unit will power on .

When the unit is ready, the PWR LED turns Green.
Operating Temperature
-40 ~ 75℃
Notice
Mounting The Unit/Antenna and well Ground is Must: JetWave
2212G supports Din-Rail mounting, the mounting kit is pre-installed.
You can mount the device to the DIN Rail directly. Connect the
Ethernet cable, Antenna and Ground before power on system.
Ground is important and
MUST in field.
Warning
• The DC connecting line must conform to the safety regulations of
the country in which the device is installed.
Properly connect the device to a protective conductor.
•
Web GUI
The JetWave 2212G provides web management interface for basic and
Front Panel
advanced settings. Before configuration, please make sure your system meets
the following requirements:
 A computer coupled with 10/100/1000 Base-T(X) adapter.
 Configure the computer with a static IP address of 192.168.10.X
(X cannot be 0, 1 , or 255).

Connect JetWave 2212G to Eth 1/ Eth 2 by standard Ethernet cable. The
Eth 1 /Eth 2 LED turns Green means the link is activated.
 The Ethernet default IP is "192.168.10.1"

Open web browser (Ex: IE, Chrome, Firefox...) and enter the IP address of
2212G
the product. You will see the System Login page.
 Check User Manual for advanced settings.
 Please access to the web interface via https://, if the web browser is not
access, please check your firewall or contact your support window for
further help.
 Note: If you forget the IP Address, you can use Korenix View Utility to
search the device's IP address, the program can be found at Download page
of the Korenix website.
Grounding
Korenix View Utility
The Korenix View Utility provides you a convenient way to scan the
network and configure the connected Korenix device.
Step 1: Open the Korenix View Utility. (V1.7 or later version)
Step 2: Select the correct NIC (Network Interface Card) from the NIC list
Step 3: Click "Discovery" , and then the Nodes and its IP address can be found
and listed in the Node list.
Step 4: After you scan the network, select the
device and click " Open Web GUI" to access
the web management interface.
You can modify the IP address/Netmask directly
on the selected entry and then click " Change IP"
to change IP settings.
Support
5 Years Warranty
Each of Korenix's product line is designed, produced, and tested with high
industrial standard. Korenix warrants that the Product(s) shall be free from
defects in materials and workmanship for a period of five (5) years from the
date of delivery provided that the Product was properly installed and used.
This is warranty is voided if defects, malfunctions or failures of the warranted
Product are caused by damage resulting from force measure (such as floods, fire,
etc.), other external forces such as power disturbances, over spec power input,
or incorrect cabling; or the warranted product is misused, abused, or operated,
altered and repaired in an unauthorized or improper way.
Attention! To avoid system damage caused by sparks, please DO NOT plug in
power connector when power is on.
The product is in compliance with Directive 2002/95/EC and 2011/65/EU of the
European Parliament and of the Council of 27 January 2003 on the restriction of
the use of certain hazardous substances in electrical and electronics equipment
(RoHS Directives & RoHS 2.0)
Korenix Customer Service
KoreCARE is Korenix Technology's global service center, where our professional
staff are ready to solve your problems at any time Korenix global service
center's e-mail is KoreCARE@korenix.com.
For more information and documents download please visit our website:
http://www.korenix.com/downloads.htm
