Summary of Contents for Cayin CS-6 PH

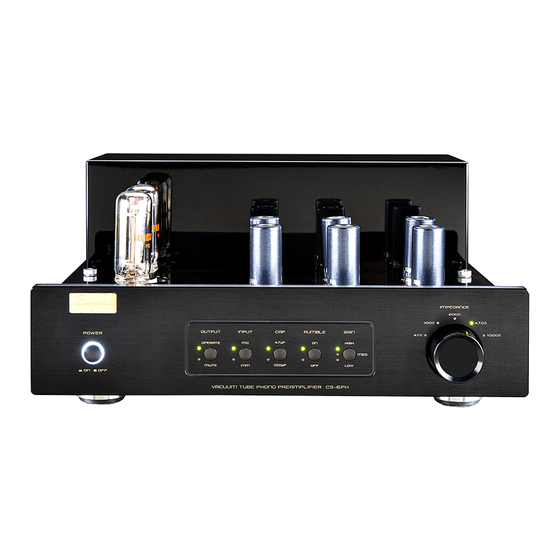

- Page 1 IMPEDANCE Ω Ω Ω OUTPUT INPUT RUMBLE GAIN POWER 1000 Ω Ω OPERATE HIGH MUTE VACUUM TUBE PHONO PREAMPLIFIER CS- C S - VACUUM TUBE PHONO PREAMPLIFIER User's Manual...
-
Page 2: Table Of Contents
Thanks for choosing CAYIN CS-6PH Vacuum Tube Phono Preamplifier and please read the user's manual carefully before installation and operation. Table of Contents ……………………… Table of Contents………………………………………………………………………………… …………………………………………………………………………………………………………2 Package Contents ……………………………………………………………………………………………………………3 Product Features …………………………………………………………………………………………………………3 Safety Precautions ………………………………………………………………………………………………………………4 Specifications Maintenance…………………………………………………………………………………………………………………5 ……………………………………………………………………………………………………………5 Warranty Service …………………………………………………………………………………………………………………6... -
Page 3: Package Contents
We are not responsible for problems and damages caused by non-original parts replacement in the amplifier. Package Contents Please carefully check the package first and then open it. Package contents include: 1. CAYIN CS-6PH 1 piece； 2. Main Fuse 2 pieces； 3. Power cord 1 piece；... -
Page 4: Product Features
Product Features ◆ Hand-made construction with the finest point-to-point wiring. ◆ Specially designed EI transformer for power supply. ◆ Electro Harmonix 6922EH/ECC88 tubes are applied for MC amplification. ◆ JJ 12AX7/ECC83 and Electro Harmonix 12AT7EH/ECC81 tubes are applied for MM amplification. ◆... -
Page 5: Specifications
◆ To reduce the risk of electric shock, do not remove the cover. ◆ No user serviceable parts inside. Refer servicing to qualified CAUTION RISK OF ELECTRIC SHOCK service personnel. DO NOT OPEN ◆ To reduce the risk of fire or electronic shock, do not expose the unit to rain or moisture. -
Page 6: Maintenance
Maintenance NOTE: ◆ Use the soft dry cloth to clean up the chassis regularly. ◆ Do not use any chemicals for cleaning. IMPEDANCE Ω Ω Ω OUTPUT INPUT RUMBLE GAIN POWER 1000 Ω Ω OPERATE HIGH MUTE VACUUM TUBE PHONO PREAMPLIFIER CS- Warranty Service 1.This product is warranted for a period of twelve months beginning from the date of purchase. -
Page 7: Precautions
Precautions Connected to the power socket INPUT OUTPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN VACUUM TUBE PHONO PREAMPLIFIER ZHUHAI SPARK ELECTRONIC EQUIPMENT CO., L TD. Connected to AC Input Connection of power cord: Connect the speaker cables and signal cable first and then insert the power cord into the power socket. -
Page 8: Front Panel
MC cartridge. ③.OUTPUT：Indicate the operation state of the Cayin CS-6PH has memories and it will default amplifier. Power LED and operate LED are on last operation state when turning on. when it works normally. Mute LED is on when it is... -
Page 9: Rear Panel
Rear Panel OUTPUT INPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN VACUUM TUBE PHONO PREAMPLIFIER ZHUHAI SPARK ELECTRONIC EQUIPMENT CO., L TD. ① ： Ground Connect to the GND terminals of turntable. ② ： MC input Connect to MC input source. ③. -
Page 10: Top Panel
Top Panel 6922 6922 ① V7、V8:RCA 22DE4 ② V3、V6: Electro-Harmonix 12AT7EH/ECC81 ③ V2、V5:JJ 12AX7/ECC83 ④ V1、V4: Electro-Harmonix 6922EH/ECC88 NOTE ◆ Be careful of the high temperature of the tubes during operation. ◆ Please replace the power tubes after switch off in 20 minutes, and follow the suggetion to unplug the inset the tubes. -
Page 11: Installation
Installation Carefully read and follow the manual for installation: ◆ Do not place the machine near heat sources such as radiators, heat registers or other products that produce heat. ◆ In order to avoid being overheated please keep the unit's ventilation open. ◆... -
Page 12: Audio Connection
Audio Connection Connection method of CAYIN CS-6PH with other audio equipments Take pictures below for your reference. OUTPUT BALANCE LINE LINE LINE BALANCE 220 50 OUTPUT INPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN VACUUM TUBE PHONO PREAMPLIFIER FUSE T... -
Page 13: Turning On
Turning On Before turning on the amplifier please make sure all connections are right and power supply is stable. • Turn on the amplifier, the power indicator will be on and the working indicator will keep flickering. • The working indicator will be on after 60 seconds. It means that the amplifier is working normally. -
Page 14: Troubleshooting
Troubleshooting Please follow the instruction in the manual in order to keep the amplifier work in its best state. If wrongly operated and you thought that would be troubles please check according to following tip to look for the exact reason.
