All manuals and user guides at all-guides.com
www.mitox.co.uk
Operator's Manual
user manual, maintenance instructions and spare parts

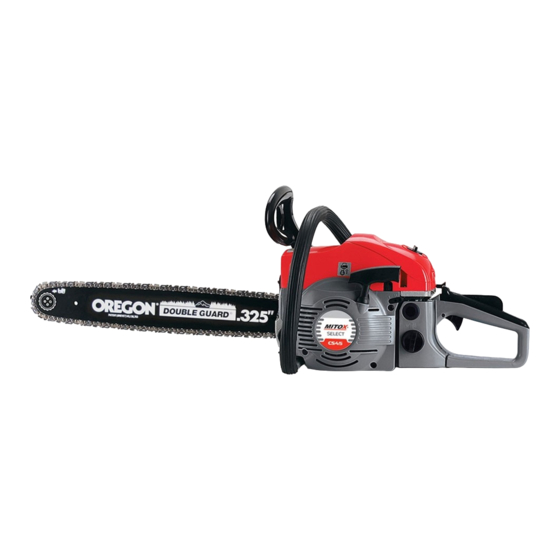

CS45 / CS50 SELECT Chainsaw
Read this manual carefully before operating the machine
Original Instructions Version July 16
CS45-50_130716

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS45 SELECT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mitox CS45 SELECT

Summary of Contents for Mitox CS45 SELECT

  • Page 1 All manuals and user guides at all-guides.com www.mitox.co.uk Operator’s Manual user manual, maintenance instructions and spare parts CS45 / CS50 SELECT Chainsaw Read this manual carefully before operating the machine Original Instructions Version July 16 CS45-50_130716...

  • Page 2: Component Location

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Component Location Chain brake Starter handle Air cleaner cover Choke knob Throttle interlock Right handle Throttle lever Rear handle Engine switch Fuel tank Oil tank Front handle Saw chain Guide Bar PRODUCT DESCRIPTION This Chainsaw is a 2 stroke fast running power tool and is designed to be used in a domestic...

  • Page 3: Warnings In The Manual

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Warnings in the Manual This mark indicates instructions which must be followed in order to prevent accidents which could lead to serious bodily injury or death. IMPORTANT This mark indicates instructions which must be followed or it leads to mechanical failure, breakdown, or damage.

  • Page 4: Taking Care Of Warning Labels

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Directive 2000-14/CE. Guaranteed noise levels Danger: Risk of intoxication Danger: Risk of fire or explosion Hot surface, risk of burn Taking Care of Warning Labels Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read.

  • Page 5: Safety Precautions

    Keep this manual handy so that you may refer to it later whenever any questions arise. Also note that you are able to contact your authorised MITOX® dealer for assistance. Always include this manual when selling, lending, or otherwise transferring the ownership of this product.
  • Page 6 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw This Chainsaw is equipped with extremely an extremely sharp blade, always wear sturdy gloves when handling the blades and fit the safety guards when not in use. When using this Chainsaw for the first time, take it to a wide, clear, open space, start the engine, and practice handling the Chainsaw until you are sure that you will be able to handle it properly in actual operation.

  • Page 7: Safety And Operation

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Work Clothing & Safety Equipment When using this product, you should wear the correct Personal Protective Equipment. • Helmet • Safety goggles / face protector • Ear protection •...

  • Page 8: Before Starting The Engine

    If this cannot be achieved, take your machine to your authorised MITOX® dealer for adjustment. Avoid Noise Problems...
  • Page 9 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw • Maintain full engine speed when cutting. • Never allow other persons to come within the work area as doing so might expose them to danger. • If a branch or other object gets caught in the blades during operation, always turn off the engine before removing the object.
  • Page 10 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw In the Box A standard saw unit package contains the items as illustrated. Power unit Saw chain Guide bar Bar protector Plug wrench Spike and mounting screws, dependent on model Not pictured Owner’s manual Original Instructions Version July 16...

  • Page 11: Safe Handling Of Fuel

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Safe Handling of Fuel The engine of the Chainsaw is designed to run on a two stroke oil/fuel mixture. This fuel is highly flammable; never store cans of fuel or refill the fuel tank in any place where there is a source of heat or fire, which might ignite the fuel.
  • Page 12 NOTE Due to increased Ethanol content in petrol we recommend the use of B3C Ethanol Shield 2-Stroke Oil, or Ethanol Shield Fuel Stabiliser to protect your MITOX® engine against the harmful effects of Ethanol. Visit www.b3cfuel.co.uk for more information. IMPORTANT...

  • Page 13: Chain Oil

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw When storing the Chainsaw for a period of more than one month, empty the fuel tank and run the engine to empty the carburettor of fuel. Two-stroke fuel can cause deterioration of rubber and/or plastic components during prolonged storage.

  • Page 14: Installing The Guide Bar And Chain

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Installing the Guide Bar and Chain Open the box and install the guide bar and the saw chain on the power unit as follows: The saw chain has very sharp edges. Use thick protective gloves for safety. Pull the chain brake towards the front handle to check that the chain brake is not on.

  • Page 15: Chain Brake

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Chain Brake This machine is equipped with an automatic brake to stop the saw chain rotation upon the occurrence of kickback during saw cutting. The brake is automatically operated by inertial force, which acts on the weight fitted inside the front guard.

  • Page 16: Kickback Safety Precautions

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Kickback Safety Precautions Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Top contact in some cases may cause a lightning fast reverse reaction, kicking the guide bar up and back towards the operator.

  • Page 17: Operating The Engine

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Operating the Engine Fill fuel (2) and chain oil (1) tanks respectively, and tighten the caps securely. Set the switch (3) to “I” position. Press the primer button (4) 6 times. Pull out the choke knob (5).

  • Page 18: Stopping The Engine

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Hot Engine Start Set the switch (3) to “I” position. Pull out the choke knob (5), then push the choke knob back in, this will set the choke to the hot start position.

  • Page 19: Checking The Oil Supply

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Checking the Oil Supply After starting the engine, run the chain at medium speed and see if chain oil is sprayed as shown in the figure. Care and Maintenance of Your Chainsaw •...

  • Page 20: Maintenance After Each Use

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Maintenance IMPORTANT • After every use, check that all nuts, bolts and screws are securely fastened and tighten if necessary. • In the event of an accident, breakdown or blockage, ensure the engine is turned off before any work is carried out to rectify this.

  • Page 21: Oiling Port

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Maintenance After Each Use Oiling port Dismount the guide bar and check the oiling port (1) for clogging. Guide bar When the guide bar is dismounted, remove sawdust from the bar groove and the oiling port. Grease the nose sprocket with a sprocket grease gun (Oregon part number 21939) Guide bar groove Oil hole...

  • Page 22: Periodical Service Points

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Periodical Service Points Cylinder Fins Dust clogging between the cylinder fins will cause overheating of the engine. Periodically check and clean the cylinder fins after removing the cylinder cover. When installing the cylinder cover, make sure that switch wires and grommets are fitted correctly.
  • Page 23 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Adjusting Oil Flow Rate Never fill the oil reservoir or adjust the oiler with the engine running. An increase in bar oil flow rate will speed oil consumption, requiring more frequent checks on the oil reservoir.

  • Page 24: Saw Chain Sharpening

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Saw Chain Sharpening The chain needs to be sharpened when: Sawdust becomes powder-like. You need extra force to saw with. The cut path does not go straight. Vibration increases. Fuel consumption increases.

  • Page 25: Adjusting The Carburettor

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Adjusting the Carburettor The carburettor has been factory adjusted, but may require fine tuning due to a change in operating conditions. Before adjusting the carburettor, make sure that the provided air/fuel filters are clean and the fuel properly mixed.

  • Page 26: Service Schedule

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Service Schedule Every Every Every Before Component Procedure Note Hours Hours Hours Fuel Leaks / Fuel Wipe away • Spillage Fuel Tank / Fuel Inspect / Clean Replace if •...
  • Page 27 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Specifications: CS45 Power unit: Displacement (cm3) …………………………………………………………………………45.0 Fuel: …………………………………………………..Mixture (petrol 40: two-stroke oil 1) Fuel tank capacity (ml)…………………………………………………………….……….550 Chain oil:……………………………………………………………………..Anti-fling chain oil Oil tank capacity (ml)……….………………………………………………….…………..260 Carburettor:………………………………………………..…..Diaphragm type (Walbro WT) Ignition system:………………………………………………………………...Electronic (CDI) Spark plug:……………………………………………………………………….,NGK:BPRM7A Chain lubrication system:….….…………………………………………………Automatic pump...
  • Page 28 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Specifications: CS50 Power unit: Displacement (cm3) ………………………………………………………………………...49.3 Fuel:………………………………………………………….Mixture (petrol 40 : two-stroke oil 1) Fuel tank capacity (ml)……………………………………………………………….……….550 Chain oil:…………………………………………………………………………Anti-fling chain oil tank capacity (ml)…………………………………………….………….…………..260 Carburettor:…………………………………………………………..Diaphragm type (Walbro WT) Ignition system:…………………………………………………………………...Electronic (CDI) Spark plug:……………………………………………………………………….,NGK:BPRM7A Chain lubrication system:….….…………………………………………………Automatic pump...
  • Page 29 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw Notes Original Instructions Version July 16 CS45-50_130716...
  • Page 30 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw CS45 Select Base Unit Original Instructions Version July 16 CS45-50_130716...
  • Page 31 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw CS45 Select Base Unit MIYD45-4.02.00-1 GUIDE FLOW COVER PART NUMBER DESCRIPTION MIYD45-4.02.00-00 RECOIL STARTER ASSEMBLY MIYD45-4.04.00-00 CHAIN BRAKE ASSY MIGB/T845 ST4.8X14 TAPPING SCREW ST4.8X14 MIYD38-3.04.00-16 SCREW M5X40 MIGB/T96 M5 WASHER M5 MIYD38-3.04.00-13...
  • Page 32 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw CS45 Select Engine Unit Original Instructions Version July 16 CS45-50_130716...
  • Page 33 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw CS45 Select Engine Unit MIYD45.01.13-1 CLUTCH DRUM (LESS BEARING AND PART NUMBER DESCRIPTION MIYD45.01.00-26 SPROCKET RIM MIYD45.01.02-1 CYLINDER MIYD45.01.00.06-00 WORM MIGB/T6170 M5 NUT M5 MIYD45.01.00-15 COVER PLATE MIGB/T93 M5 SPRING WASHER M5 MIYD45.01.00.09-00...
  • Page 34 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw CS50 Select Base Unit Original Instructions Version July 16 CS45-50_130716...
  • Page 35 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw CS50 Select Base Unit MIYD45-4.00.01-3 SIDE HEAT ISOLATOR PART NUMBER DESCRIPTION MIA45.0400.0001 GUIDE FLOW PLATE MIYD50.04.00-00 CHAIN BRAKE ASSY MIA45.0410.0000 RECOIL STARTER ASSEMBLY MIA38.0312.0015 SCREW M5X40 MIGB/T845 ST4.8X14 TAPPING SCREW ST4.8X14 MIA38.0312.0012 SLEEVE...
  • Page 36 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw CS50 Select Engine Unit Original Instructions Version July 16 CS45-50_130716...
  • Page 37 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw CS50 Select Engine Unit PART NUMBER DESCRIPTION MIA45.0101.0030 SPROCKET RIM MIYD45.01.00.06-00 WORM MIA50.0101.0002 CYLINDER MIYD45.01.00-15 COVER PLATE MIGB/T6170 M5 NUT M5 MIA45.0101.1200 OIL SEAL 15X28X4.5 MIGB/T93 M5 SPRING WASHER M5 MIGB/T276 6202D BEARING 6202 GRADE D 15X35X11 MIGB/T97.1 M5...

  • Page 38: Ec Declaration Of Conformity

    All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw EC Declaration of Conformity We Mitox (Rochford Garden Machinery Ltd) - BA9 9RS (importer) declare that the product(s): Designation: Chainsaw for forest service with petrol engine Model(s): Mitox CS45 Select...
  • Page 39 All manuals and user guides at all-guides.com CS45 / CS50 SELECT Chainsaw EC Declaration of Conformity We Mitox (Rochford Garden Machinery Ltd) - BA9 9RS (importer) declare that the product(s): Designation: Chainsaw for forest service with petrol engine Model(s): Mitox CS50 Select...
  • Page 40 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
