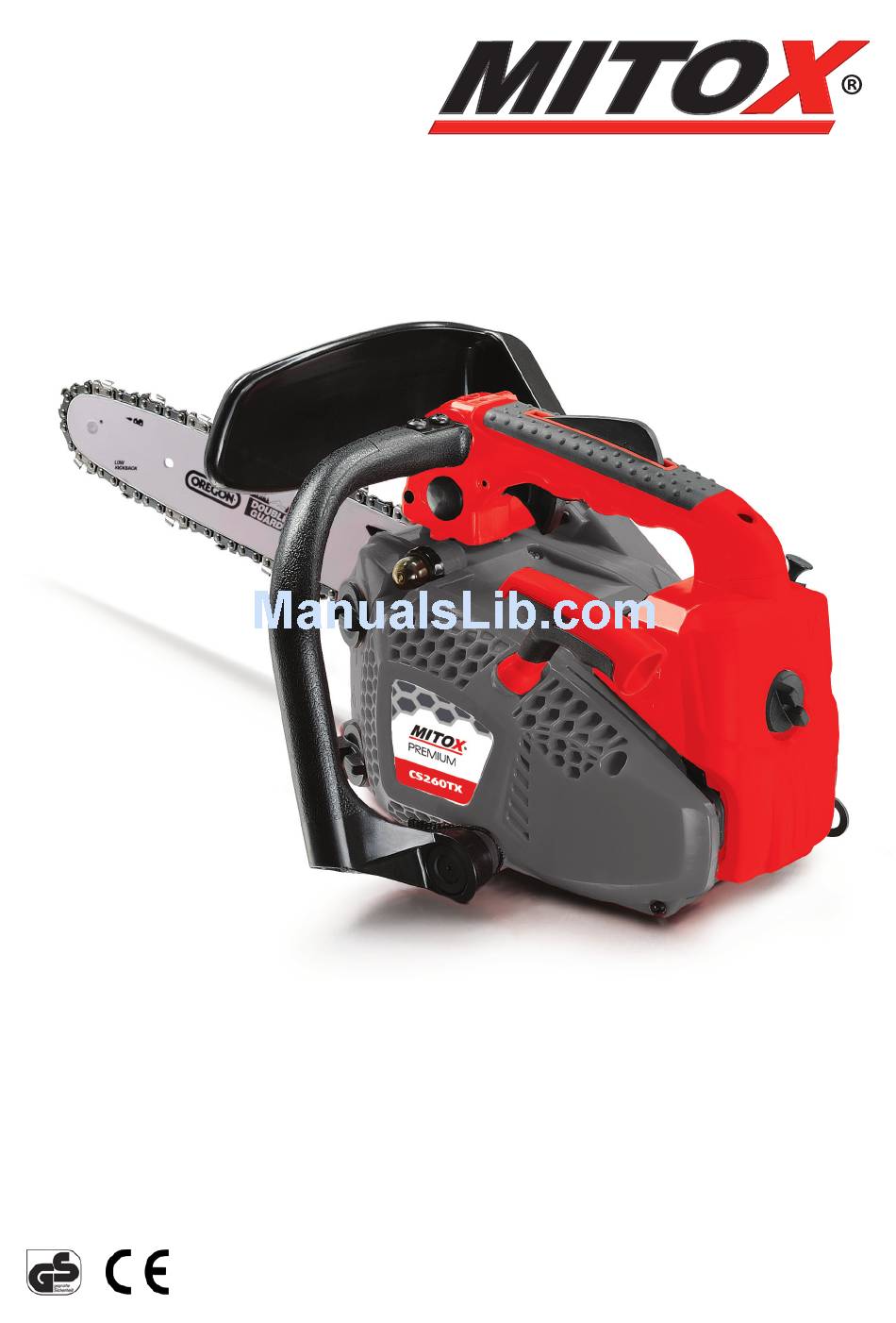

- Page 1 Operator’s Manual user manual, maintenance instructions and spare parts CS260TX PREMIUM Chainsaw Read this manual carefully before operating the machine Original Instructions Version November 16 CS260TX_141116...
-
Page 2: Component Location
CS260TX PREMIUM Chainsaw Component Location 13. Fuel tank 7. Rear Handle 1. Saw chain 14. Guide Bar Scabbard 8. Air Filter Cover 2. Guide bar 15. Clutch Cover 9. Lock Nut 3. Front Hand Guard 16. Choke Knob 10. Starter Handle 4. -
Page 3: Warnings In The Manual
CS260TX PREMIUM Chainsaw Warnings in the Manual This mark indicates instructions which must be followed in order to prevent accidents which could lead to serious bodily injury or death. IMPORTANT This mark indicates instructions which must be followed or it leads to mechanical failure, breakdown, or damage. -
Page 4: Taking Care Of Warning Labels
CS260TX PREMIUM Chainsaw Directive 2000-14/CE. Guaranteed noise levels Danger: Risk of intoxication Danger: Risk of fire or explosion This Chainsaw is for trained tree service operators only Hot surface, risk of burn Taking Care of Warning Labels Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read. - Page 5 CS260TX PREMIUM Chainsaw CHOKE OPERATION <RUN> Starting mode when the engine is hot. Position: Upper-right of the air cleaner cover <START> Starting mode when the engine is cold. Position: Upper-right of the air cleaner cover HIGH-SPEED ADJUSTMENT SCREW Position: Left side, screw under “H” stamp SLOW-SPEED ADJUSTMENT SCREW Position: Left side, screw under “L”...
- Page 6 CS260TX PREMIUM Chainsaw This Chainsaw is equipped with extremely sharp blades, always wear sturdy gloves when handling the blades and fit the safety guards when not in use. When using this Chainsaw for the first time, take it to a wide, clear, open space, start the engine, and practice handling the Chainsaw until you are sure that you will be able to handle it properly in actual operation.
-
Page 7: Safety And Operation
CS260TX PREMIUM Chainsaw Work Clothing & Safety Equipment When using this product, you should wear the correct Personal Protective Equipment. • Helmet • Safety goggles / face protector • Ear protection • Thick work gloves • Non-slip, steel toe capped work boots •... -
Page 8: Before Starting The Engine
If this cannot be achieved, take your machine to your authorised MITOX® dealer for adjustment. Avoid Noise Problems... - Page 9 CS260TX PREMIUM Chainsaw • Maintain full engine speed when cutting. • Never allow other persons to come within the work area as doing so might expose them to danger. • If a branch or other object gets caught in the blades during operation, always turn off the engine before removing the object.
- Page 10 CS260TX PREMIUM Chainsaw In the Box A standard saw unit package contains the items as illustrated Power unit Saw chain Guide bar Bar protector Plug wrench File Not pictured Spike and mounting screws, dependent on model Owner’s manual Original Instructions Version November 16...
-
Page 11: Safe Handling Of Fuel
CS260TX PREMIUM Chainsaw Safe Handling of Fuel The engine of the Chainsaw is designed to run on a two stroke oil/fuel mixture. This fuel is highly flammable; never store cans of fuel or refill the fuel tank in any place where there is a source of heat or fire, which might ignite the fuel. - Page 12 NOTE Due to increased Ethanol content in petrol we recommend the use of B3C Ethanol Shield 2-Stroke Oil, or Ethanol Shield Fuel Stabiliser to protect your MITOX® engine against the harmful effects of Ethanol. Visit www.b3cfuel.co.uk for more information. IMPORTANT...
-
Page 13: Chain Oil
CS260TX PREMIUM Chainsaw When storing the Chainsaw for a period of more than one month, empty the fuel tank and run the engine to empty the carburettor of fuel. Two-stroke fuel can cause deterioration of rubber and/or plastic components during prolonged storage. -
Page 14: Installing The Guide Bar And Chain
CS260TX PREMIUM Chainsaw Installing the Guide Bar and Chain Open the box and install the guide bar and the saw chain on the power unit as follows: The saw chain has very sharp edges. Use thick protective gloves for safety. - Page 15 CS260TX PREMIUM Chainsaw Adjust the position of the tensioner nail (3) on the chain cover and insert into the lower hole of the guide bar. Fasten the chain cover nut (fig 1.1) finger tight and while holding up the tip of the bar, adjust the chain tension by turning the tensioner screw (4) until the chain does not sag from the underside of the guide bar (Figure 5).
-
Page 16: Chain Brake
CS260TX PREMIUM Chainsaw Chain Brake This machine is equipped with an automatic brake to stop the saw chain rotation upon the occurrence of kickback during saw cutting. The brake is automatically operated by inertial force, which acts on the weight fitted inside the front guard. -
Page 17: Kickback Safety Precautions
CS260TX PREMIUM Chainsaw Kickback Safety Precautions Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Top contact in some cases may cause a lightning fast reverse reaction, kicking the guide bar up and back towards the operator. -
Page 18: Operating The Engine
CS260TX PREMIUM Chainsaw Operating the Engine Fill fuel (4) and chain oil (5) tanks respectively, and tighten the caps securely. Set the switch (1) to “I” position. Press the primer button (3) 6 times. Pull out the choke knob (2). The choke will close and the throttle will be set in the starting position. -
Page 19: Stopping The Engine
CS260TX PREMIUM Chainsaw Hot Engine Start Set the switch (1) to “I” position. Pull out the choke knob (2), then push the choke knob back in, this will set the choke to the hot start position. Apply the chain brake by pushing the chain brake forwards. -
Page 20: Checking The Oil Supply
CS260TX PREMIUM Chainsaw Checking the Oil Supply After starting the engine, run the chain at medium speed and see if chain oil is sprayed as shown in the figure below (1). The chain oil flow can be changed by inserting a screwdriver in the hole on the bottom of the clutch side. -
Page 21: Maintenance After Each Use
CS260TX PREMIUM Chainsaw Maintenance IMPORTANT • After every use, check that all nuts, bolts and screws are securely fastened and tighten if necessary. • In the event of an accident, breakdown or blockage, ensure the engine is turned off before any work is carried out to rectify this. - Page 22 CS260TX PREMIUM Chainsaw Maintenance After Each Use Oiling port Dismount the guide bar and check the oiling port (1) for clogging. Guide bar When the guide bar is dismounted, remove sawdust from the bar groove and the oiling port. Grease the nose sprocket with a sprocket grease gun (Oregon part number 21939)
-
Page 23: Periodical Service Points
CS260TX PREMIUM Chainsaw Periodical Service Points Cylinder Fins Dust clogging between the cylinder fins will cause overheating of the engine. Periodically check and clean the cylinder fins after removing the cylinder cover. When installing the cylinder cover, make sure the switch wires and grommets are fitted correctly. - Page 24 CS260TX PREMIUM Chainsaw Adjusting Oil Flow Rate Never fill the oil reservoir or adjust the oiler with the engine running. An increase in bar oil flow rate will speed oil consumption, requiring more frequent checks on the oil reservoir. To ensure sufficient lubrication, it may be necessary to check the oil level more frequently than at fuel tank refills.
-
Page 25: Saw Chain Sharpening
CS260TX PREMIUM Chainsaw Saw Chain Sharpening The chain needs to be sharpened when: Sawdust becomes powder-like. You need extra force to saw with. The cut path does not go straight. Vibration increases. Fuel consumption increases. Be sure to wear safety gloves. -
Page 26: Adjusting The Carburettor
A 2-cycle engine relies on the fuel mixture to cool the engine; a lean engine will run fast but can overheat and may cause severe damage to the engine.It is recommended carburettor adjustments are carried out by authorised Mitox dealers only. Original Instructions Version November 16... -
Page 27: Working With Tree Service Chain-Saws From Rope And Harness
CS260TX PREMIUM Chainsaw Working with tree service chain-saws from rope and harness Overview This chapter sets out working practices aimed at reducing the risk of injury from tree service chain- saws when working at height from a rope and harness. While it may form the basis of guidance and training literature, it should not be regarded as a substitute for formal training. - Page 28 CS260TX PREMIUM Chainsaw Figure B.1 — Example of attachment of tree service chain-saw to operator’s harness The ability to directly attach the saw to the harness reduces the risk of damage to equipment when moving around the tree. Always switch the saw off when it is directly attached to the harness.
- Page 29 CS260TX PREMIUM Chainsaw Securing the work position for two-handed use In order to allow the saw to be held with both hands, as a general rule operators should aim for a secure work position in which they operate the saw at Hip level, when cutting horizontal sections, and Solar plexus level, when cutting vertical sections.
- Page 30 CS260TX PREMIUM Chainsaw One-handed use of the chain-saw Operators should not use tree service chain- saws one-handed when the work position is unstable or in preference to a handsaw when cutting small diameter wood at the branch tips. Tree service chain-saws should only be used...
-
Page 31: Service Schedule
CS260TX PREMIUM Chainsaw Service Schedule Every Every Every Before Component Procedure Note Hours Hours Hours Fuel Leaks / Fuel Wipe Out • Spillage Fuel Tank / Fuel Inspect / Clean Replace if • • Filter Neccessary Idle Adjusting See Adjusting Adjust if •... -
Page 32: Specifications
CS260TX PREMIUM Chainsaw Specifications Power unit Displacement …………………………………………………………………………..25.4cc Maximum engine power………………………………………………………………...…0.9kW Fuel……………………………………………….Mixture (Unleaded Petrol 40 : two-stroke oil 1) Fuel tank capacity……………………………………………………………………..…200ml Chain oil..………………..…………………………………………...Anti-fling Chain Oil Oil tank capacity…………………………………………………………………………...140ml Carburettor……………………………………………………………………… Diaphragm type Fuel consumption at maximum engine power…………………………………………560g/kw·h Idling speed…………………………………………………………………………... 3100r/min Maximum speed with cutting attachment……………………………………………... - Page 33 CS260TX PREMIUM Chainsaw Specifications Cutting gear Guide Bar Type......................Sprocket nose Size ..........................10" / 12" Cutting length..................220mm (10”) / 270mm (12") Saw chain Type..........................Oregon 91P Pitch……………………………………………………………………………………..0.375in Gauge………………………………………………………………………………….. 0.050in Original Instructions Version November 16 CS260TX_141116...
- Page 34 CS260TX PREMIUM Chainsaw Original Instructions Version November 16 CS260TX_141116...
-
Page 35: Parts List
CS260TX PREMIUM Chainsaw PARTS LIST ID No. PART NUMBER DESCRIPTION ID No. PART NUMBER DESCRIPTION MIYD25.01.00.00-00 SHORT MOTOR MIA25.0100.0006 PLUG MIA25.0102.0000 CRANKCASE MIA38.0306.0500 SWITCH - ON/OFF MIGB/T276 6001 BEARING 6001D - 12X28X8 MIA25.0600.0100 COVER - REAR HANDLE MIA25.0103.0300 OIL SEAL - 12X28X6 MIA25.0100.0016... - Page 36 CS260TX PREMIUM Chainsaw PARTS LIST ID No. PART NUMBER DESCRIPTION ID No. PART NUMBER DESCRIPTION MIA25.0112.0006 TENSION BLOCK MIA45.0101.0024 FELLING DOG MIA25.0112.0008 PLATE MIA25.0611.0001 COVER - FRONT MIA38.0312.0010 BRAKE CONTROL ROD MIGB/T845 ST4.8X13 TAPPING SCREW - ST4.8X13 MIA45.0112.0009 SPRING - BRAKE MIGB/T845 ST4.2X14...
-
Page 37: Ec Declaration Of Conformity
CS260TX PREMIUM Chainsaw EC Declaration of Conformity We Mitox (Rochford Garden Machinery Ltd) - BA9 9RS (importer) declare that the product(s): Designation: Chainsaw for tree/forest service with petrol engine Model(s): Mitox CS260TX Premium Type/Serial No: As per rating label on machine... - Page 38 CS260TX PREMIUM Chainsaw Notes Original Instructions Version November 16 CS260TX_141116...
- Page 39 CS260TX PREMIUM Chainsaw Notes Original Instructions Version November 16 CS260TX_141116...
- Page 40 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
