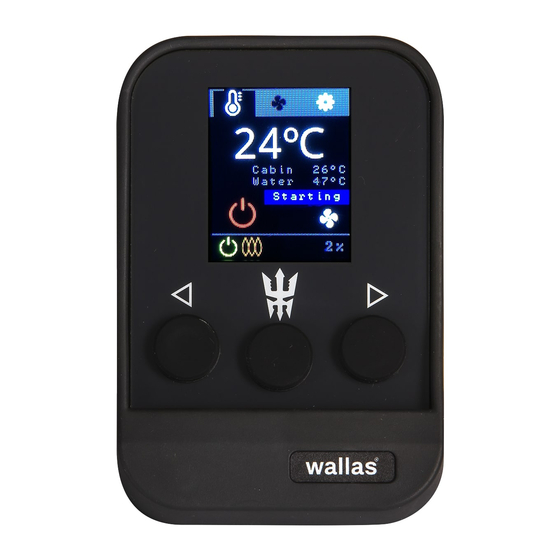

wallas 3008 Operation Manual

OPERATION GUIDE
3 0 0 8 A D V A N C E D C O N T R O L P A N E L
Please Refer to Manual for Full Operation and Maintenance Instructions at wallas.com
1
2
Select
Button
5
Left Arrow
Right Arrow
Move cursor
left or up Move cursor
right or down
SET OPERATION MODE
Combi Thermostatic Mode: Set a target cabin tempe-
rature (C°/F°) for heating.
Ventilation Mode: Blow fresh air without heating.
Prior to starting the heater, choose mode by using
the Arrow Buttons (left or right) to move the
orange selection square to the Main Menu Bar,
press Select Button to activate the Main Menu Bar,
use Arrow Buttons to choose the desired mode and
press the Select Button to select. To switch
between modes, turn the heater off and start in the
desired mode.
V i k i n g C o m b i
Digital Panel Legend
Main Menu Bar
1
3
Combi Thermostatic Mode
Ventilation Mode
4 4
Settings
6
7
Target Temperature / Blower
2
Speed
Room / Water Temperature
3
Heater Status
4
Start/Stop Icon
5
Air Boost Icon
6
Info Bar
7
Power On/Off
Combustion
Info
Lock
Heater power %
IGNITION
To start, use the Arrow Buttons
(left or right) to move the orange
selection square to the white
Start/Stop Icon and press the
Select Button. Confirm the
selection by holding the Select
Button down for 3 seconds (safety
feature). White icon turns orange.
Temp Sensor
Starting will appear on the screen.
Device Info
The light orange combustion light
Device Stats
will light up when the burner flame
Clear Lock
has been ignited and the
combustion has stabilized (in about
Temp Unit (C°/F°)
5 min). Heater will be fully
Connections
operational about 10 min later.
Altitude
CABIN TEMPERATURE CONTROL
In Combi Thermostatic Mode,
move the selection square to the
Target Temperature and press the
Select Button. Press Arrow
Buttons (left or right) to set the
desired target temperature.
WATER TEMPERATURE
Viking Combi is primarily an air heater - water is heated simulta-
neously as a convenient by-product. Power distribution is approxi-
mately 50-90 % for air heating and 10-40 % for water heating.
Water temperature cannot be controlled separately.
(IN THERMOSTATIC MODE)
