NOTE: It is important that all
areas where the rack system
mounts are clean and free of
debris prior to installing.
TOOLS REQUIRED
•
1/2" wrench or socket
•
Scissors or cutting tool
TOOLS PROVIDED
•
3/16" Allen key
•
1/8" Allen key
C
D
I
2209 Kellen Gross Dr., Yankton SD 57078 • 877-878-9336
E
F
G
J
K

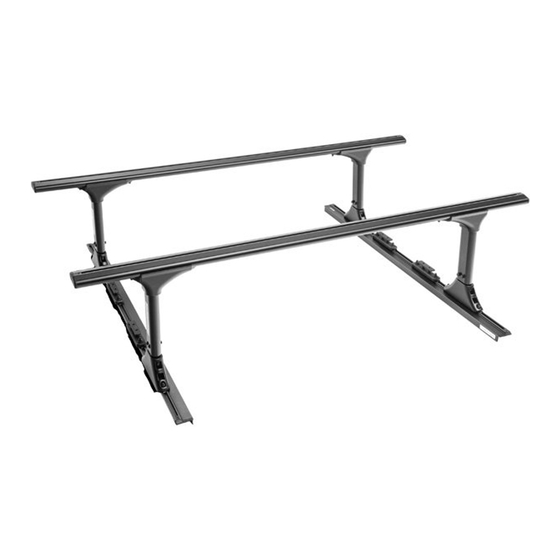

ELEVATE FS AND CS RACK SYSTEMS
OWNER'S MANUAL
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 877-878-9336, Mon - Fri, 8:00 a.m. - 5:00 p.m. CT
B
A
H

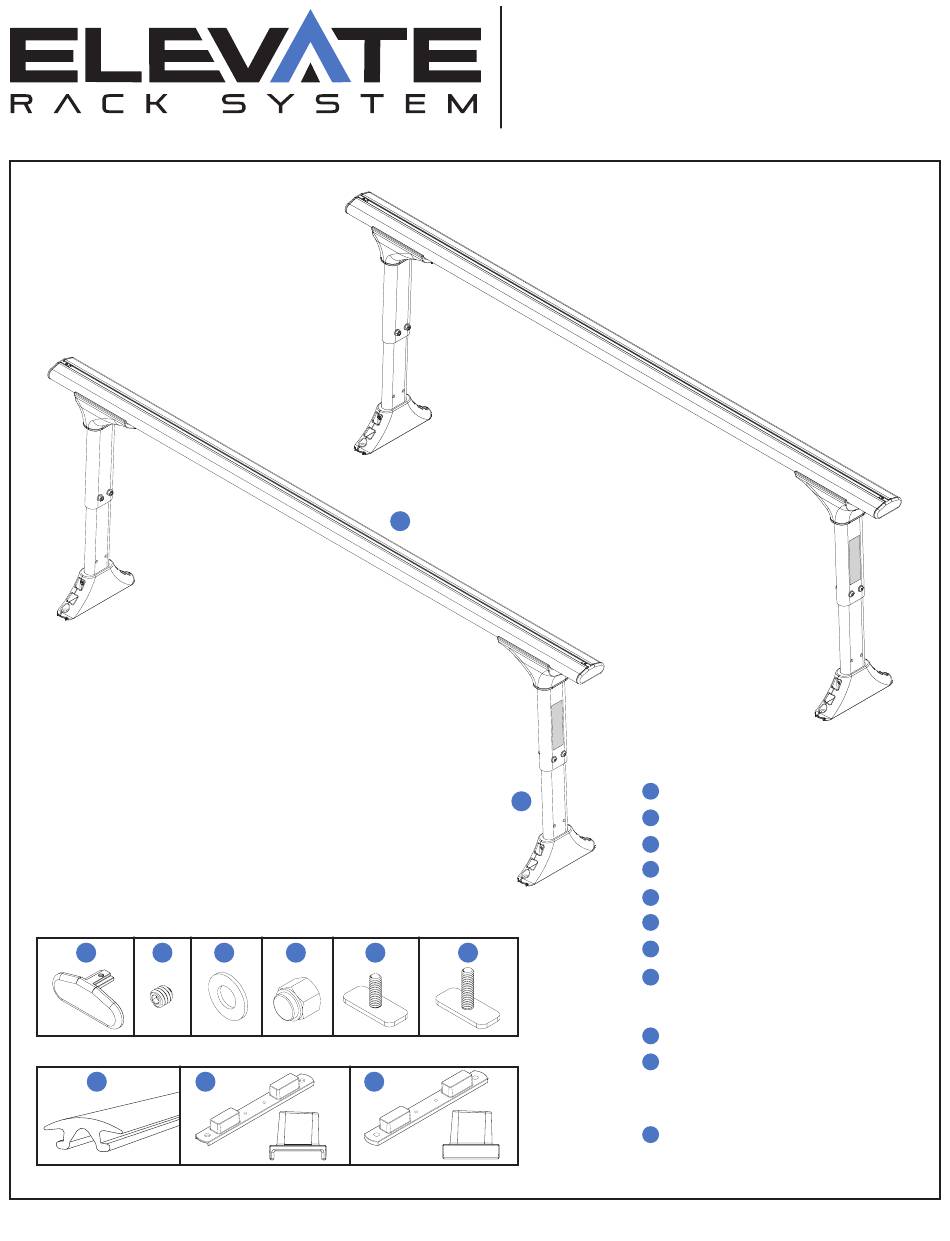

PARTS INCLUDED
IN YOUR KIT
4x Elevate upright assembly
A
2x Crossbars
B
4x Crossbar end plugs
C
D
8x Set screws 1/4"-20 x .25"
16x 5/16" washers
E
16x Cap nuts 5/16"-18
F
16x T-bolts (1" bolt)
G
8x T-bolts (1.25" bolt)
H
Only used when installing on
flat top rail system
2x Channel guards
I
4x Support base inserts
J
Standard Support base insert.
Used when installed with raised
t-slot rails.
4x Support base inserts
K
Flush mount Support base insert.
Used on flush mount rails/covers.
P/N 1118569 Rev. A Rev. 1-7-22
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ELEVATE CS RACK SYSTEMS
Summary of Contents for ELEVATE CS RACK SYSTEMS
- Page 1 ELEVATE FS AND CS RACK SYSTEMS OWNER’S MANUAL Any damaged or missing parts? Parts will be shipped to you directly. Call 877-878-9336, Mon - Fri, 8:00 a.m. - 5:00 p.m. CT NOTE: It is important that all areas where the rack system mounts are clean and free of debris prior to installing.
- Page 2 Install upright assemblies (A) onto t-slot compatible rails. Reinstall the rail end plugs. Install washers (E) and cap nuts Remove t-slot compatible rail end plug. Slide two T-bolts (F) for the upright assemblies (A). Finger tighten for now. (G) into each adapter rail. Space the T-bolts (G) so they align with the holes on the base on the upright assembly (A).
- Page 3 Insert two T-bolts (G) into the bottom t-slot of each end of the crossbar (B). Repeat on the second crossbar. Bottom The serial number for the rack is located on top of the crossbar. For future reference write Insert into the serial number here.
- Page 4 Loosen ELEVATE RACK SYSTEM GUIDELINES Review all instructions, guidelines, and warranty information before installing or using the Elevate Rack System. Contact your dealer with any questions regarding proper operations of the Elevate Rack System. Check state and local laws for compliance with oversized loads.
-
Page 5: Limited Lifetime Warranty
It is the responsibility of the owner/user to read this manual and comply with the operating procedures. The owner/user is also responsible for inspecting the Elevate Rack System, and for having parts repaired or replaced when worn or damaged. Failure to follow safety instructions and warning labels could result in failure of your Elevate Rack System and/or personal injury.
