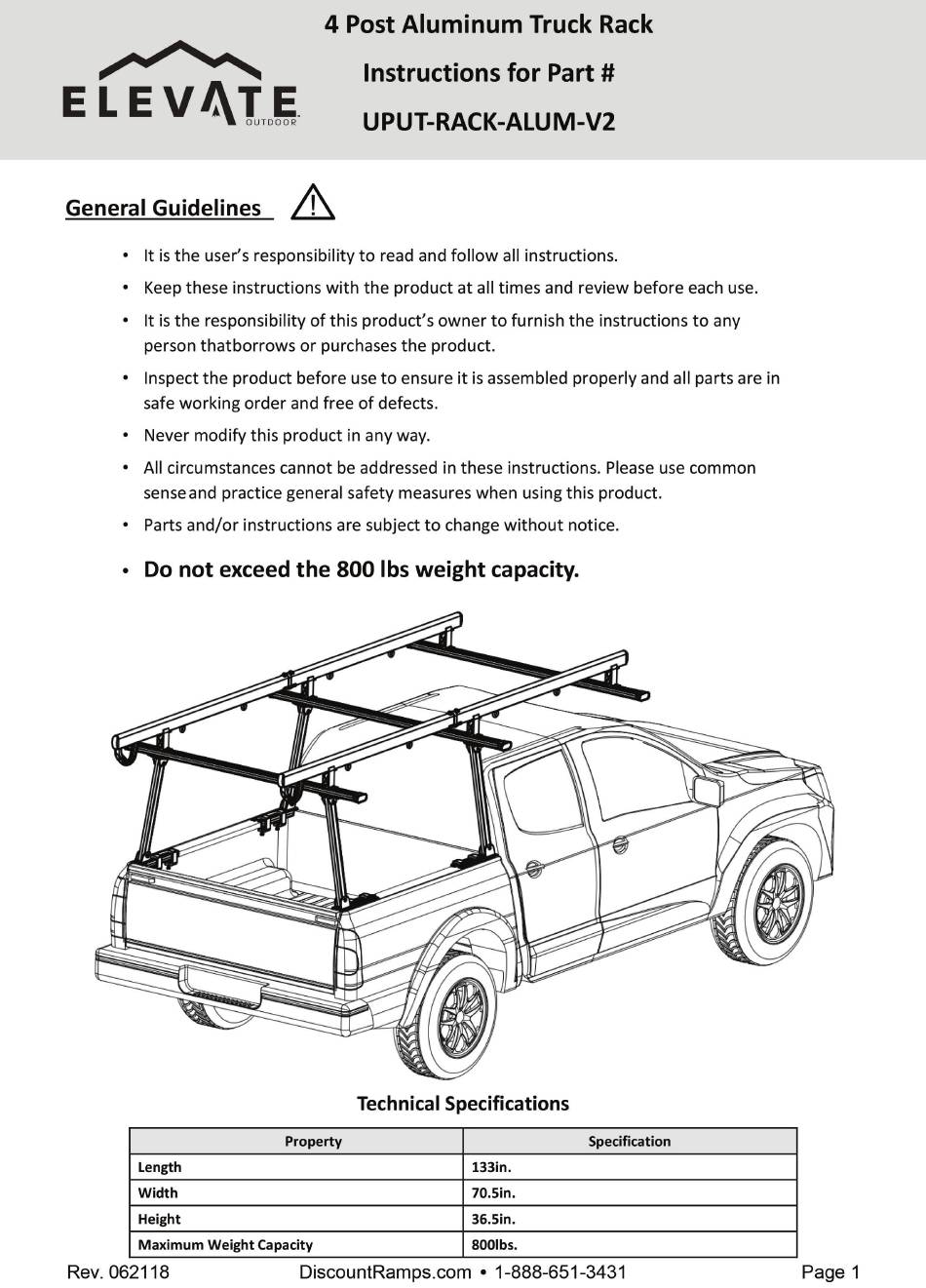

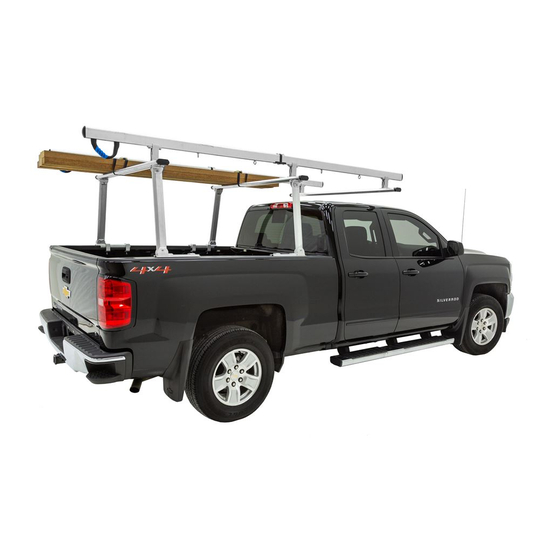

Summary of Contents for ELEVATE UPUT-RACK-ALUM-V2
- Page 2 PARTS LIST Prior to assembly and installation, make sure all parts are present, intact and undamaged. If you discover missing and/or damaged parts, please contact our customer service using the information on page 1. Item# Description Picture Quantity Item# Description Picture Quantity Crossbar...
- Page 3 Tools Required: 17mm Wrench (1 pc.) 6mm Allen Wrench (1 pc.) Tape Measure (1 pc) ASSEMBLY/PARTS DIAGRAM DiscountRamps.com • 1-888-651-3431 Rev. 062118 Page 3...
- Page 4 ASSEMBLY PROCEDURES Step 1: Support Arm Assembly ① ATTENTION! All M10x40 ② Connect Upper Connecting ③ Connect Driver Side Front Button Head Screws (26), require Plate (5), on Support Bar (2), and Leg Rail (3), & Lower Connecting a drop of thread glue (20), and secure with M10x40 Button Plate (6), to bottom of support installation/tightening within 2...
- Page 5 STEP 2. Crossbar Installation ① Attach Spring Washers (23), ② Support arms are now ready ③ Slide the center channel of Flat Washers (22), to M10x25 for crossbar installation. the Crossbar (1), onto the M10 Button Head Screws (21), and Nuts (24), at the top of the secure to upper connecting plate support arms as shown.
- Page 6 STEP 3. Installation ① Attach an M10x75 Hex Head ② Position C-Clamp (7), close to ③ Tighten the M10x75 Hex Bolt (28), and M10 Hex Nut (29), the base of the support arm so Head Bolt (28), and the M10 Hex to each of the eight C-Clamps (7), that the tongue on the upper jaw Nut (29), until entire assembly is...
- Page 7 STEP 4. Side Rail Assembly and Installation ① Attach plastic sleeve (12), to ② Attach Connecting Plate (16), ③ Attach Splint (14), and end of Side Rail (9), as shown. to end of Side Rail (9), using Thread Block (13), to one end of M10x16 Button Head Screw (25), Side Rail (9), using M10x16 Spring Washer (23), and Washer...
- Page 8 ① Install all six Crossbar End Caps (19), and ② Install the four press-fit Side Rail End Caps as secure in place using ST4.8×16 Phillips Head shown. Self-Tapping Screws (32), as shown. ③ Check to make sure all hardware has been securely tightened. Depending on the configuration of your truck, your installed rack should resemble this diagram.
- Page 9 Product Warranty and Liability GENERAL PRODUCT WARRANTY: Products purchased from the Authorized Dealer (original place of purchase) or Merchant (“Dealer”) will be free of defects in material and workmanship at the time of receipt, and will meet the specifications stated at the place of purchase transaction or online at the Dealer’s website, under normal use and service when correctly installed, operated and maintained.
